Transaxle Oil Replacement
TRANSAXLE OIL REPLACEMENT

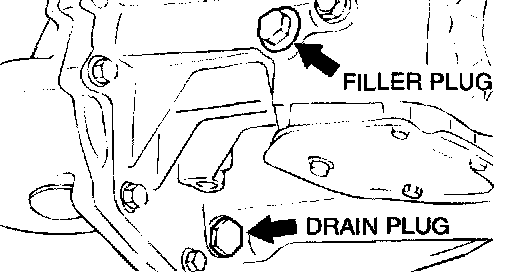

1. Remove the filler plug.
2. Remove the drain plug and drain the oil.
3. Tighten the drain plug to the specified torque.
Tightening torque: 32 ± 2 Nm (23 ± 2 ft. lbs.)
4. Fill with gear oil API classification GL-4 SAE 75W-85W or 75W-90 until the level comes to the lower portion of filler plug hole.
Quantity: 2.8 dm3 (2.9 quart)
5. Tighten the filler plug to the specified torque.
Tightening torque: 32 ± 2 Nm (23 ± 2 ft. lbs.)
