Transfer Oil Replacement
TRANSFER OIL REPLACEMENT

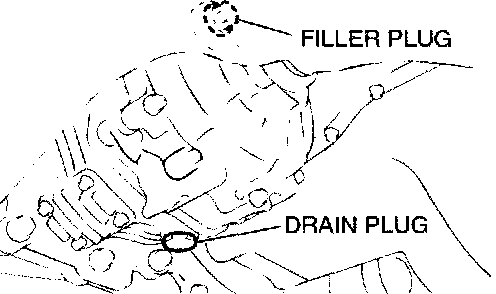

1. Remove the filler plug.
2. Remove the drain plug and drain the oil.
3. Tighten the drain plug to the specified torque.
Tightening torque: 32 ± 2 Nm (23 ± 2 ft. lbs.)
4. Fill with hypoid gear oil API classification GL-5 SAE90 until the level comes to the lower portion of filler plug hole.
Quantity: 0.55 dm3 (0.58 quart)
5. Tighten the filler plug to the specified torque.
Tightening torque: 32 ± 2 Nm (23 ± 2 ft. lbs.)
