How to Check ECUs

HOW TO CHECK ECUS
1. Use the scan tool and the SWS monitor kit to check ECUs. (Refer to MUT-II Reference Manual or MUT-III User's Manual)
2. The following ECUs can be checked by using the scan tool and the SWS monitor kit.

NOTE: The "ECU COMM Check" function checks communication status of ECUs "NG" does not always mean ECU malfunction. If a malfunction is found by the "ECU COMM Check", proceed to "Symptom Procedure".

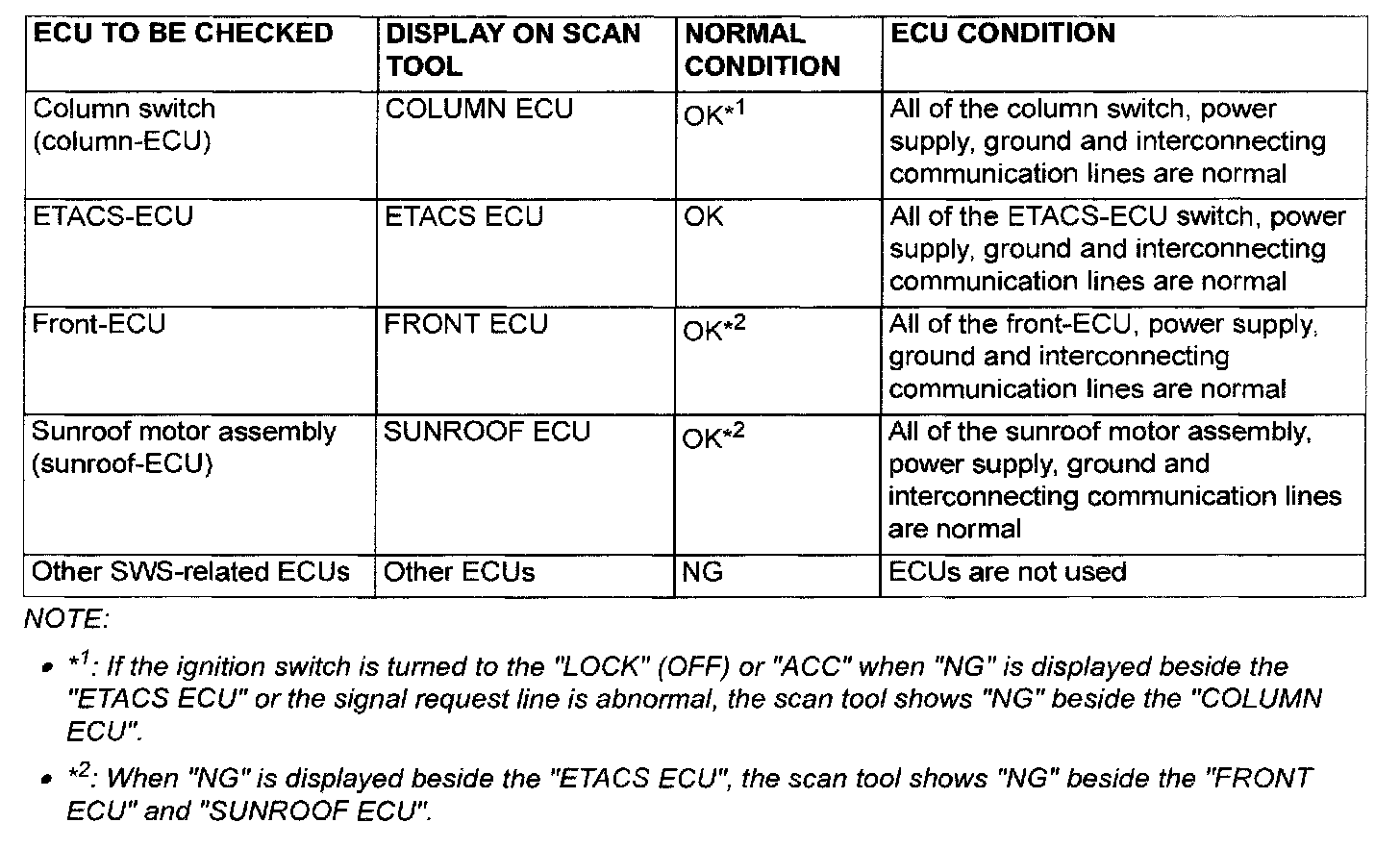

SWS monitor kit-compatible ECUs and their conditions
