Circuit Test

MAGNETIC SWITCH

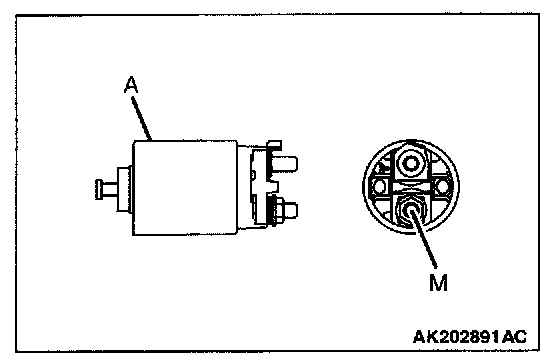

1. Coil open circuit test
- Check that there is continuity between the M terminal and body A.
- If there is no continuity, replace the magnetic switch.

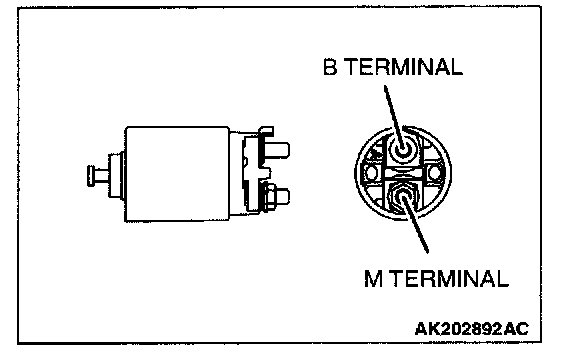

2. Contact fusion check
- Check that there is no continuity between the B terminal and M terminal.
- If there is continuity, replace the magnetic switch.

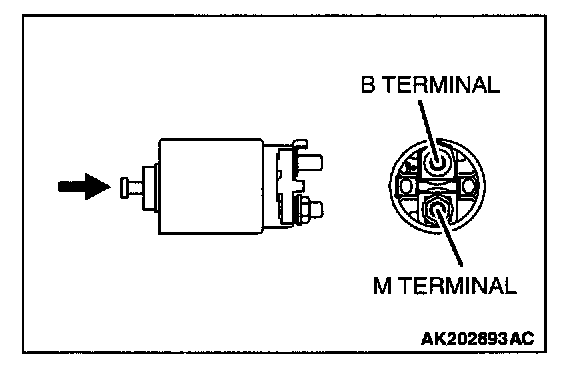

3. Switch contact check
- Push the indicated end of the magnetic switch with a strong force to close the internal contacts. Without releasing the switch end, check that there is continuity between the B terminal and M terminal.
- If there is no continuity, replace the magnetic switch.
