Checking Fuses

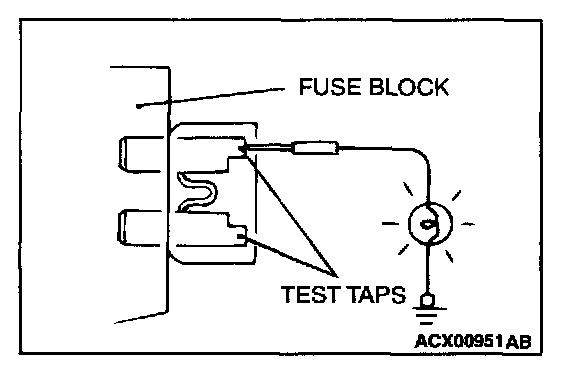

CHECKING FUSESA blade type fuse has test taps provided to allow checking of the fuse itself without removing it from the
fuse block. The fuse is okay if the test light comes on when its one lead is connected to the test taps (one at a time) and the other lead is grounded. Remember to turn the
ignition switch to ON to ensure all circuits are live.
