Windshield Wiper

WINDSHIELD WIPER

REMOVAL AND INSTALLATION

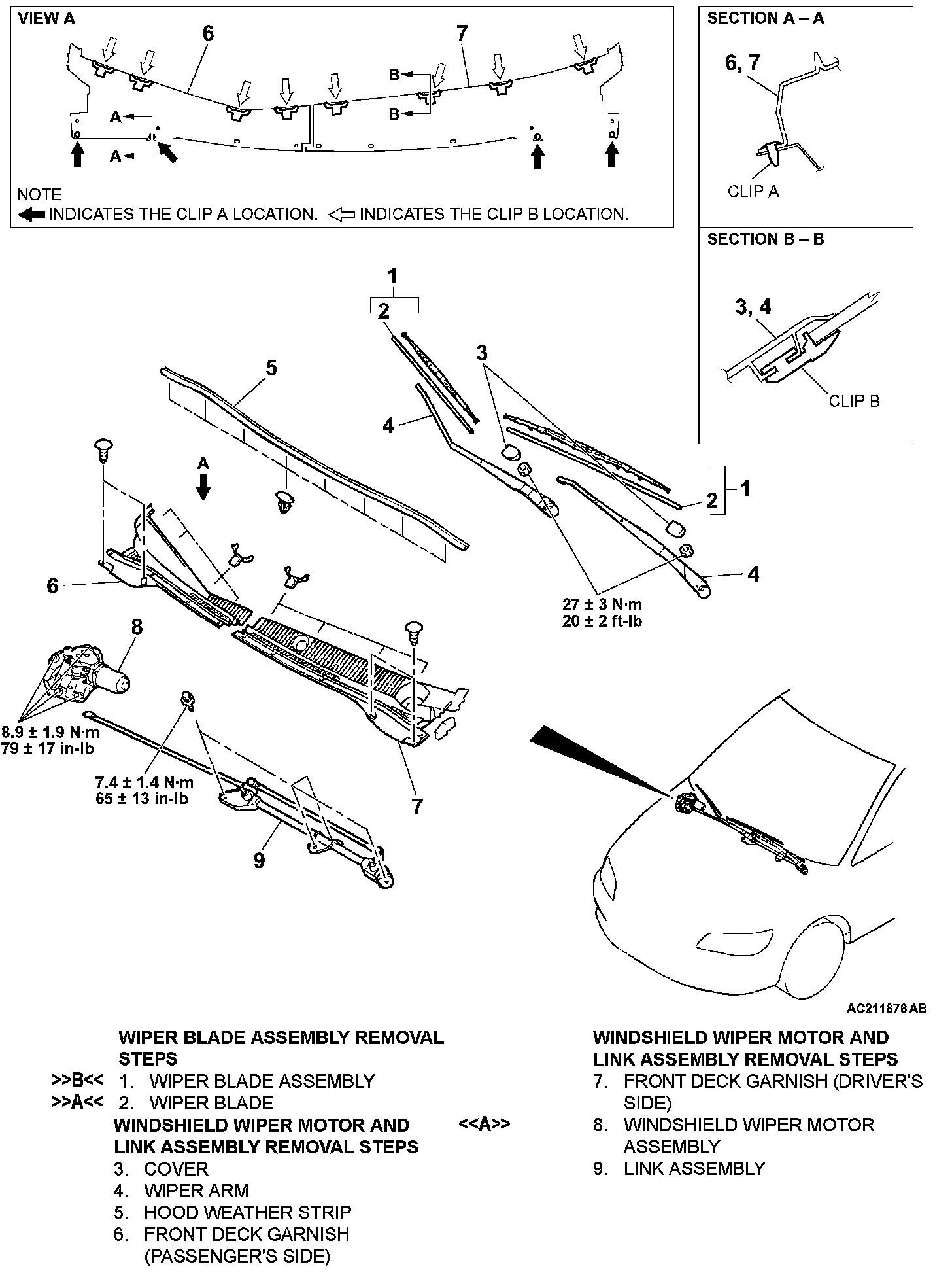

Removal Steps 1-9:






NOTE: For removal and installation of the wiper and washer switch, refer to Chassis Electrical, Column switch.

REMOVAL SERVICE POINT

[[A]] WINDSHIELD WIPER MOTOR ASSEMBLY REMOVAL






1. Remove the windshield wiper motor assembly mounting bolt.

CAUTION: Be careful not to damage the windshield glass when the windshield wiper motor assembly is removed.

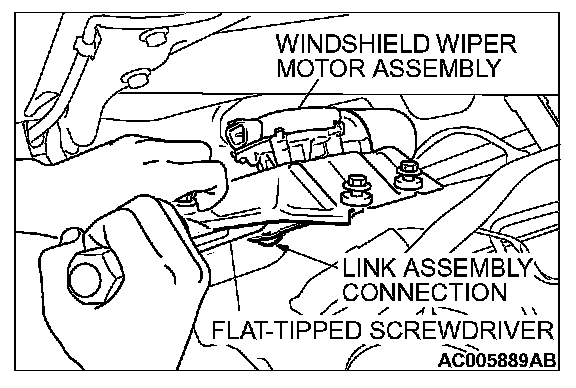

2. Use the fiat-tipped screwdriver to disengage the link between the windshield wiper motor assembly and the link assembly to remove the windshield wiper motor assembly.

INSTALLATION SERVICE POINTS

]]A[[ WIPER BLADE INSTALLATION

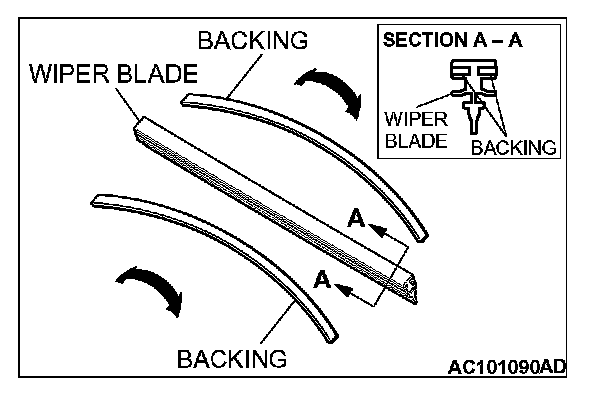

CAUTION: Ensure that the backings are bent toward the shown direction, and then install the backings to the wiper blade.

]]B[[ WIPER BLADE ASSEMBLY INSTALLATION

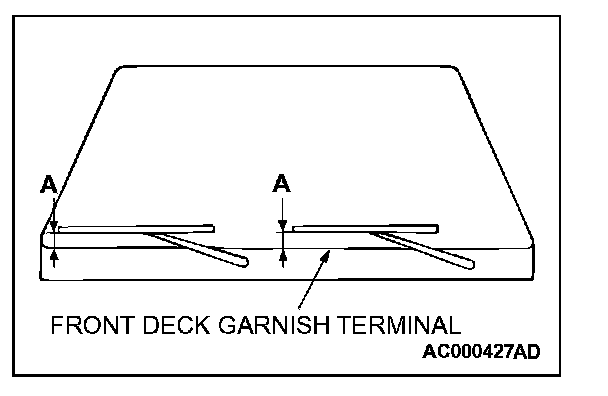

Install the wiper blade at the specified position (standard value).

Standard value: (A) 34 ± 5 mm (1.3 ± 0.20 inch)
