Windshield Washer Switch: Testing and Inspection
COLUMN SWITCH CONTINUITY CHECK (AT SWITCH BODY) 1.
Remove the lighting switch and the wiper/washer switch.
2.

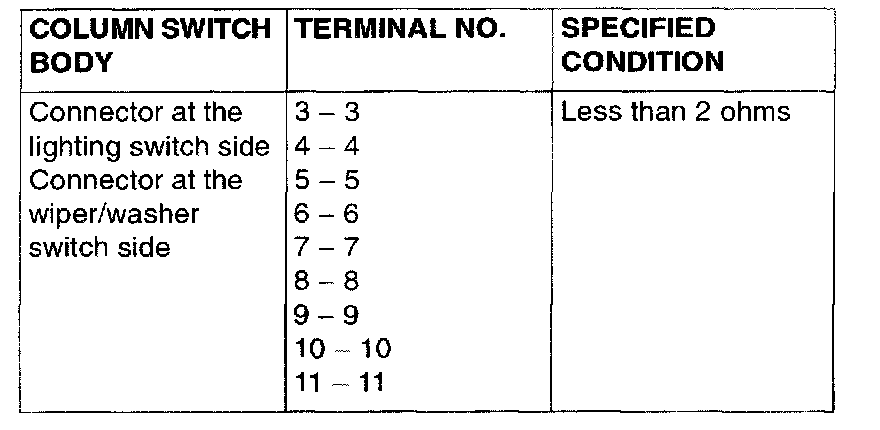

Among individual connectors of the column switch body remaining in the steering column, check for continuity between same number terminals (No.3-11).
