Drum Brake System

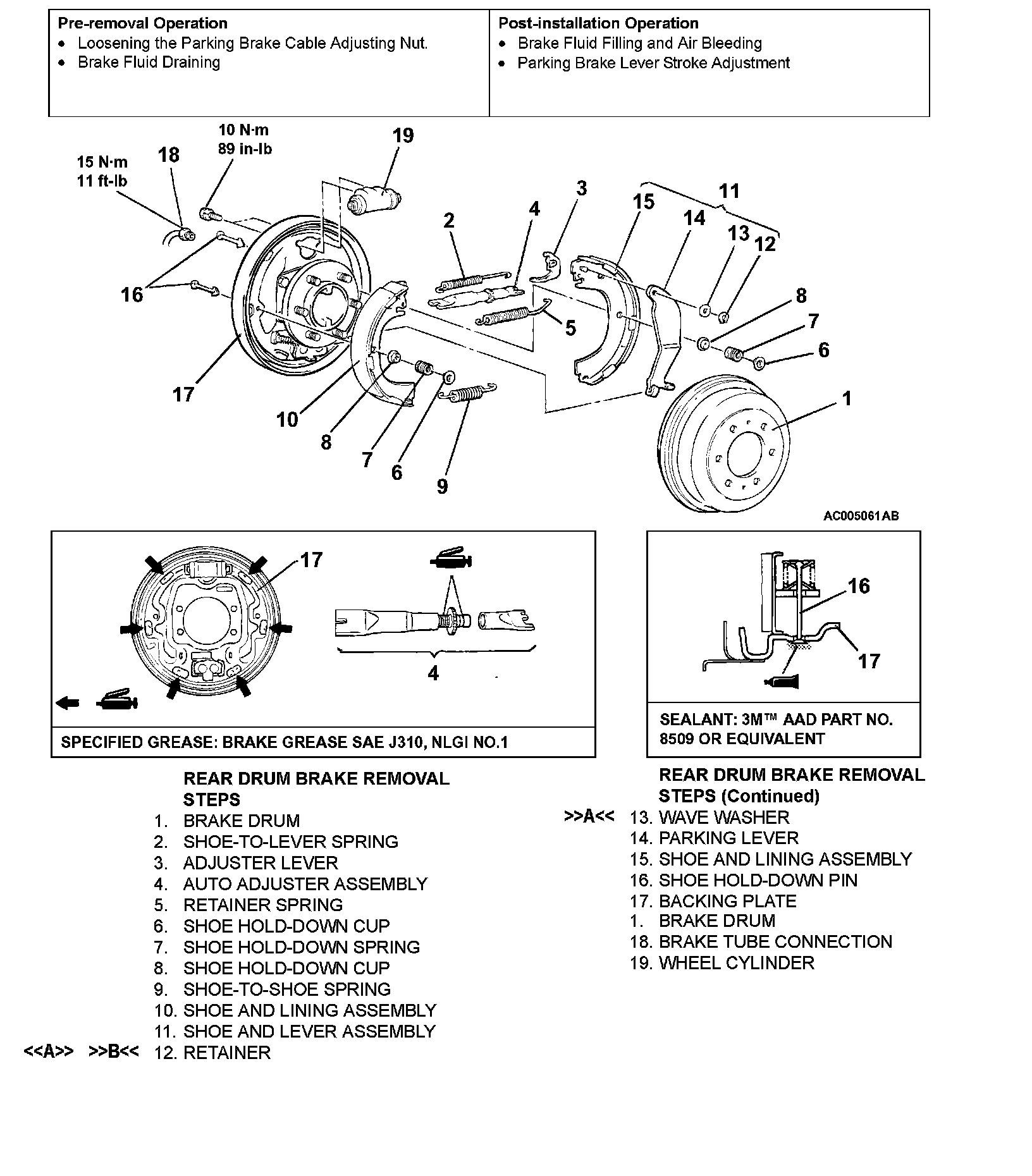

REAR DRUM BRAKE REPLACEMENT W/ RELATED COMPONENTS

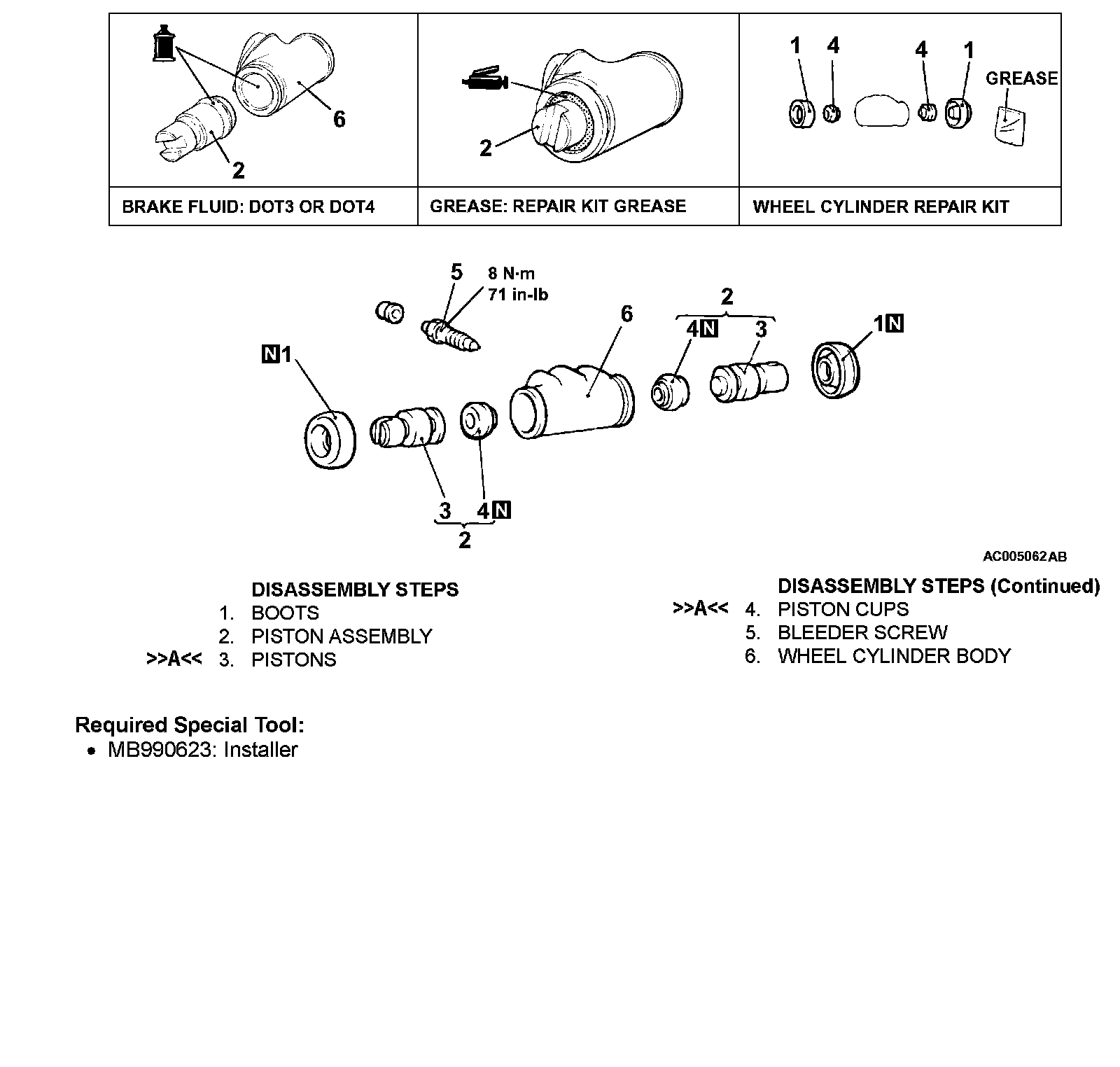

WHEEL CYLINDER DISASSEMBLY AND ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
