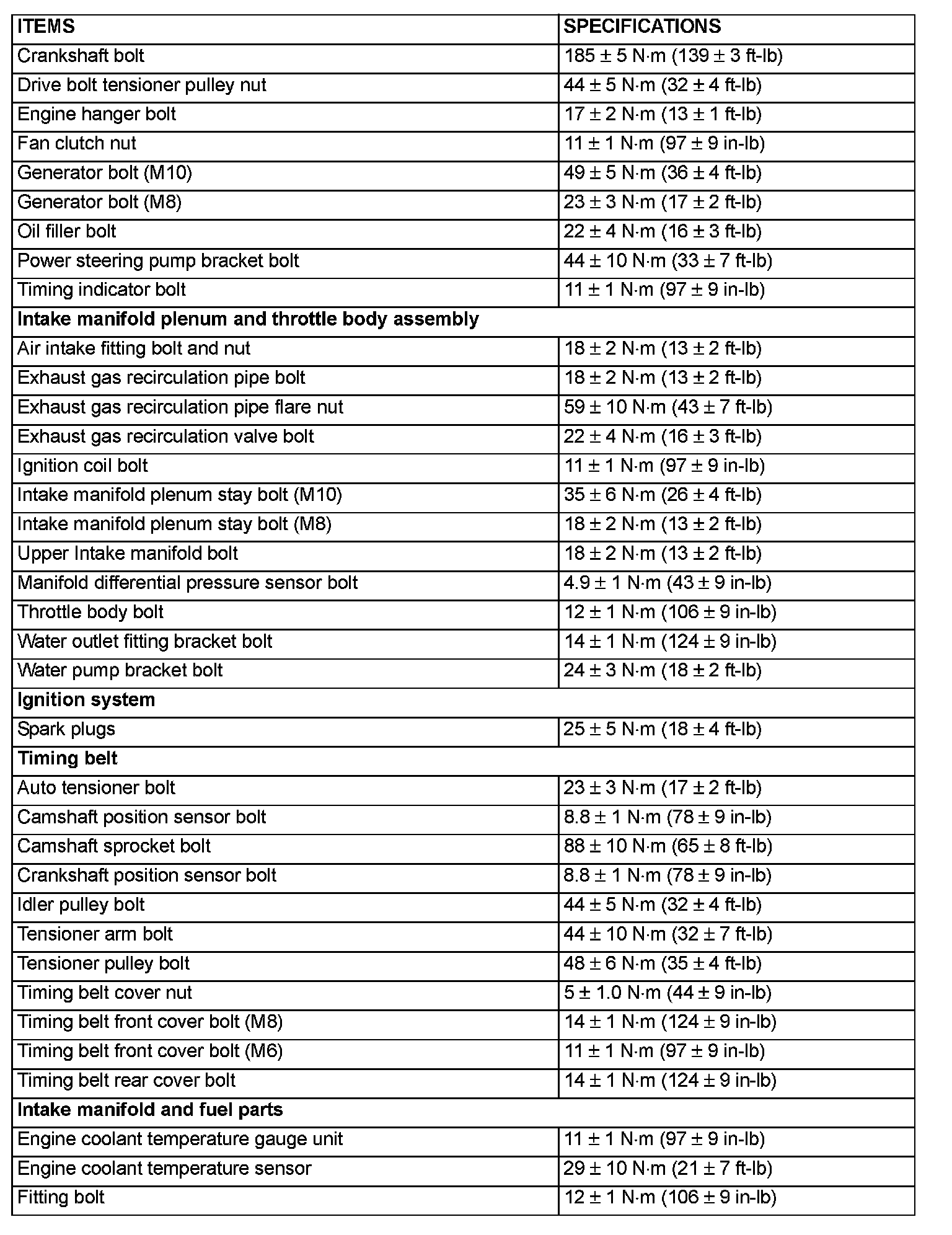

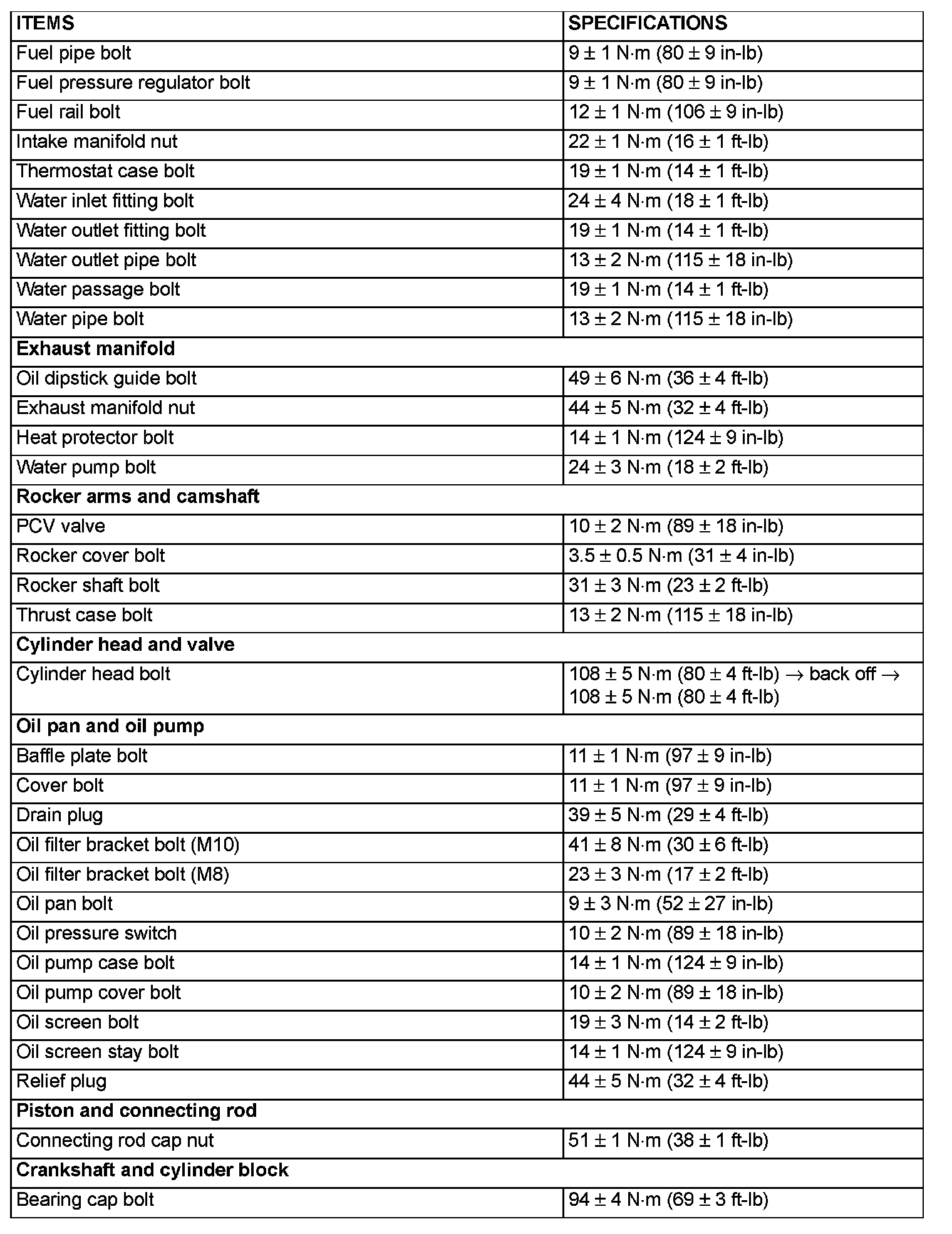

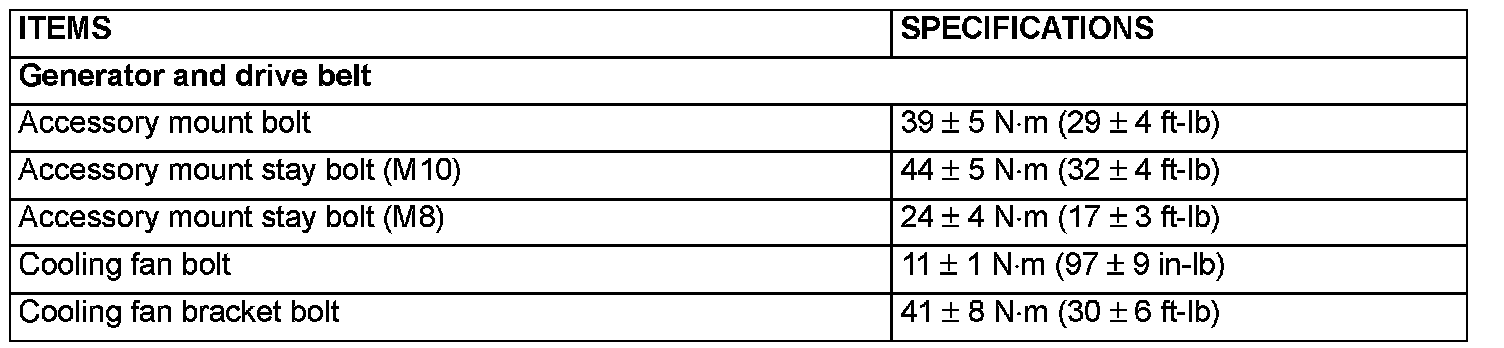

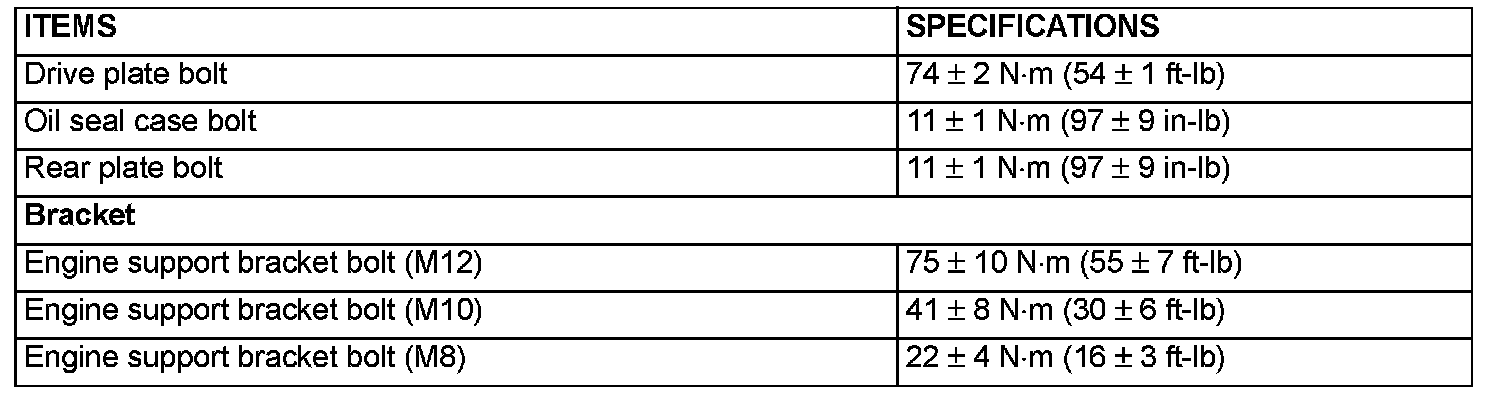

Torque Specifications

Part 3 Of 6:




Part 4 Of 6:




Part 5 Of 6:




Part 6 Of 6:





FASTENER TIGHTENING SPECIFICATIONS
