Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2003
>>
Montero Sport V6-3.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Brake Master Cylinder
>>
Basic Brake System
Basic Brake System
MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

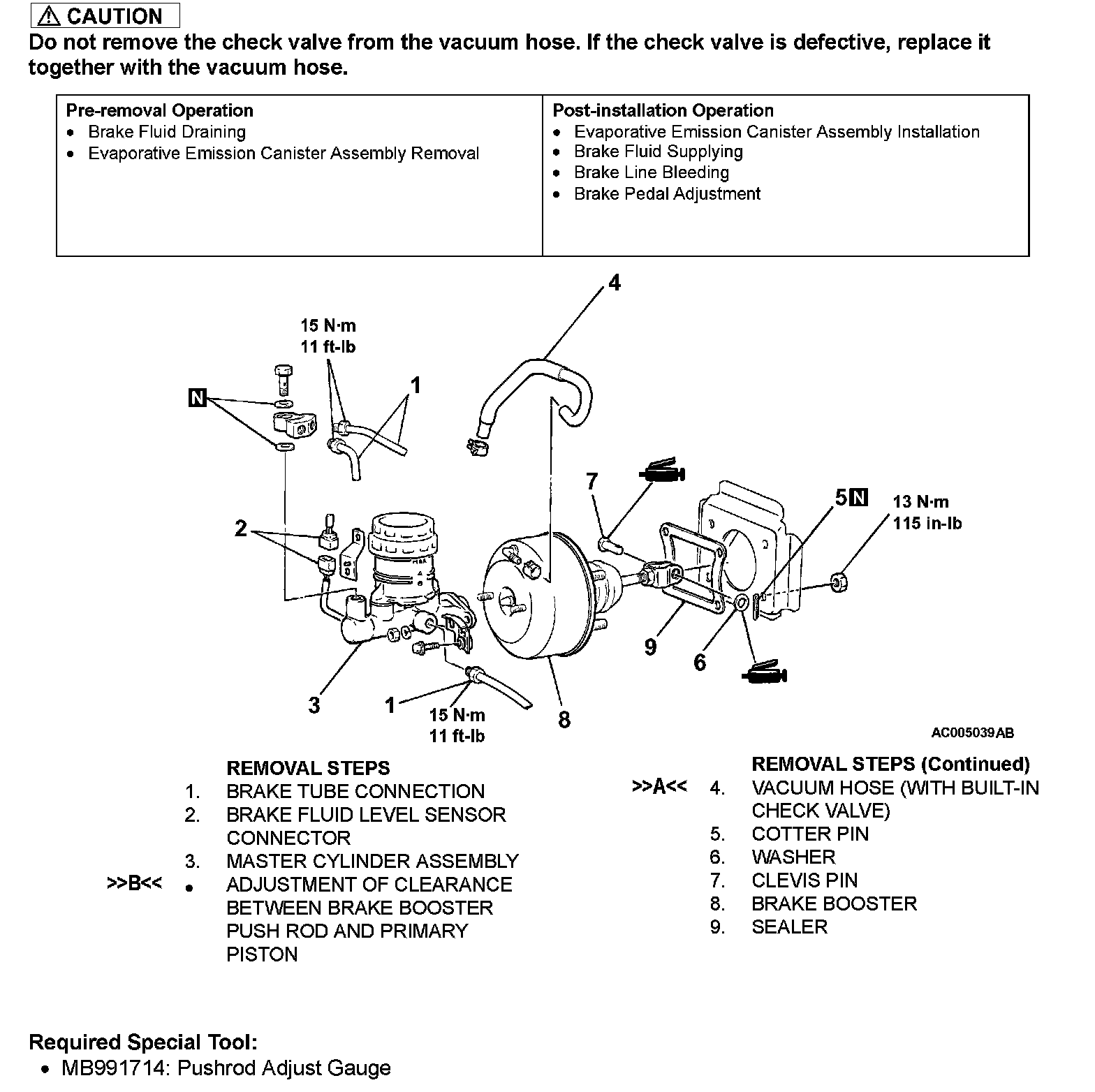

REMOVAL AND INSTALLATION

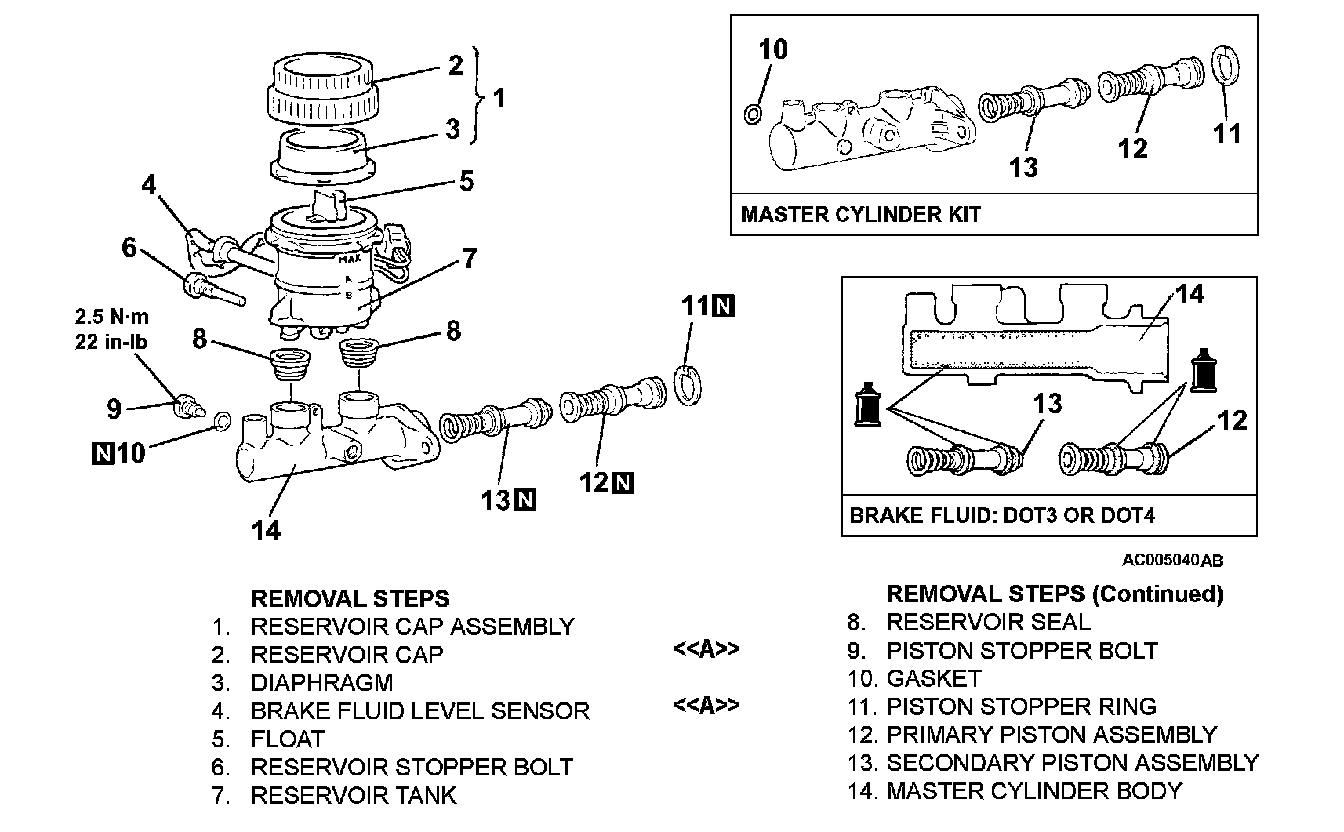

DISASSEMBLY AND ASSEMBLY
