Home >> Mitsubishi >> 2003 >> Montero Sport V6-3.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Differential Assembly >> Differential Mount

Differential Mount

Part 1 Of 2:

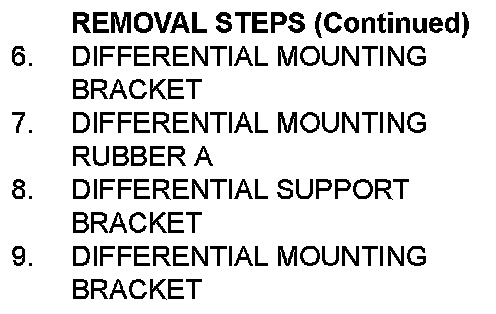

Part 2 Of 2:

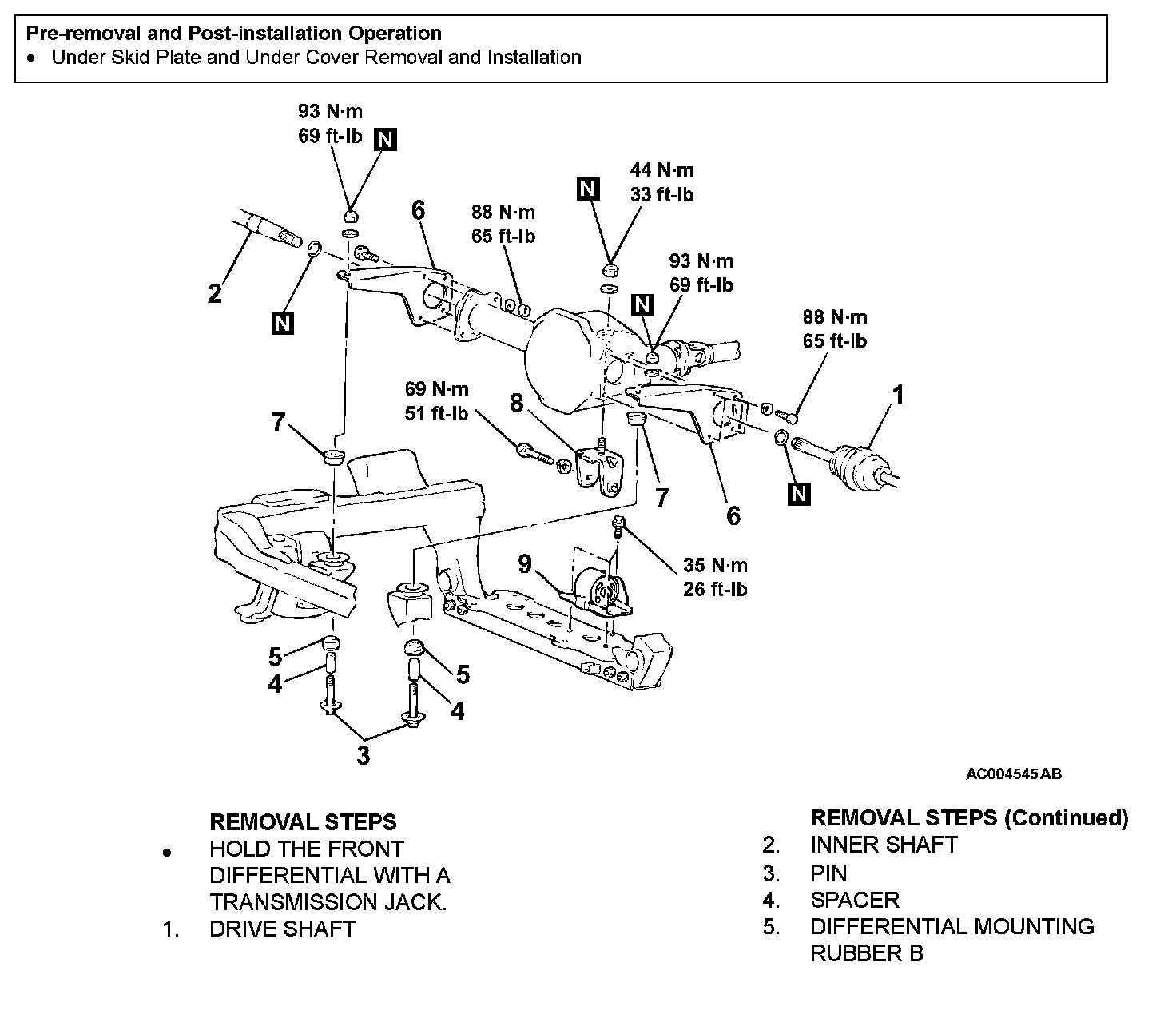

FRONT DIFFERENTIAL MOUNTING REPLACEMENT W/ RELATED COMPONENTS
