Home >> Mitsubishi >> 2003 >> Montero Sport V6-3.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Disc Brake System >> Rear

Rear

REAR DISC BRAKE ASSEMBLY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

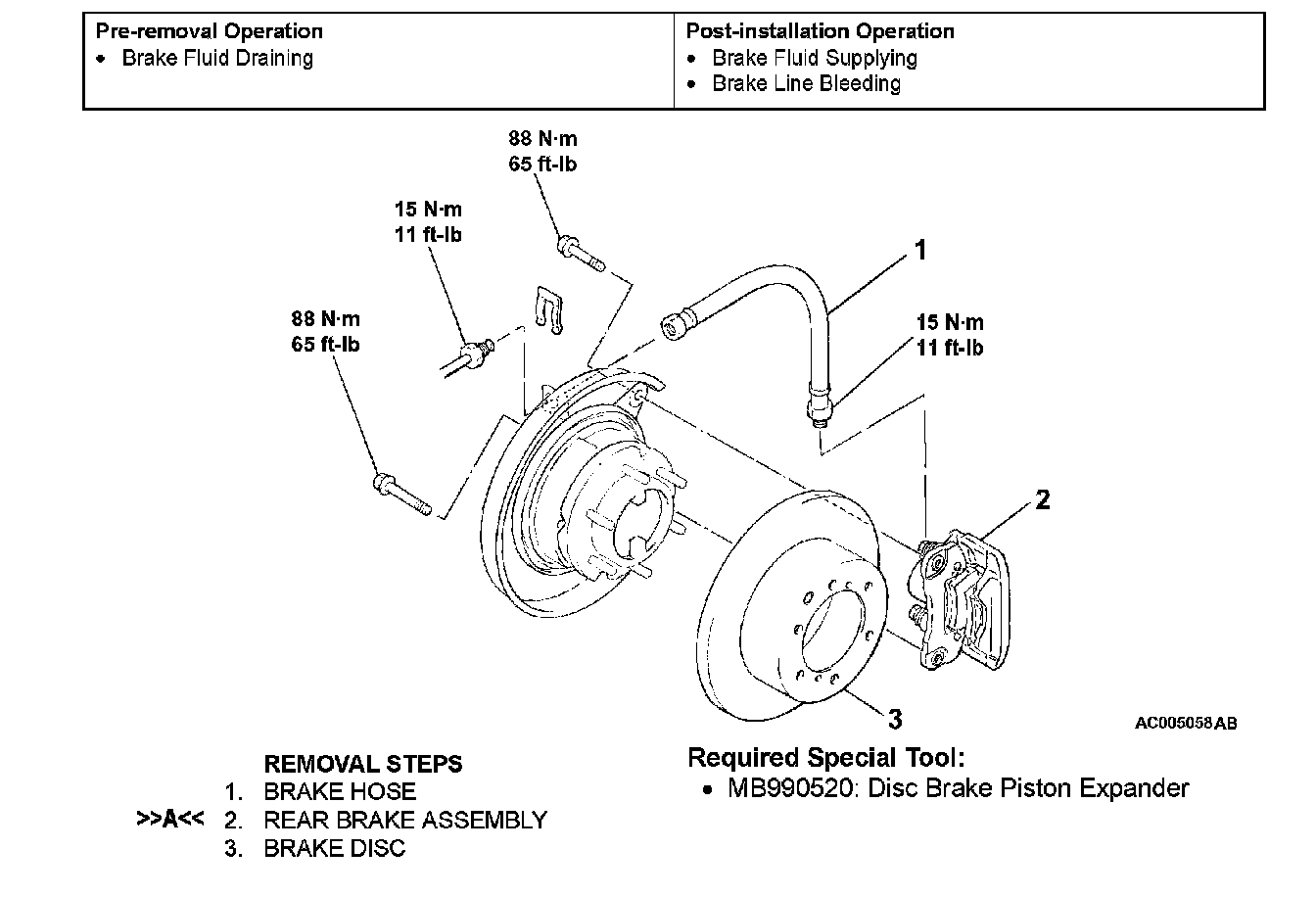

Part 1 Of 2:

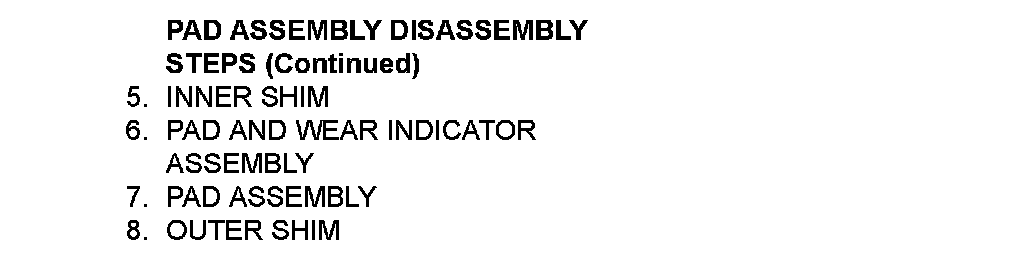

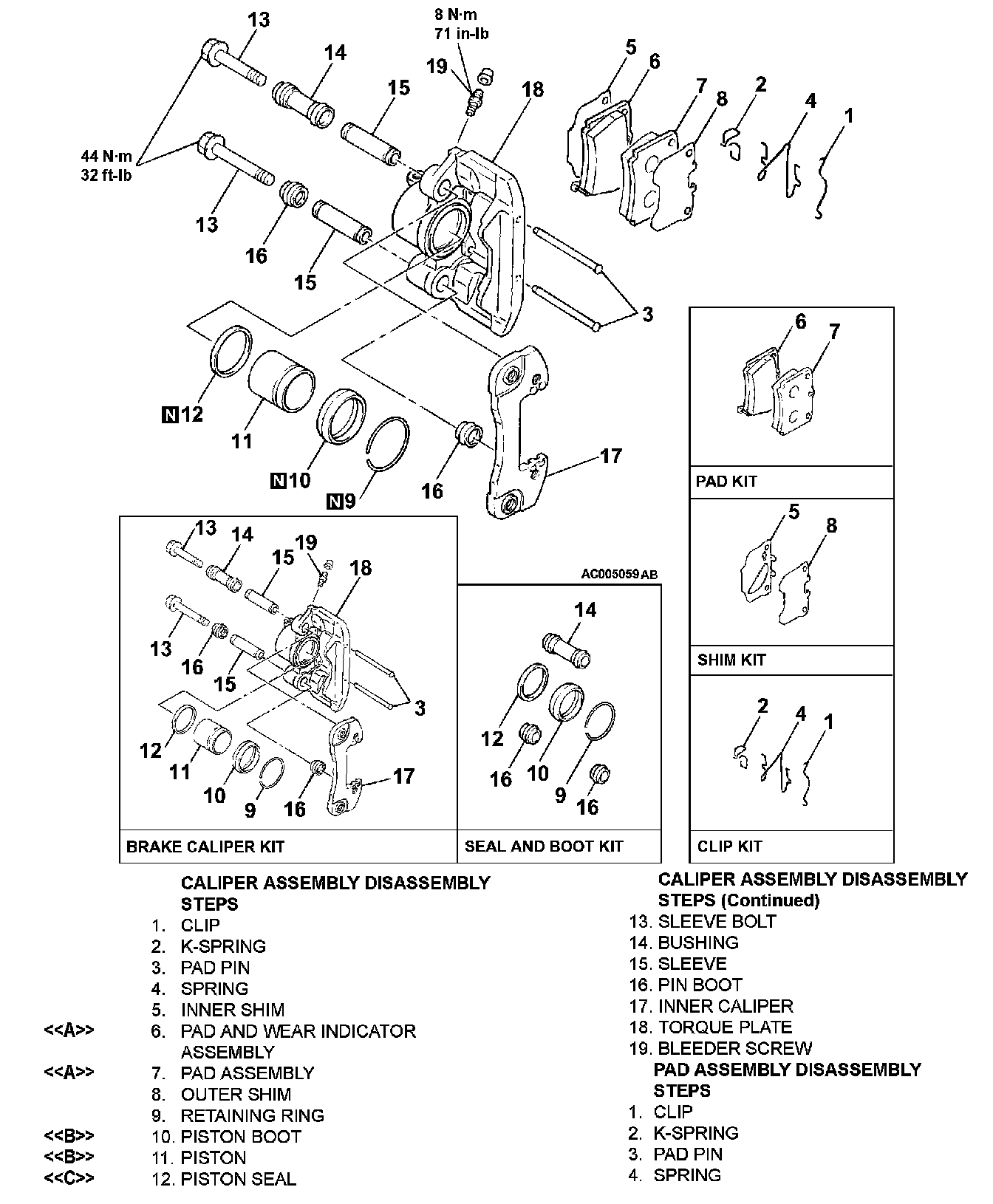

Part 2 Of 2:
