Home >> Mitsubishi >> 2003 >> Montero Sport V6-3.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Oil Pan, Engine

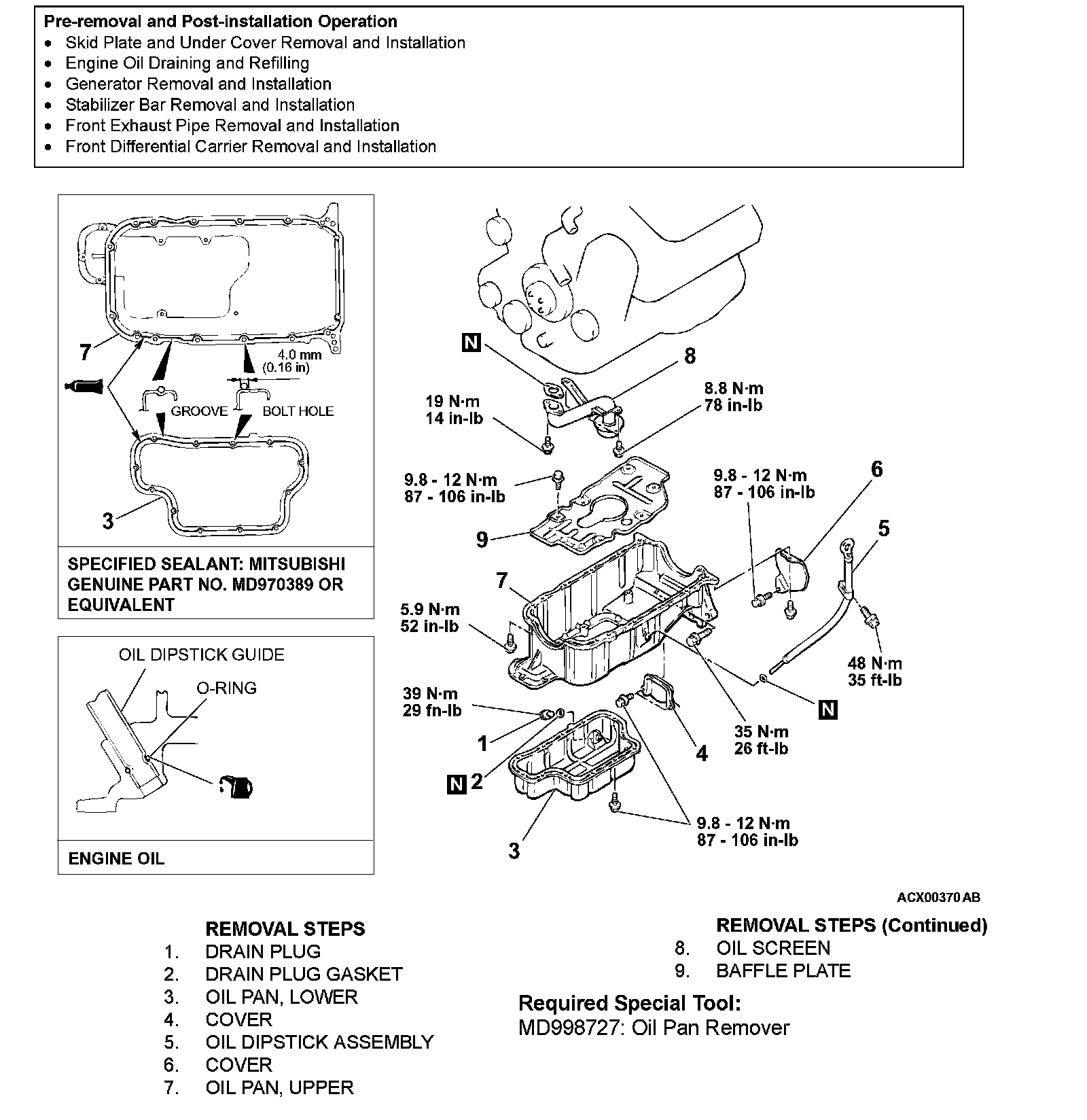

Oil Pan, Engine





OIL PAN AND OIL SCREEN REPLACEMENT W/ RELATED COMPONENTS
