Control Assembly: Service and Repair
HEATER CONTROL ASSEMBLY, A/C SWITCH AND INSIDE/OUTSIDE CHANGEOVER SWITCHHEATER CONTROL ASSEMBLY, A/C SWITCH AND INSIDE/OUTSIDE CHANGEOVER SWITCH:
INSTALLATION SERVICE POINT
>>A<< HEATER CONTROL ASSEMBLY INSTALLATION
Follow the steps below to install the air outlet changeover damper link cable and air mix damper lever cable.
1. Set the air outlet changeover control knob on the heater control assembly to the defroster position.

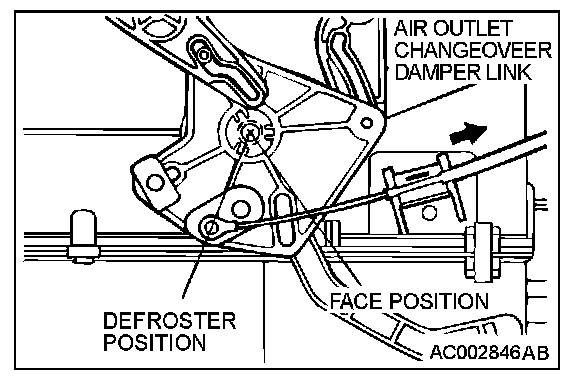

2. Set the air outlet changeover damper link of the heater unit to the defroster position as shown in the illustration, and then connect the cable to the link pin.
3. Push the outer cable in the arrow so that there is no looseness, and then secure it with clip.
4. Set the temperature control knob on the heater control assembly to the maximum hot position.

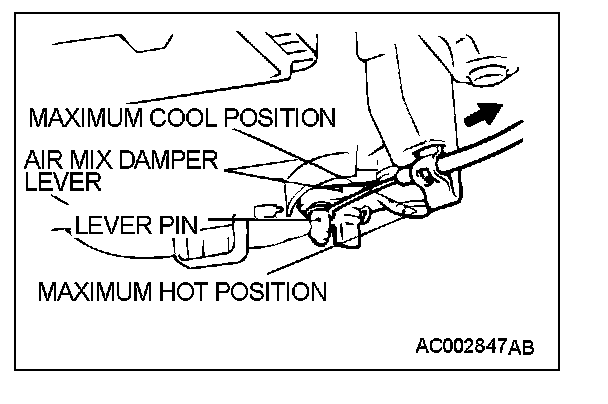

5. Set the air mix damper lever of the heater unit to the maximum hot position as shown in the illustration, and then connect the cable to the lever pin.
6. Push the outer cable in the direction of the arrow so that there is no looseness, and then secure it with clip.
7. After installation, ensure that each damper operates smoothly by operating the heater control assembly knob.
