Air Bag Control Module: Service and Repair

SRS CONTROL UNIT (SRS-ECU)

SRS Control Unit (SRS-ECU):

WARNING Never attempt to disassemble or repair the SRS-ECU. If faulty, replace it.
Do not drop or subject the SRS-ECU to impact or vibration. If denting, cracking, deformation, or rust are discovered in the SRS-ECU, replace it with a new SRS-ECU.
After deployment of an air bag, replace the SRS-ECU with a new one.
Never use an ohmmeter on or near the SRS-ECU, and use only the special test equipment.


REMOVAL SERVICE POINT







[[A]] NEGATIVE (-) BATTERY CABLE DISCONNECTION

DANGER: Wait at least 60 seconds after disconnecting the battery cable before doing any further work.

WARNING: Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING. Disconnect the negative (-) battery cable from the battery and tape the terminal to prevent accidental connection and deployment.

INSTALLATION SERVICE POINTS
]]A[[ SRS-ECU INSPECTION

WARNING: The SRS may not active if the SRS-ECU is not installed properly, which could result in serious injury or death to the vehicle's driver or front passenger.







]]B[[ POST-INSTALLATION INSPECTION
1. Reconnect the negative (-) battery cable.
2. Turn the ignition key to the "ON" position.

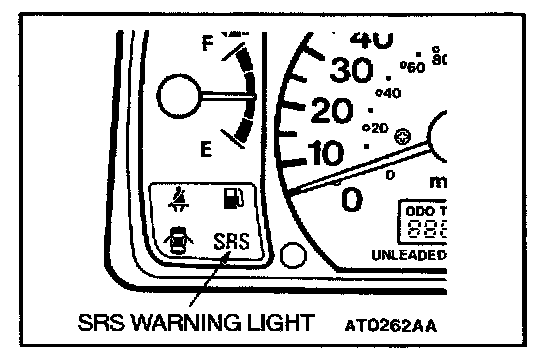

3. Does the "SRS" warning light illuminate for approximately 7 seconds, and then remain off for at least 5 seconds after turning "OFF?"
4. If yes, the SRS system is functioning properly. If no, consult Inspection Chart for DTC's.
