Control Assembly, HVAC
Control Assembly, HVAC

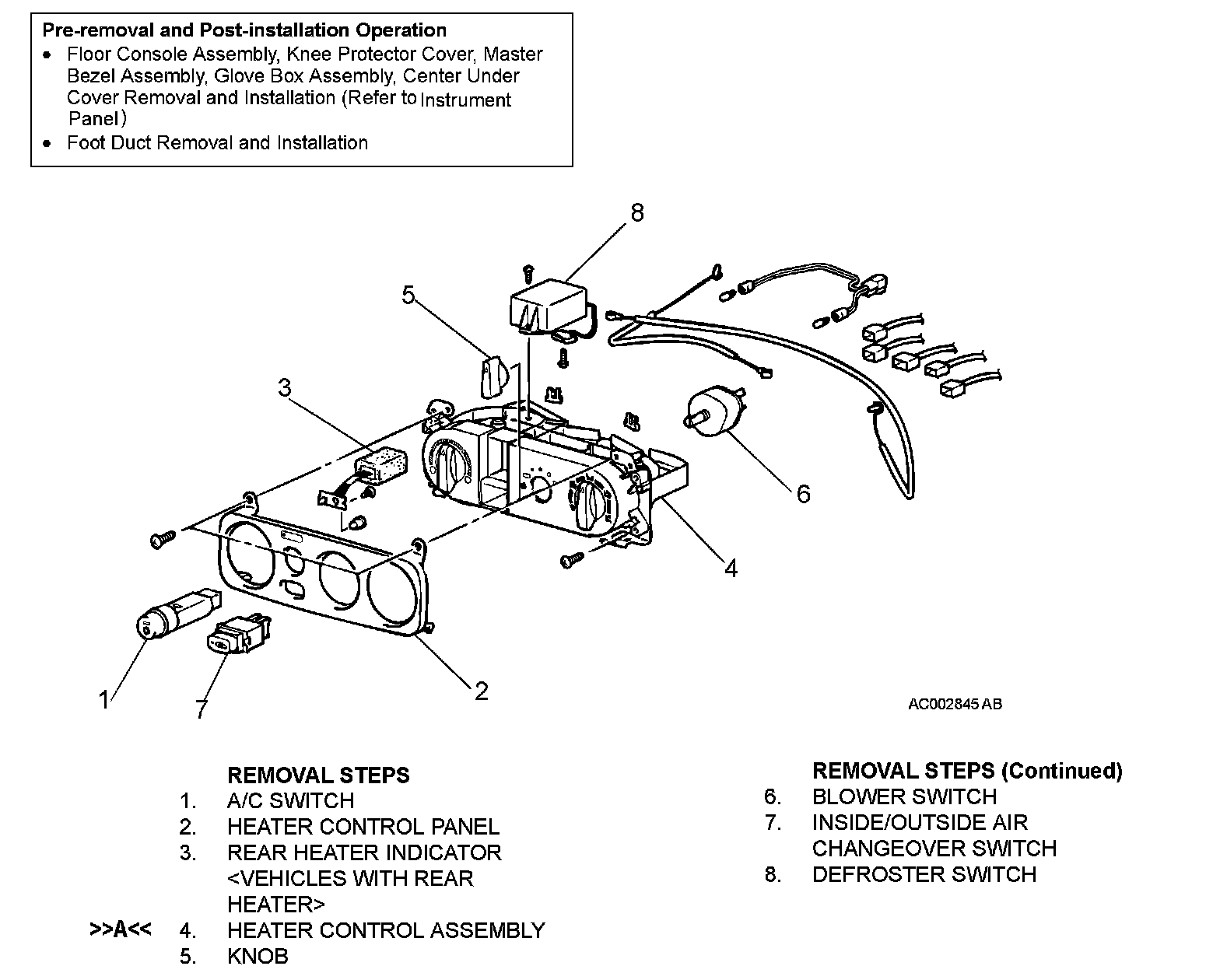

HEATER CONTROL ASSEMBLY, A/C SWITCH AND INSIDE/OUTSIDE CHANGEOVER SWITCH:
