Front Cross-Member: Service and Repair

Part 1 Of 2:

Part 2 Of 2:

REMOVAL AND INSTALLATION

CAUTION:
^ Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.
^ For vehicles with SRS, before removal of steering gear box, refer to Supplemental Restraint System (SRS), center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

Required Special Tools:
^ MB991454: Engine Hanger Balancer
^ MB991895: Engine Hanger

REMOVAL SERVICE POINT
[[A]] ENGINE MOUNT MOUNTING NUTS REMOVAL

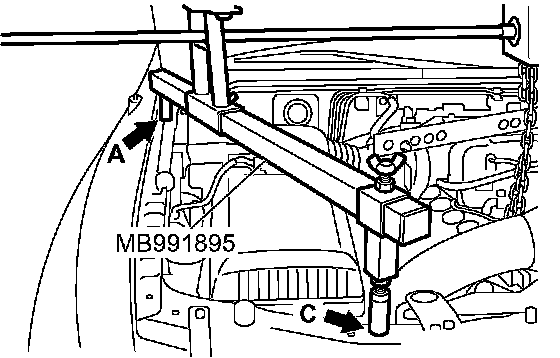

1. Install the bolt to the "C" part on the headlamp support panel.

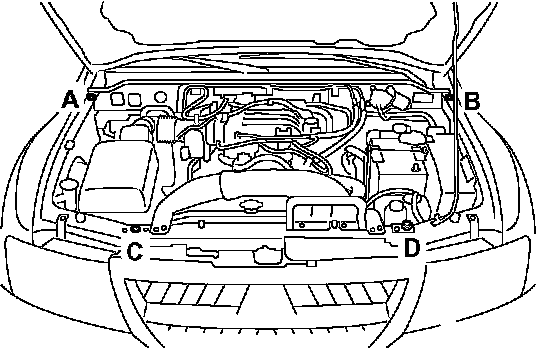

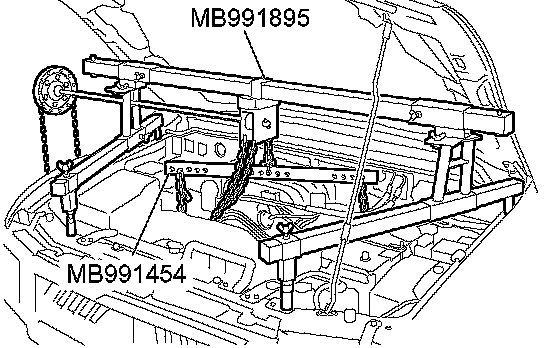

2. Set special tools MB991895 and MB991454 to the front fender mounting bolts (A and B) and the oil reservoir bracket mounting bolts (C and D). Then remove the engine mount mounting nuts while supporting the engine and transmission assembly.

[[B]] No.1 CROSSMEMBER ASSEMBLY REMOVAL

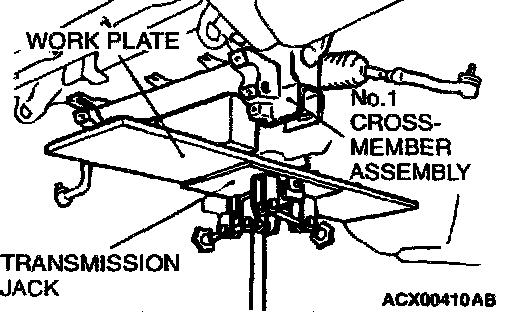

Use the transmission jack to support the No.1 crossmember and remove the front frame.
