Brake Fluid Level Sensor/Switch: Testing and Inspection

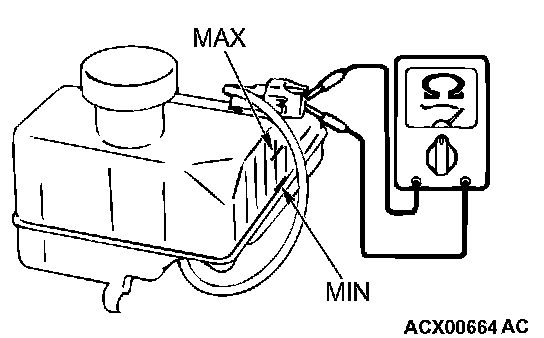

BRAKE FLUID LEVEL SWITCH CHECK





The brake fluid level switch is in good condition if there is no continuity when the float surface is above the "MIN" line and if there is continuity when the float surface is below the "MIN" line.
