Electronic Brake Control Module

HBB, EBD, ABS And M-ASTC Part 1:

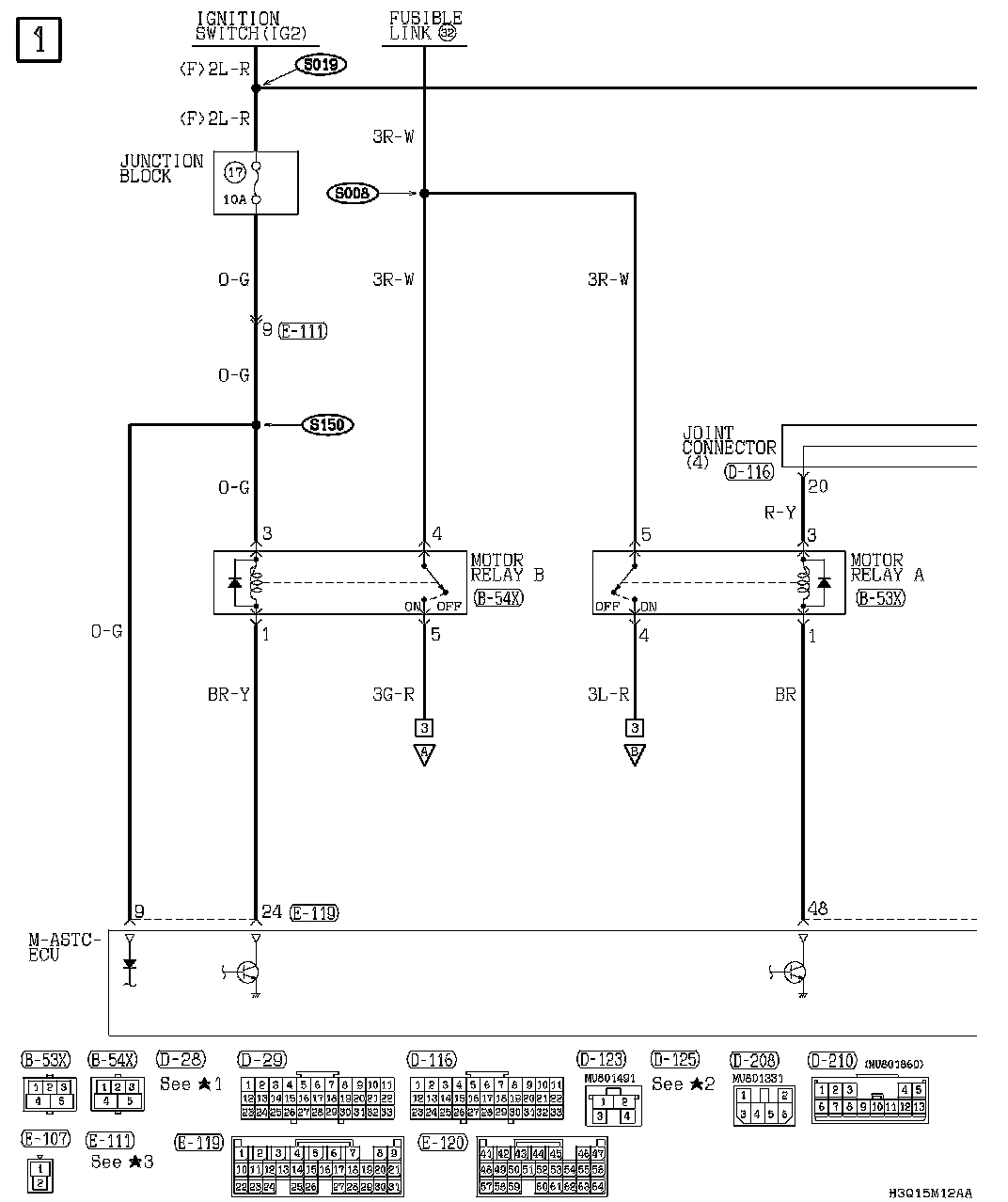

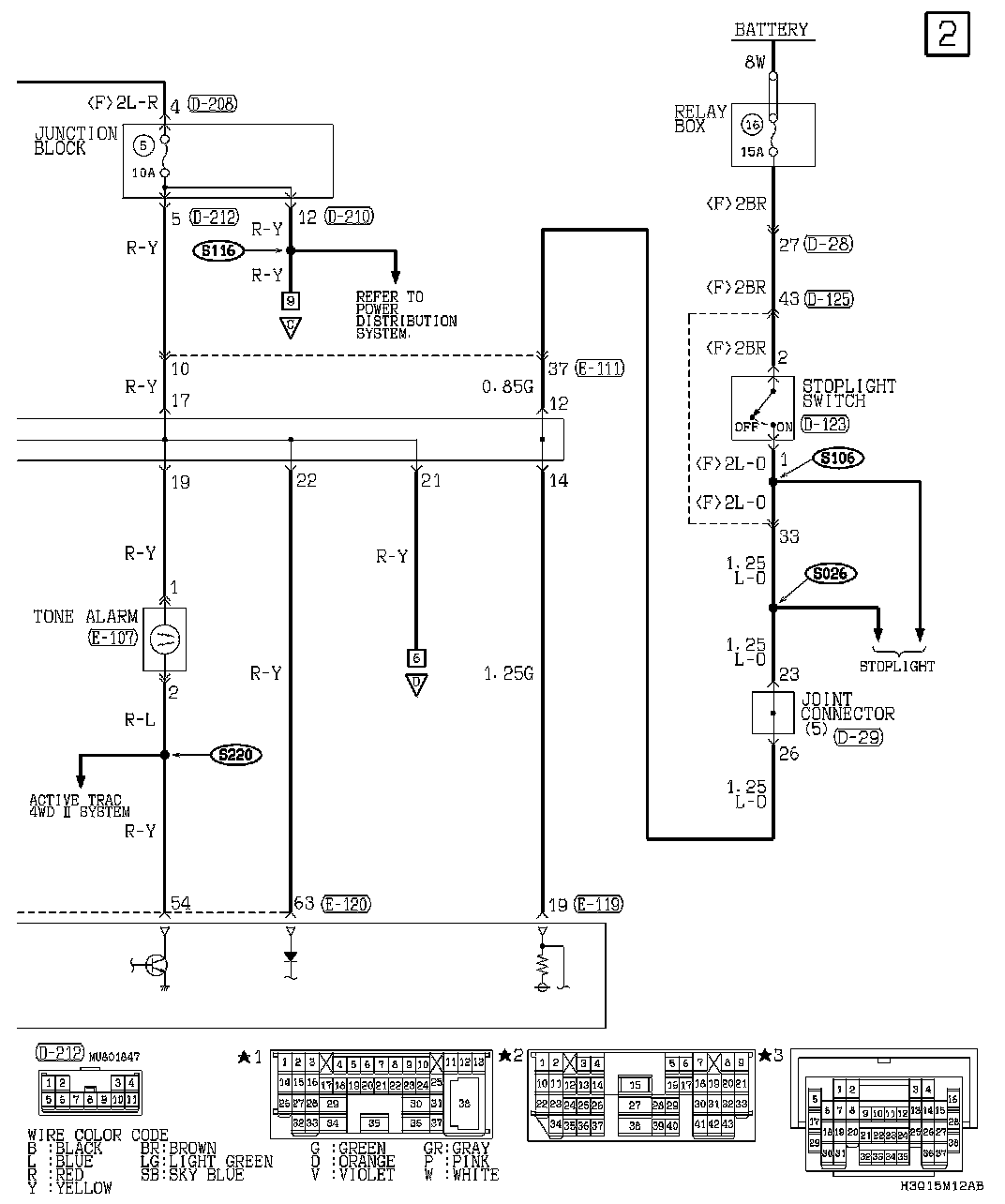

HBB, EBD, ABS And M-ASTC Part 2:

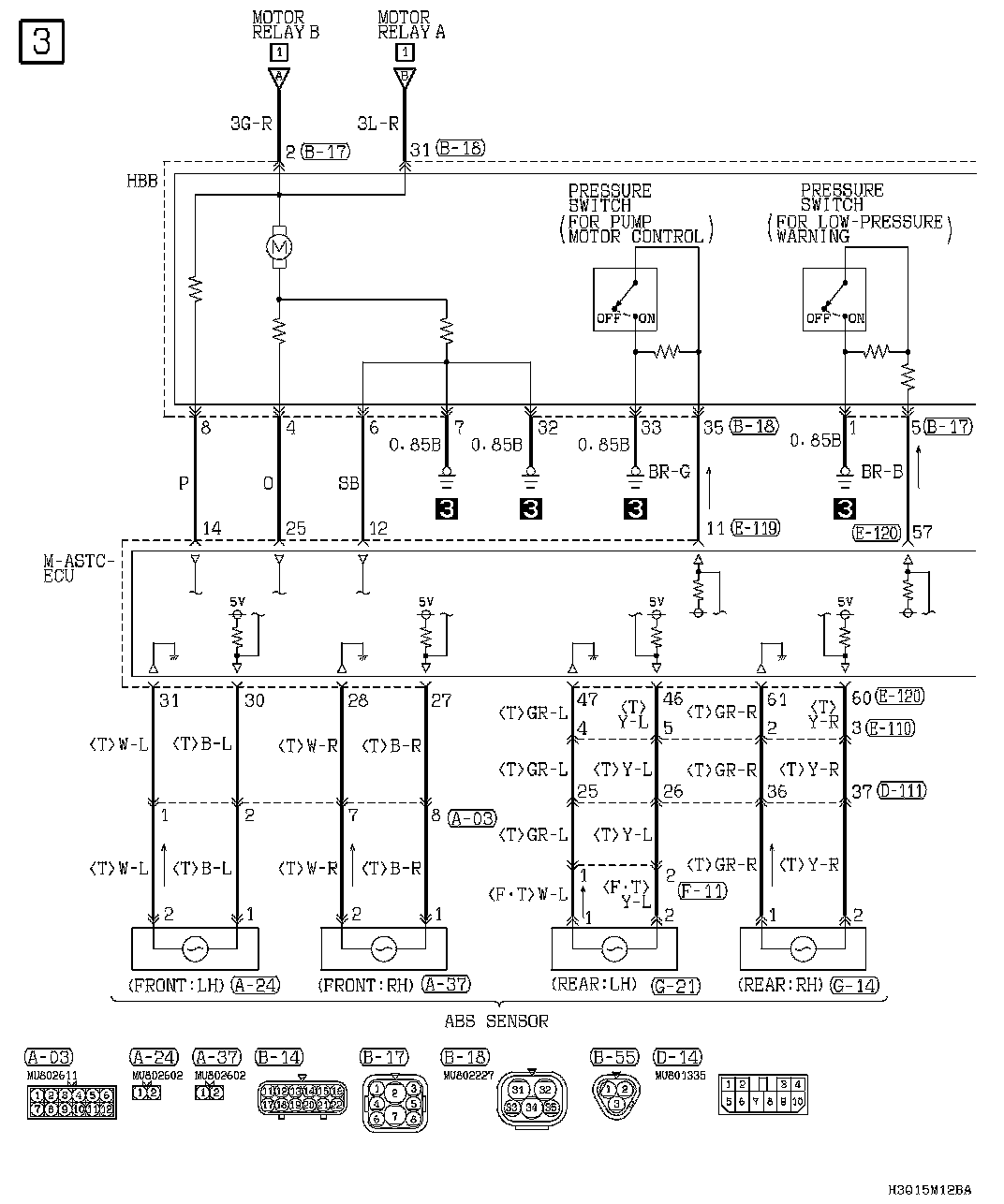

HBB, EBD, ABS And M-ASTC Part 3:

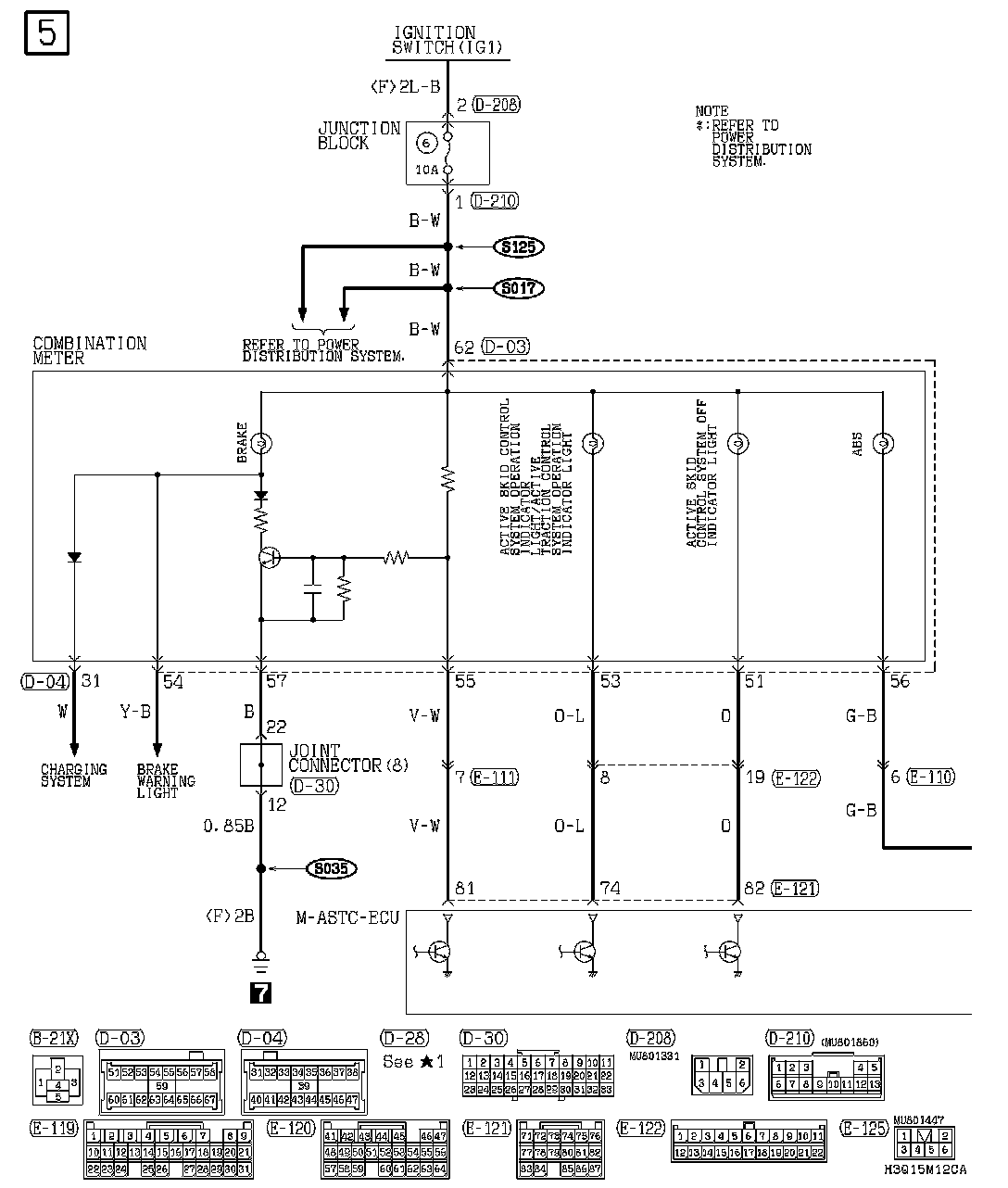

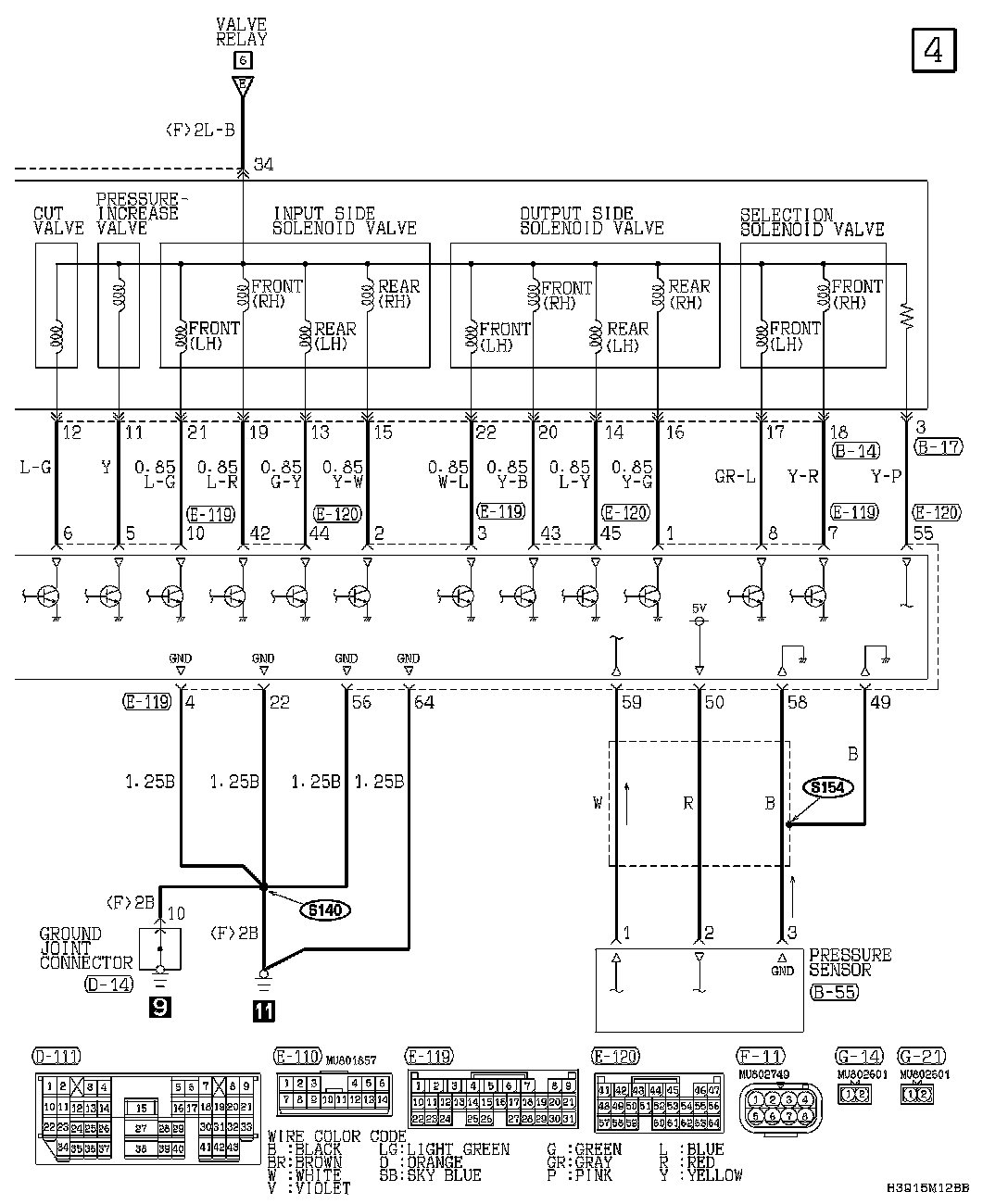

HBB, EBD, ABS And M-ASTC Part 4:

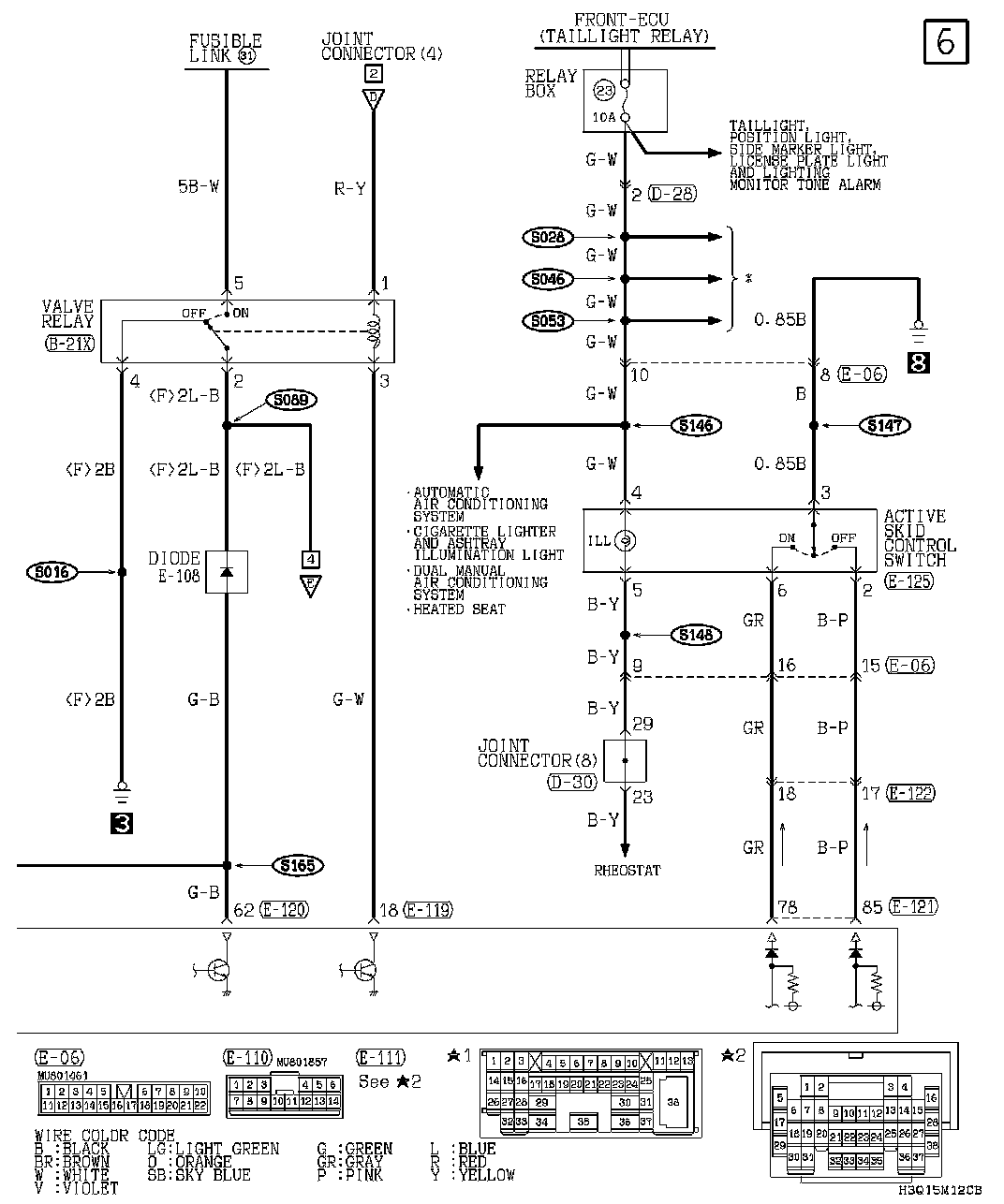

HBB, EBD, ABS And M-ASTC Part 5:

HBB, EBD, ABS And M-ASTC Part 6:

HBB, EBD, ABS And M-ASTC Part 7:

HBB, EBD, ABS And M-ASTC Part 8:

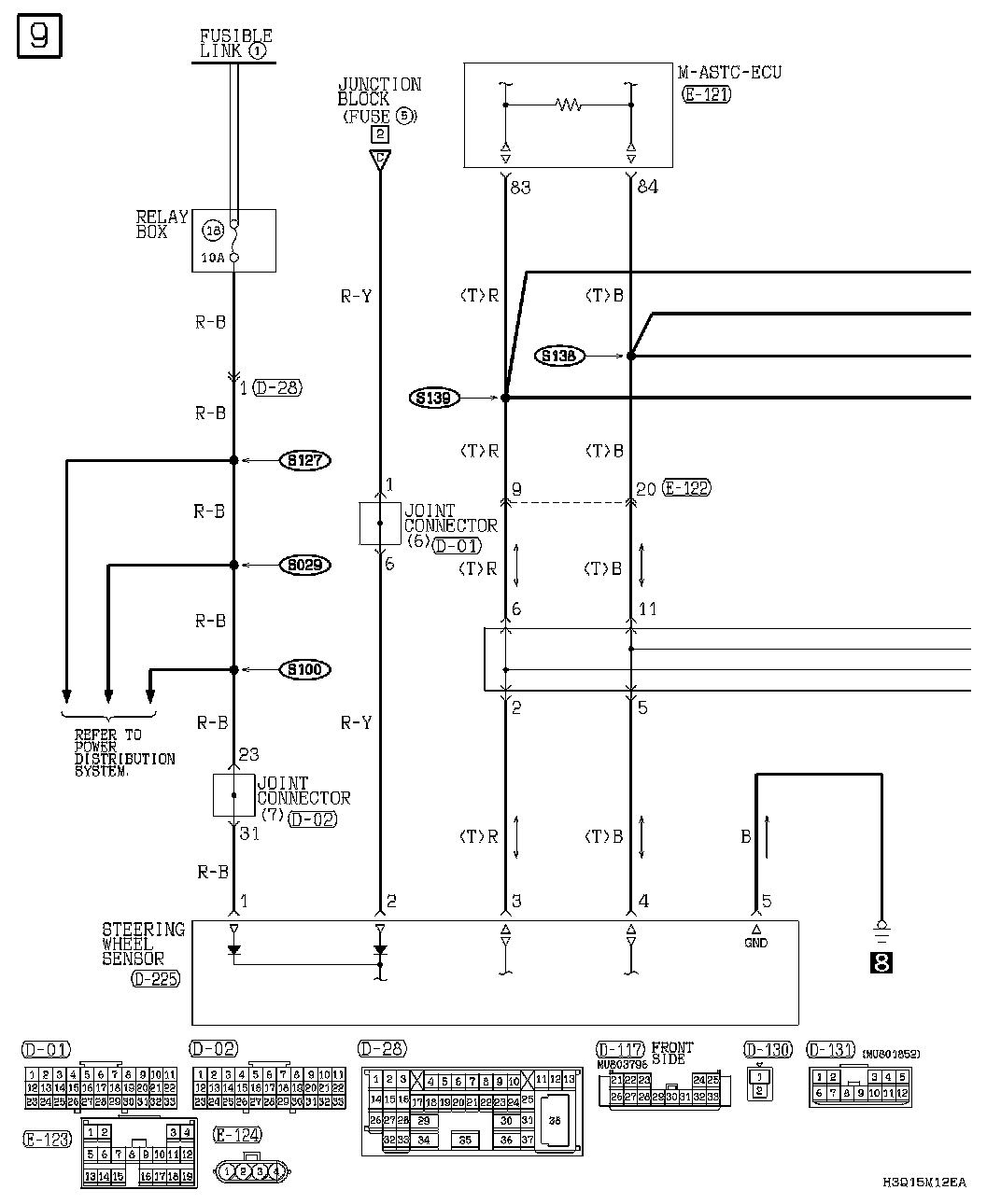

HBB, EBD, ABS And M-ASTC Part 9:

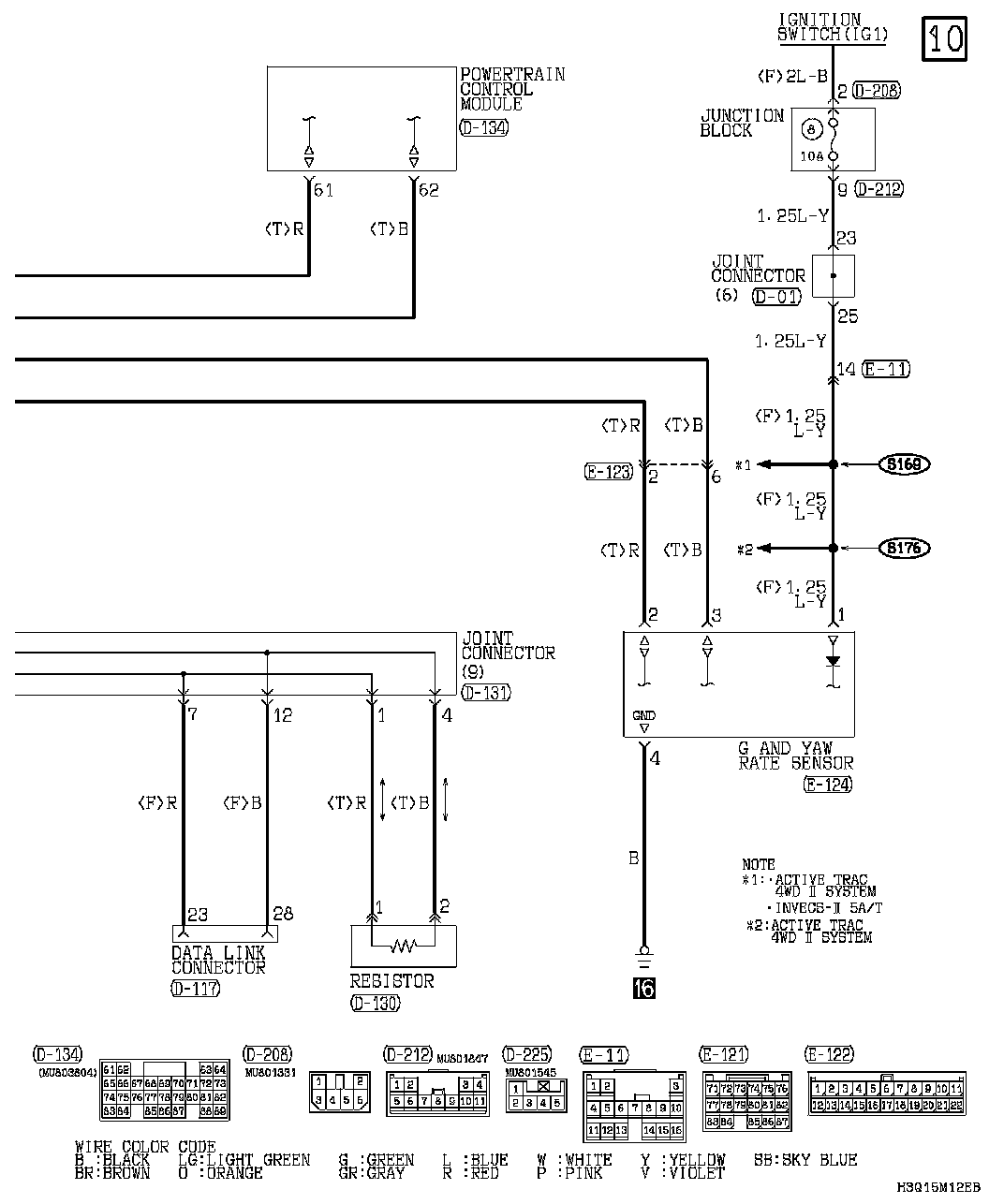

HBB, EBD, ABS And M-ASTC Part 10:
