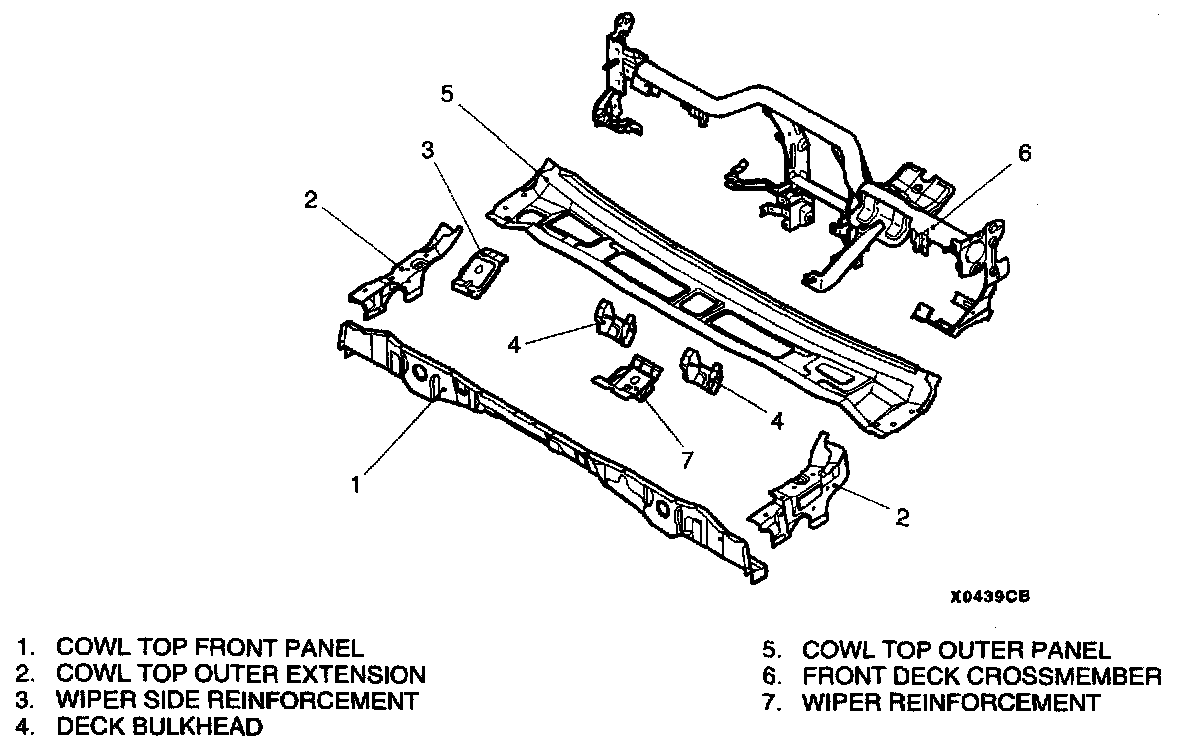

FRONT DECK
The front pillars and the front deck crossmember are joined in order to increase the rigidity of the passenger compartment.
