Removal and Installation

Part 1 Of 2:




Part 2 Of 2:

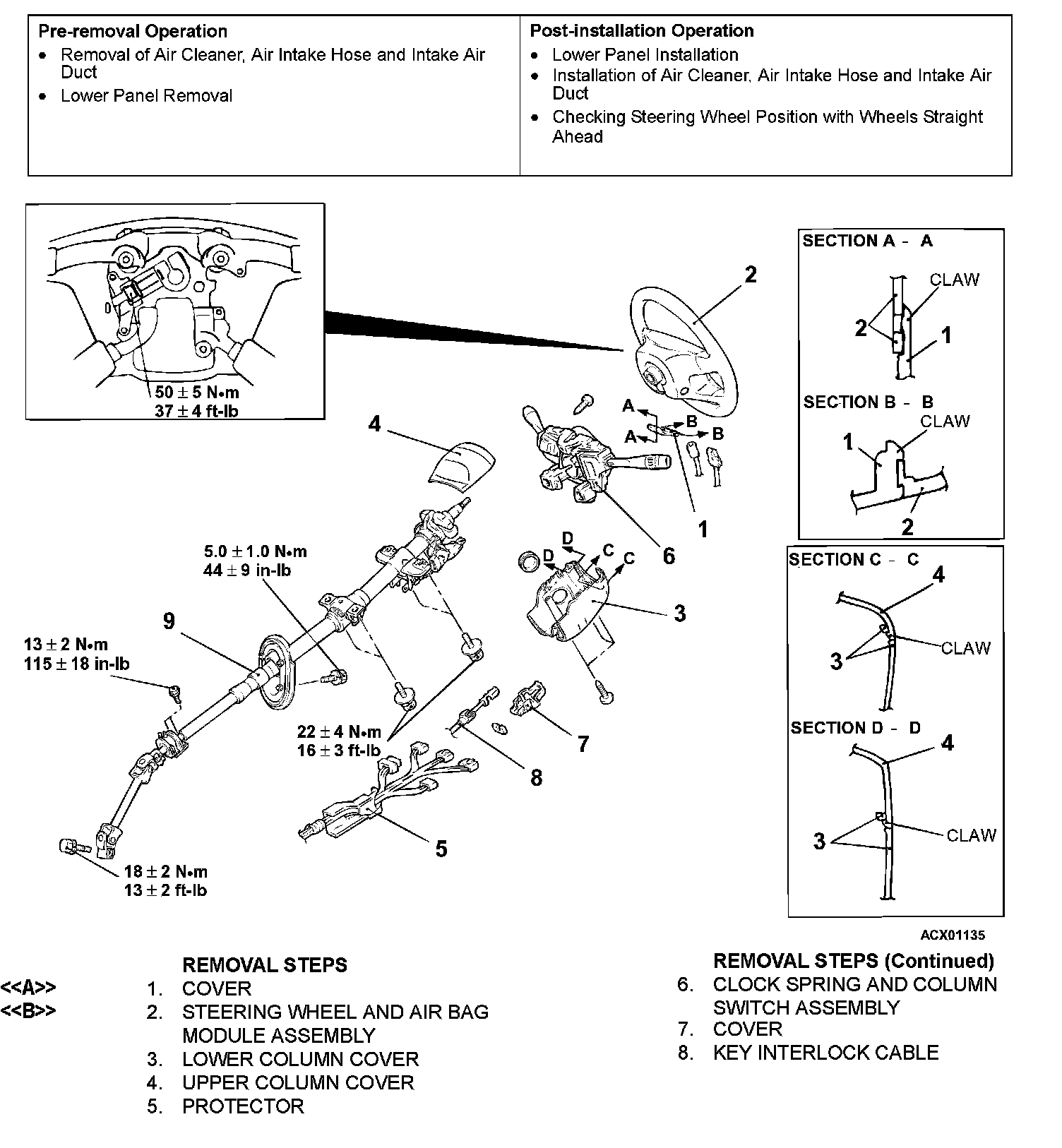

STEERING WHEEL AND SHAFT ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
