Suspension
>>
Wheel Hub
>>
Front
Front

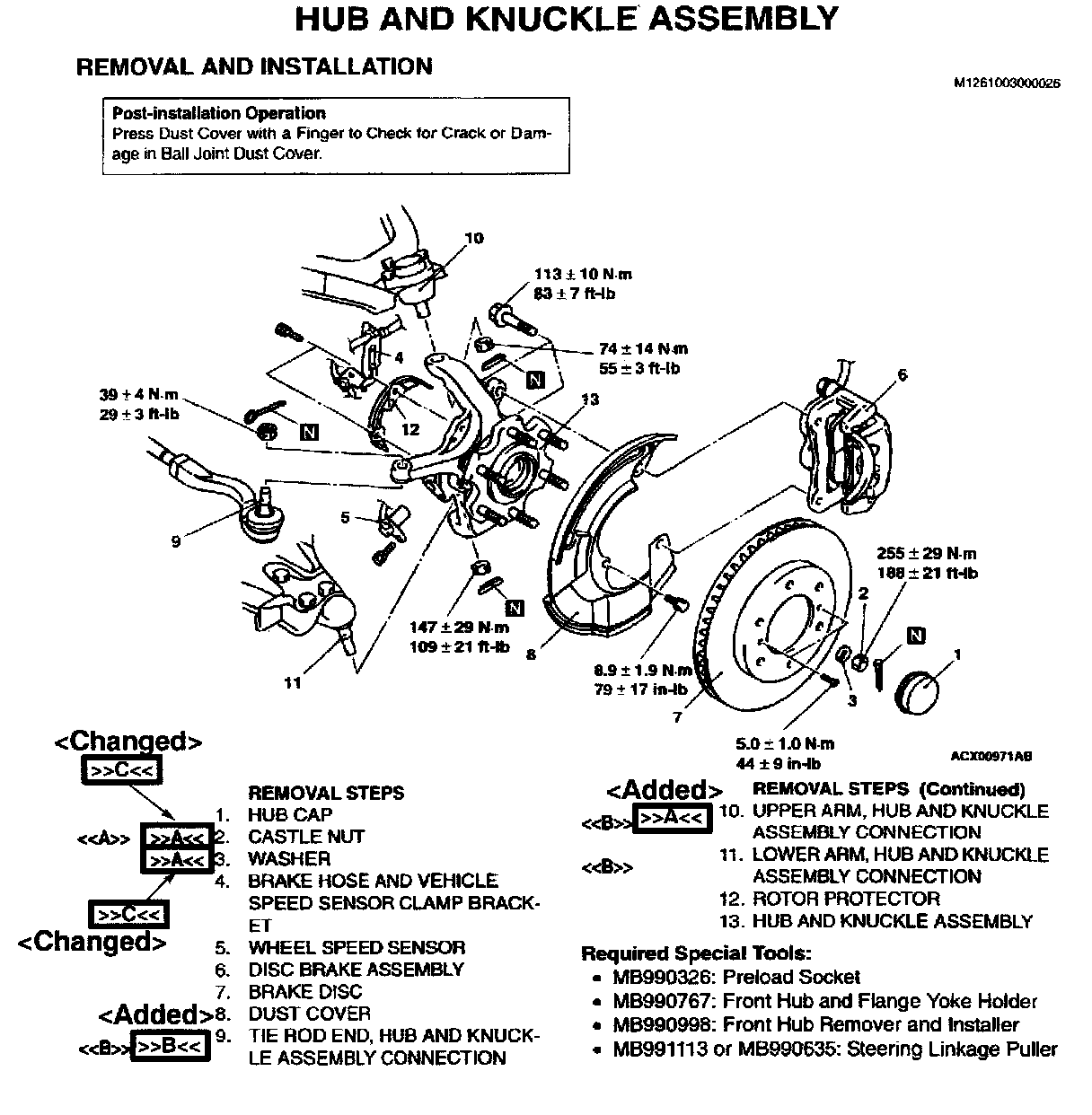

The image in this article reflects the changes called out by TSB 04-33-001
