Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

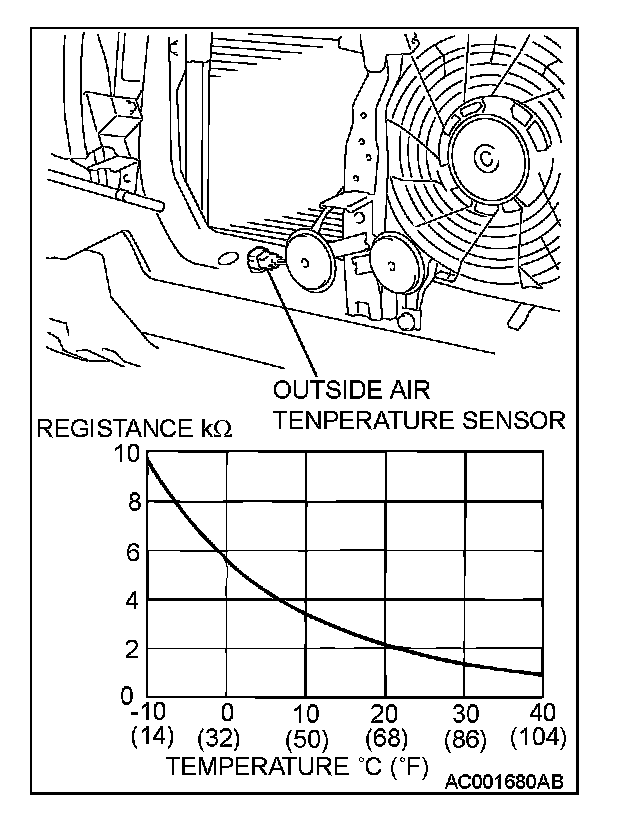

OUTSIDE AIR TEMPERATURE SENSOR CHECK




Measure the resistance between the sensor terminals under at least two temperatures. The resistance values should meet the values shown.

NOTE: The temperature should be within the shown range.
