On-Vehicle Service

MAGNETIC CLUTCH TEST
1. Disconnect the magnetic clutch connector to the magnetic clutch.

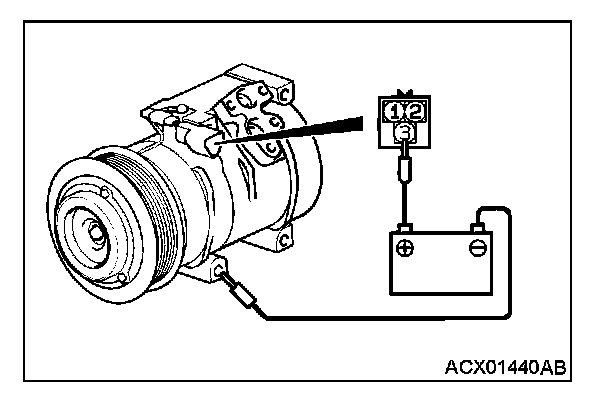

2. Connect the positive battery terminal to the air conditioning compressor clutch connector terminal 3, and ground the negative battery terminal to the body of the compressor.
3. If the magnetic clutch is normal, there will be a "click." If the pulley and armature do not make contact ("click"), there is a malfunction.
