Steering/Suspension - Revised Caster Angle Specification

No.: TSB-08-33-002

DATE: November, 2008

MODEL: 2001-06 Montero

SUBJECT:
CORRECTED CASTER ANGLE SPECIFICATION - SERVICE MANUAL REVISION

PURPOSE

This Technical Service Bulletin corrects the standard caster angle specification on affected vehicles.

AFFECTED VEHICLE(S)
2001-06 Montero

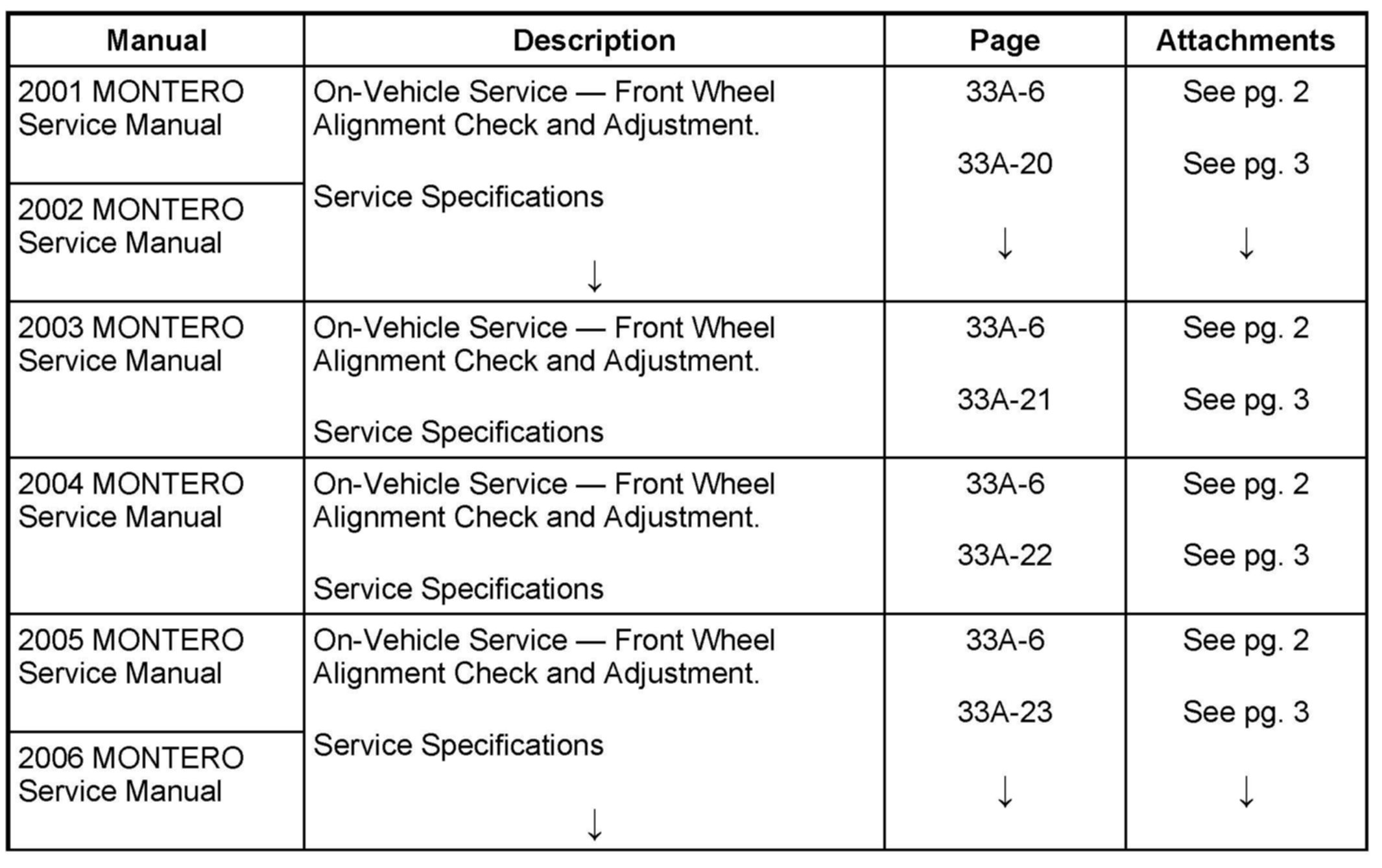

APPLICABLE MANUAL(S)

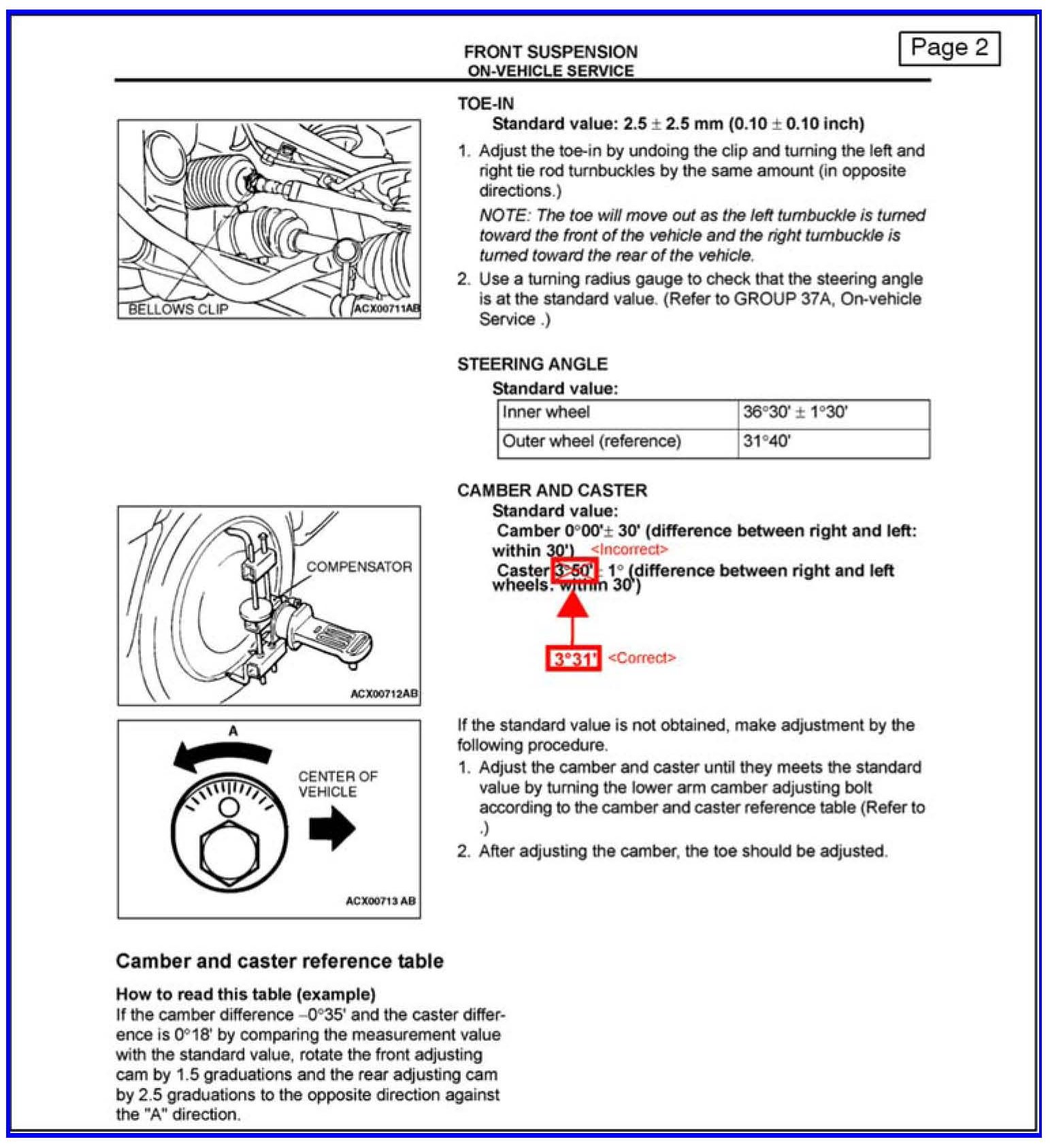

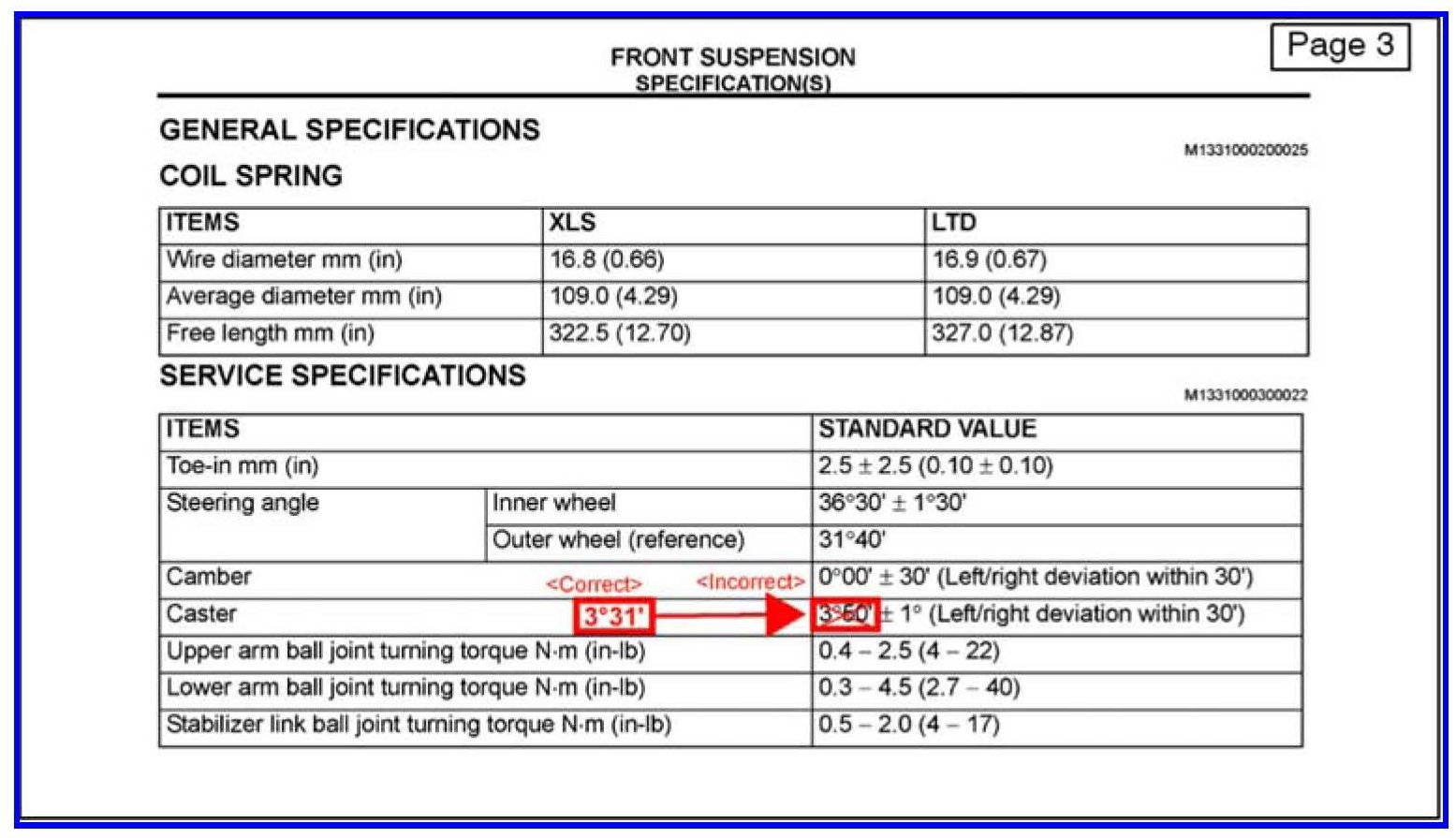

Service Manual Update - Attachment Pages 2 and 3
