Power Steering Fluid: Service and Repair

POWER STEERING FLUID REPLACEMENT

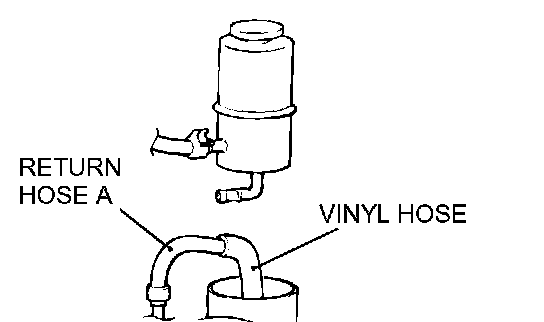

1. Jack up the front wheels and support them.
2. Disconnect the return hose A connection.





3. Connect a vinyl hose to the return hose A, and drain the fluid into a container.
4. Disconnect the ignition coil connector.
5. While operating the starting motor intermittently, turn the steering wheel all the way to the left and right several times to drain all of the fluid.
6. Connect the return hose A securely, and then secure with the clip.
7. Fill the oil reservoir with GENUINE MITSUBISHI POWER STEERING FLUID up to the lower position of the filler, and then bleed the air.
