Home >> Mitsubishi >> 2003 >> Montero V6-3.8L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Level Sensor >> Locations

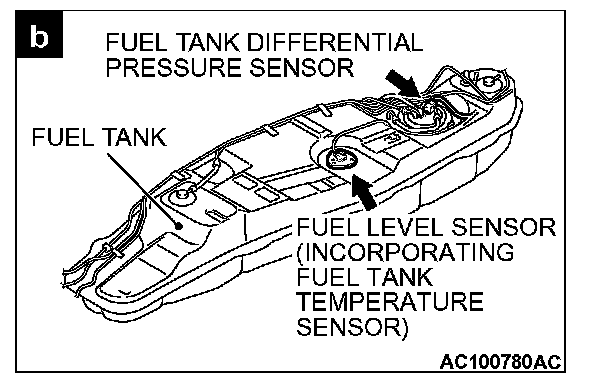

Fuel Level Sensor: Locations

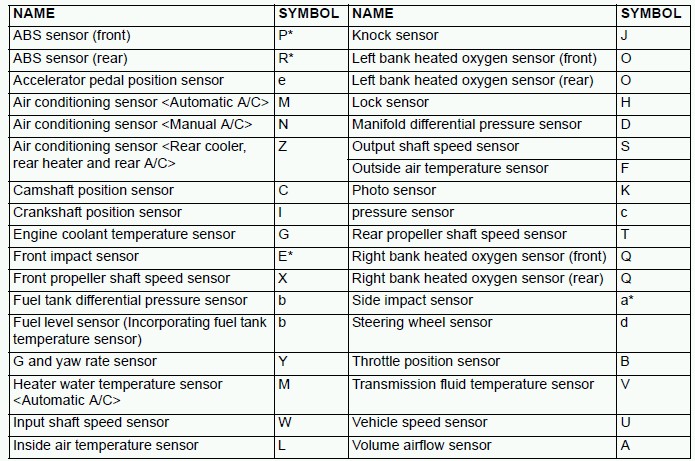

View b:

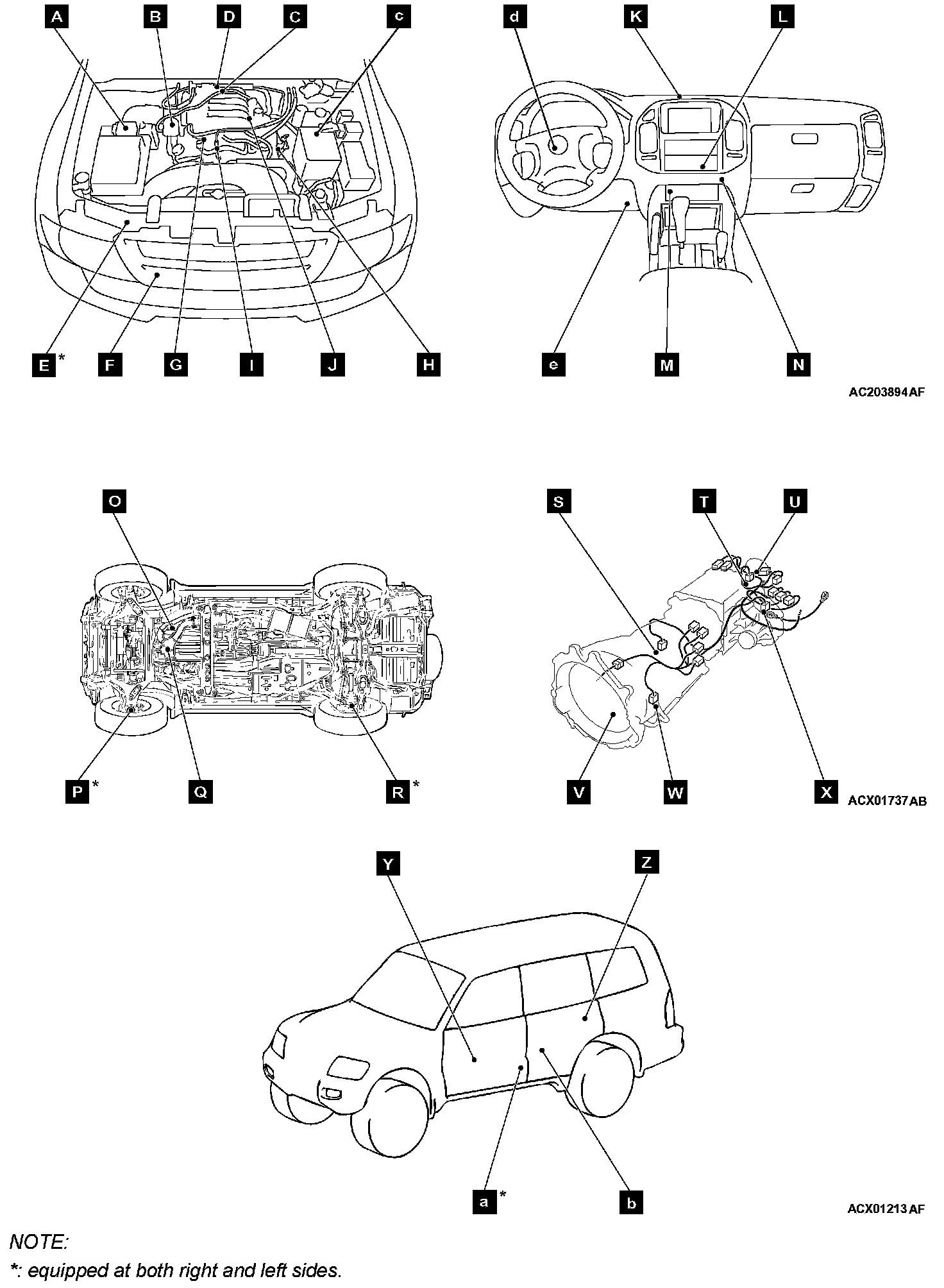

Overall View:
