Data List Reference Table

- COLUMN ECU (column switch)

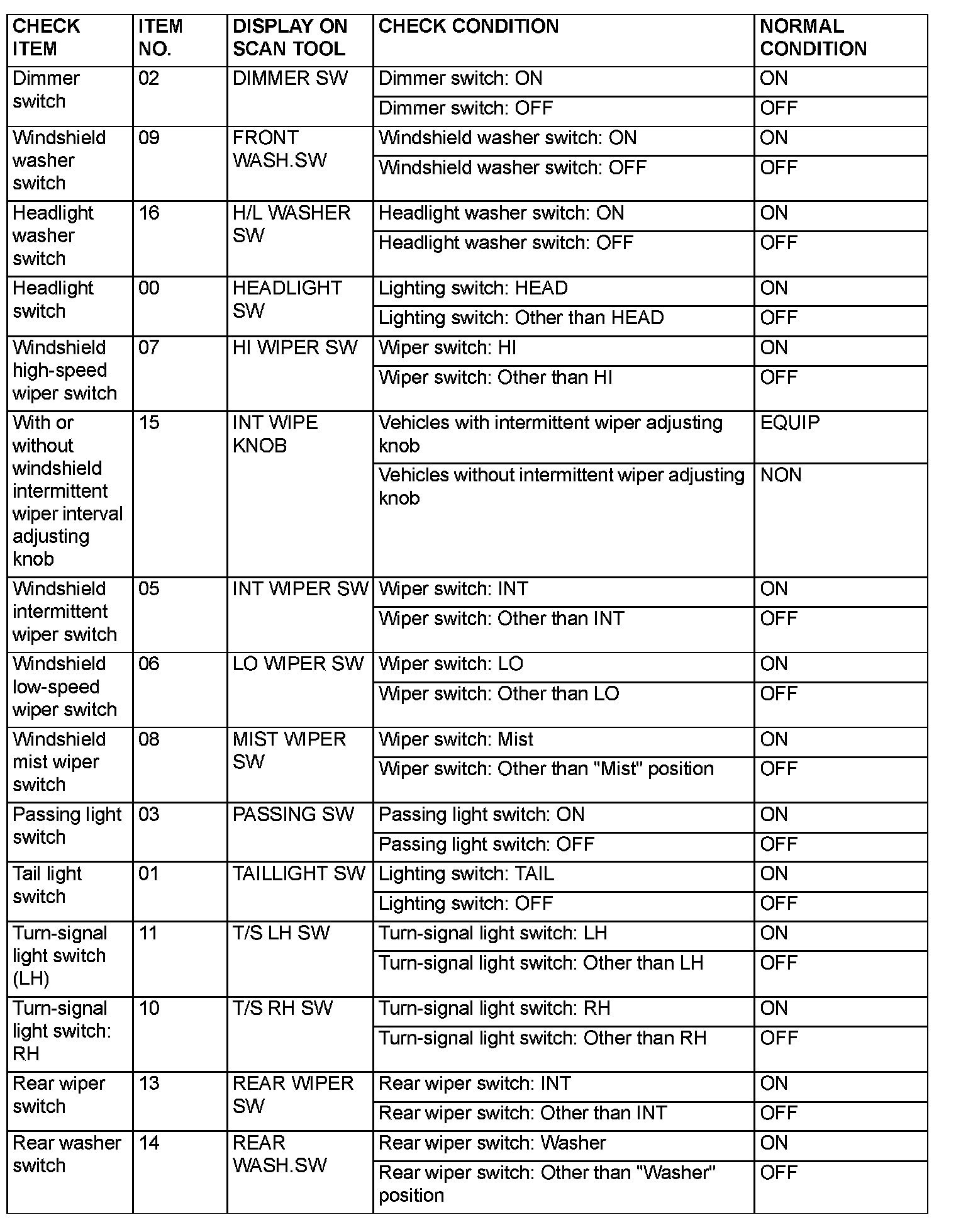

Part 1:

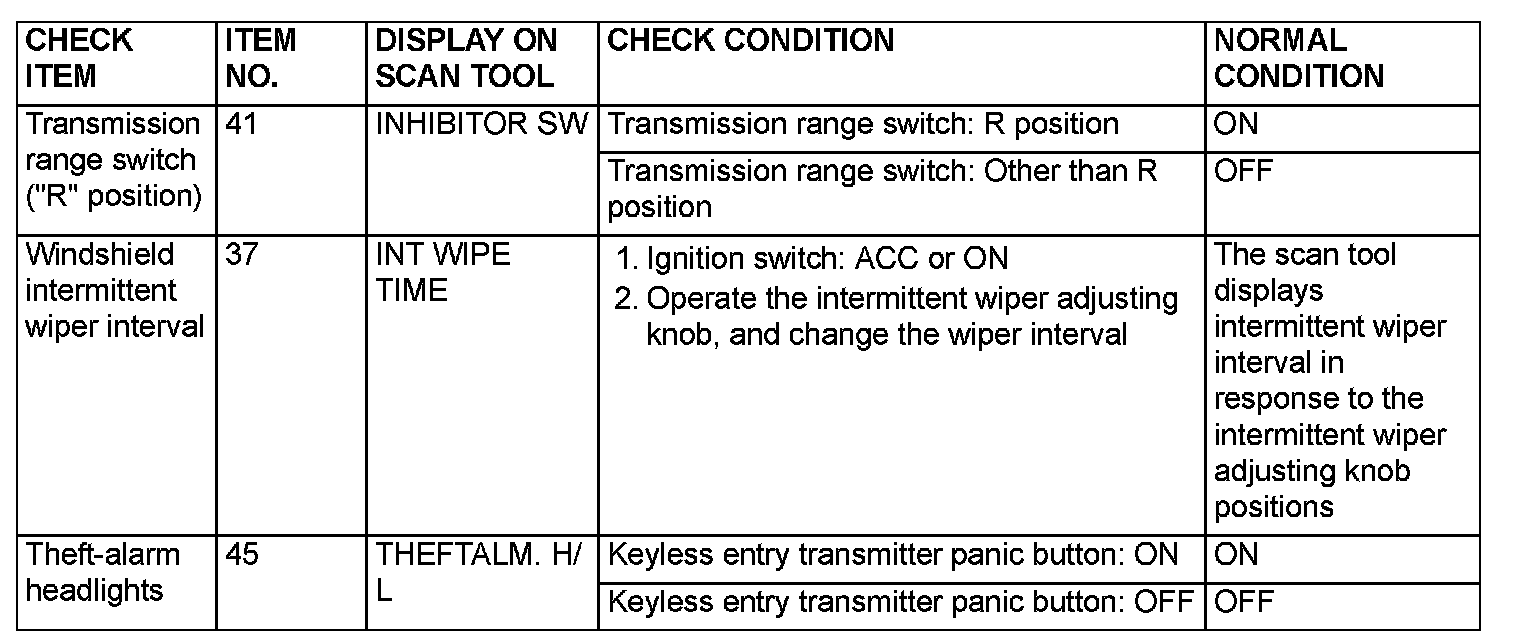

Part 2:

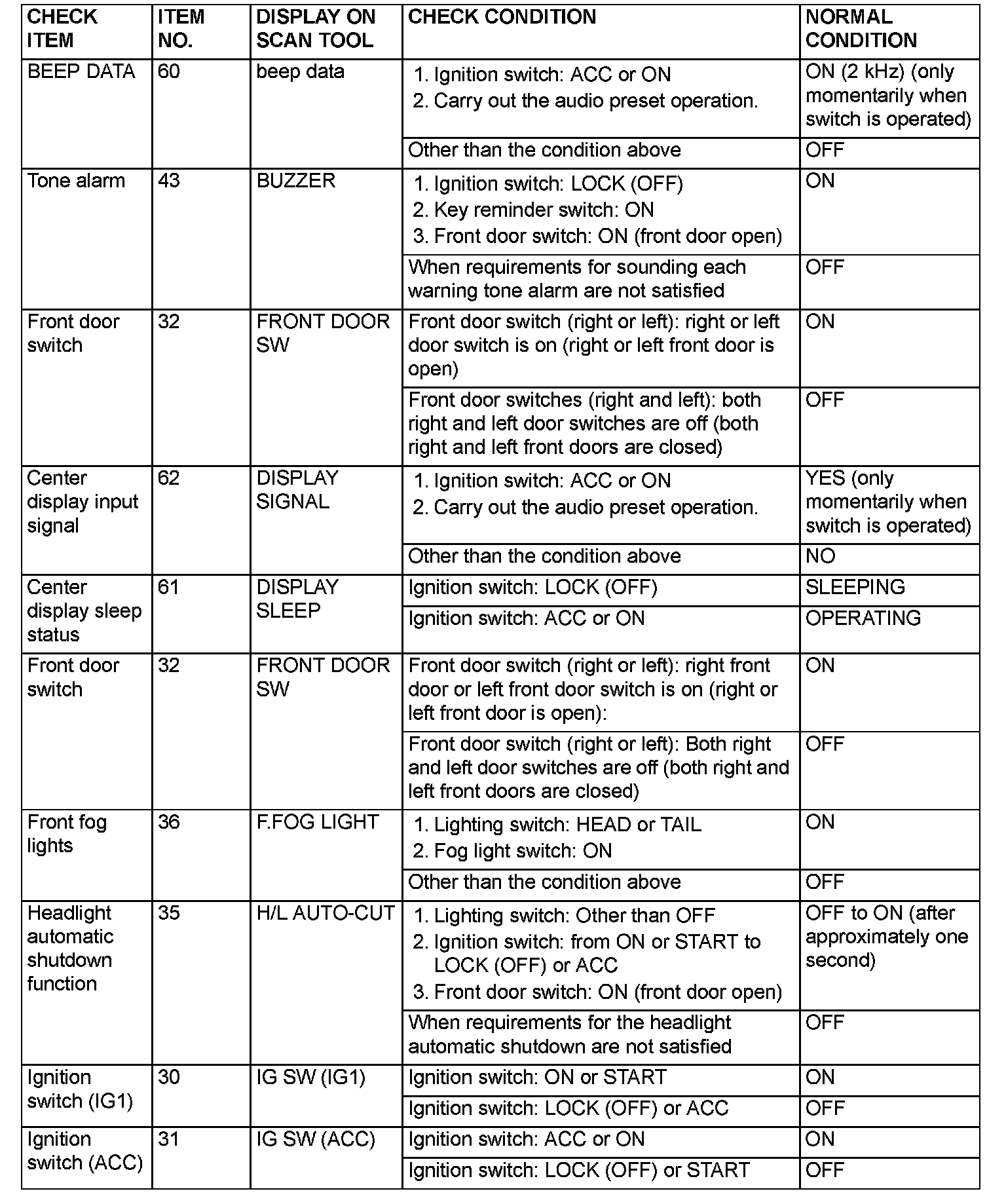

- ETACS ECU

NOTE: For item number 43, the scan tool also display "ON" when the light reminder tone alarm or R (reverse) position warning tone alarm is triggered.

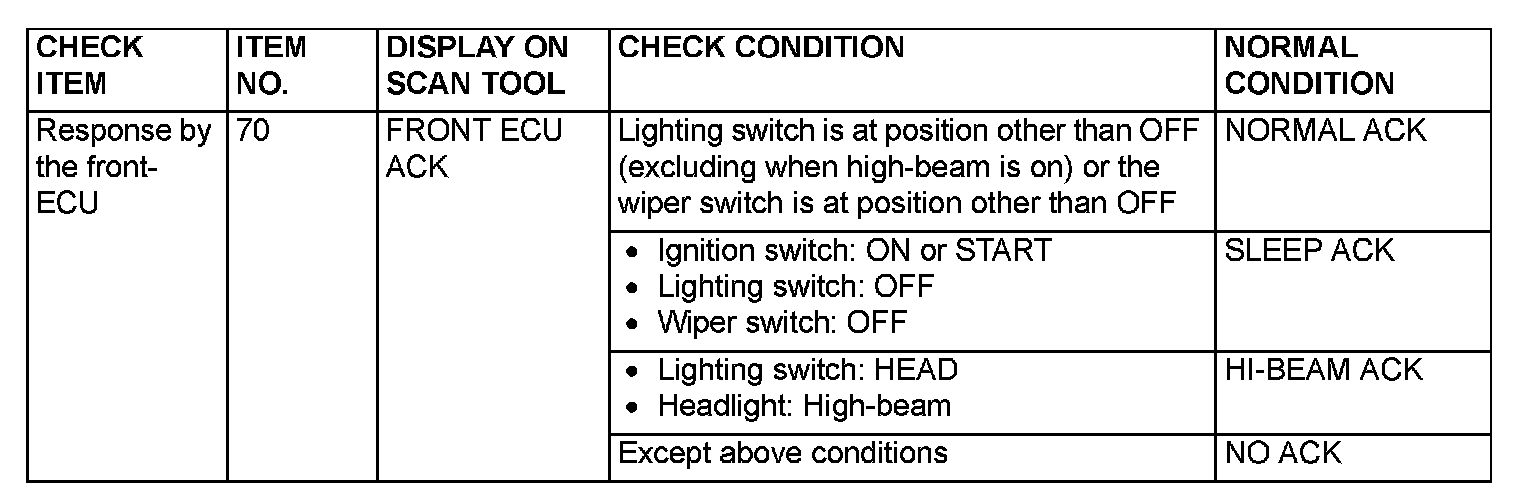

- FRONT ECU

NOTE: For item number 70, the scan tool also displays "NG" under the "ECU COMM CHK" when it displays "NO ACK" under the front-ECU check.

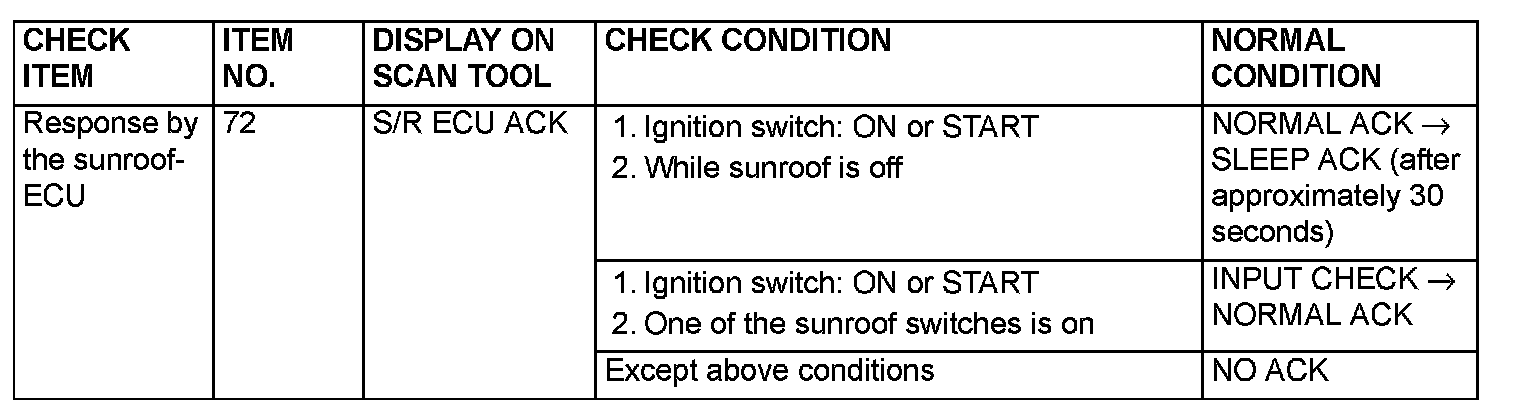

- SUNROOF ECU (sunroof Motor Assembly)

NOTE: For item number 72, the scan tool also displays "NG" under the "ECU COMM CHK" when it displays "No response" under the sunroof-ECU check.
