Input Signal Chart

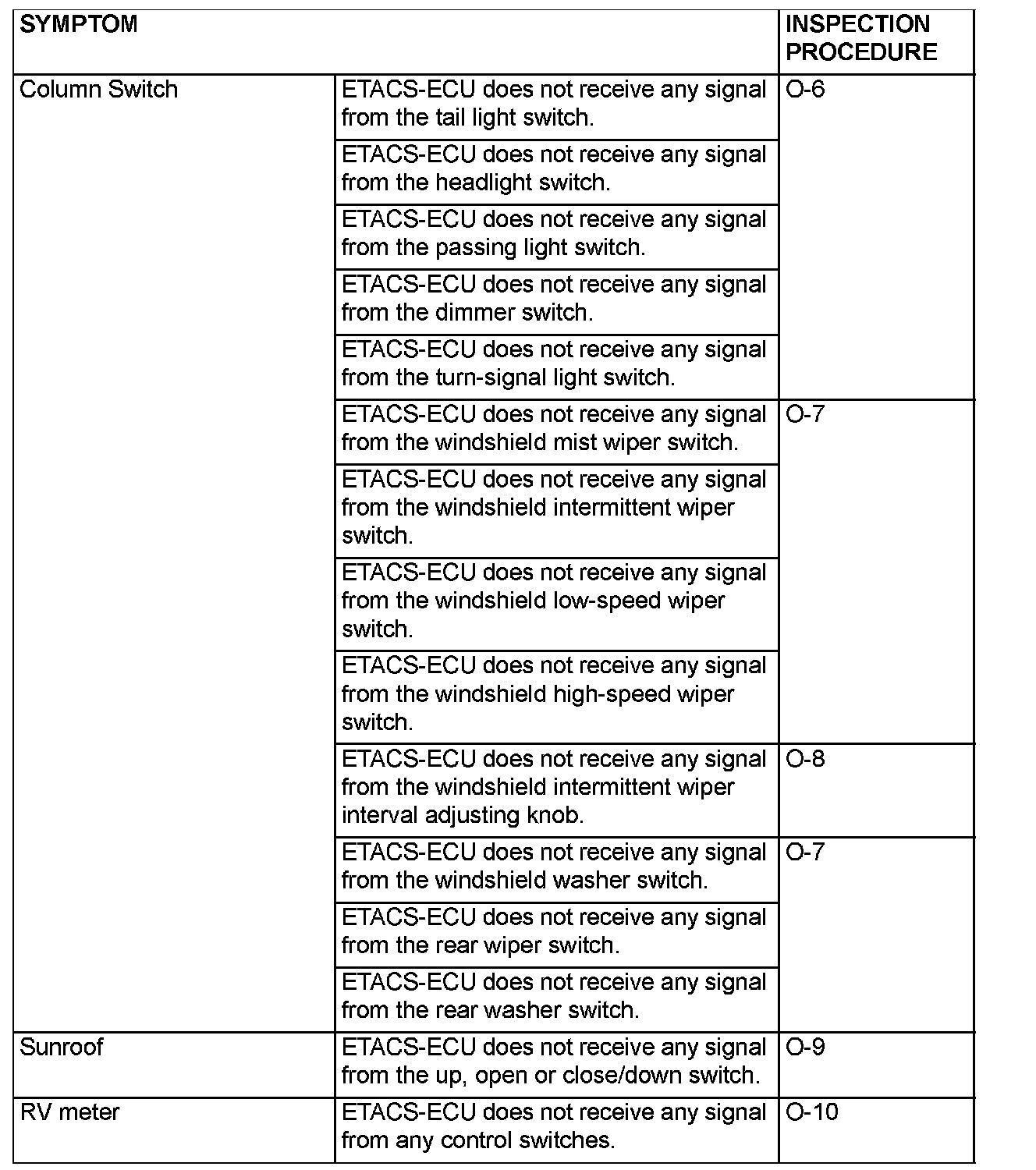

Input Signal Chart <SWS Monitor> Part 1:

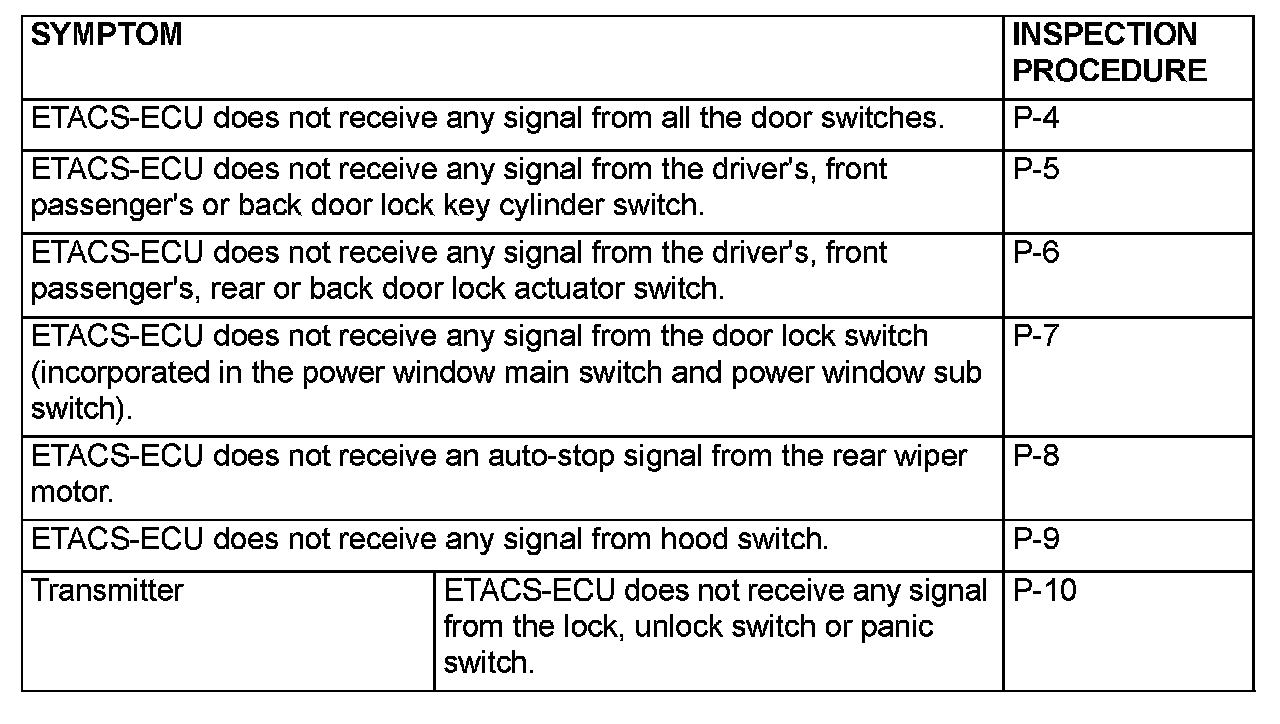

Input Signal Chart <SWS Monitor> Part 2:

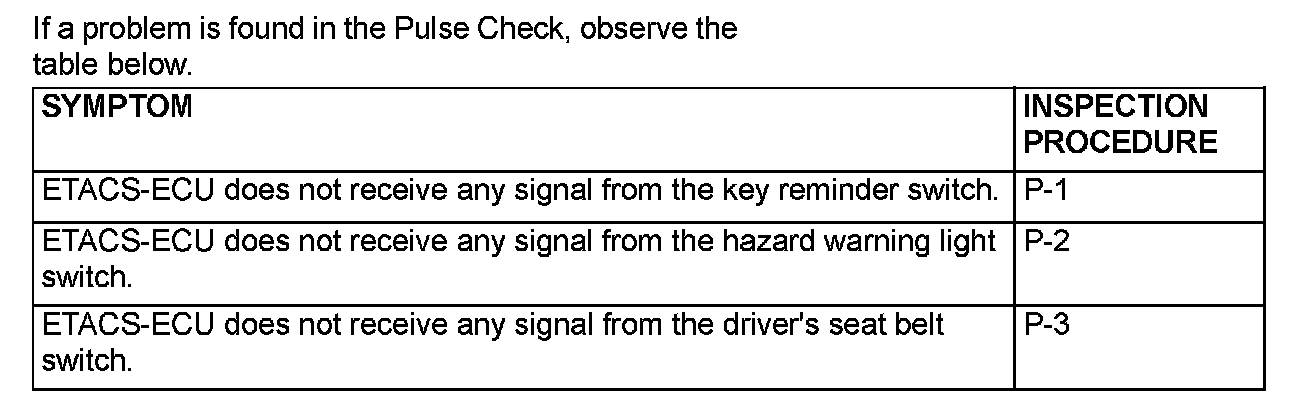

Input Signal Chart <Scan Tool Or Voltmeter> Part 1:



Input Signal Chart <Scan Tool Or Voltmeter> Part 2:
