Oxygen Sensor: Service and Repair

REMOVAL AND INSTALLATION

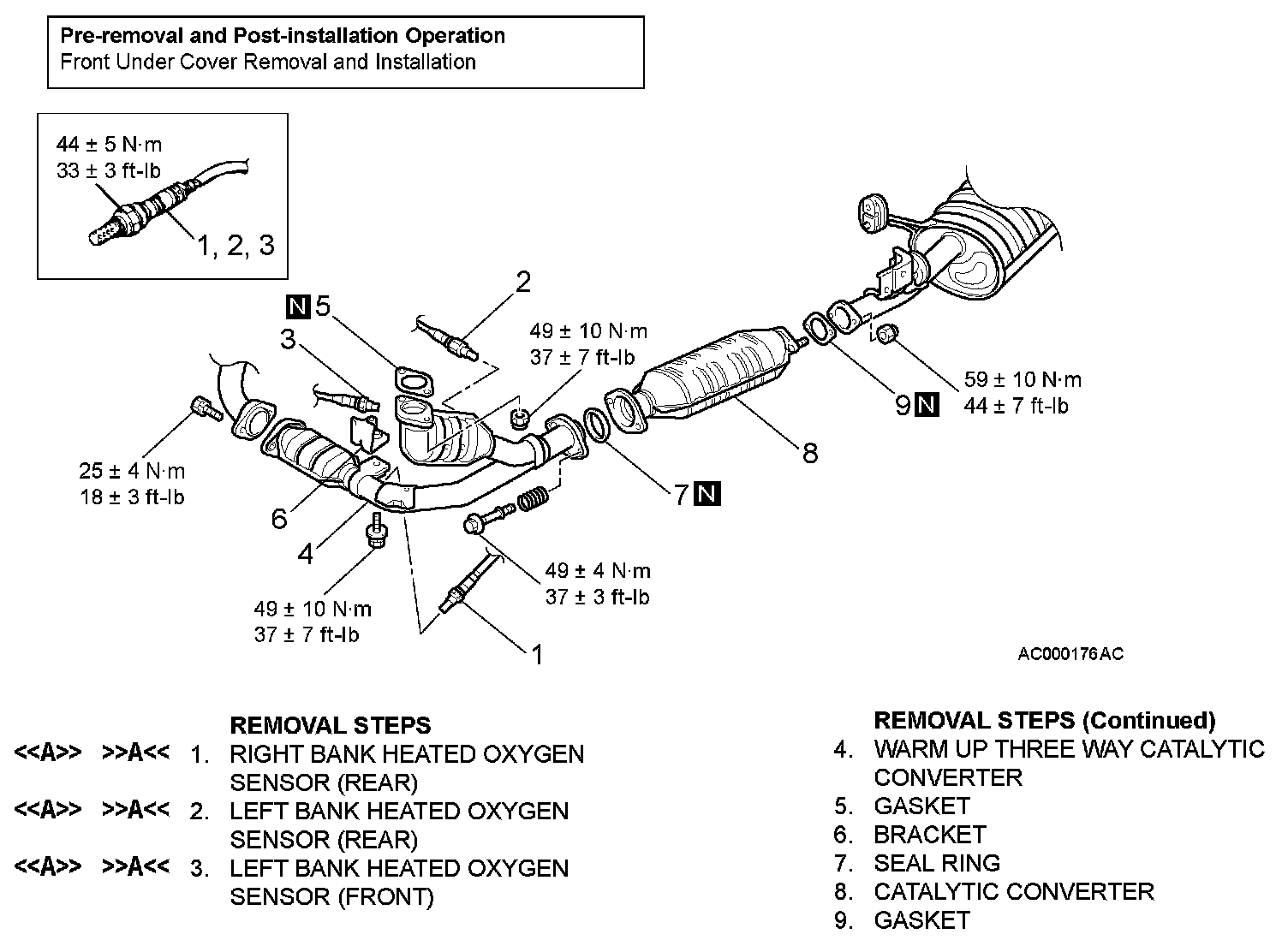

Catalytic Converter:

Required Special Tool:
- MD998770: Oxygen Sensor Wrench

REMOVAL SERVICE POINT





<> RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL



Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT





>>A<< LEFT BANK HEATED OXYGEN SENSOR (FRONT)/LEFT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (REAR) INSTALLATION




Use special tool MD998770 to install the oxygen sensor.
