Fuel System - Service Manual Revisions
No: TSB-04-13-008DATE: September, 2004
MODEL: 2003-05 Montero
SUBJECT:
CORRECTED THROTTLE BODY TIGHTENING TORQUE & ADDED ETV INITIALIZATION
PROCEDURES - SERVICE MANUAL REVISION
PURPOSE
This bulletin contains the following service manual revisions:
^ Corrected throttle body mounting bolt tightening torque
^ Addition of omitted Electronic Throttle Valve (ETV) initialization procedures after removal and installation of the throttle body
^ Addition of omitted Electronic Throttle Valve (ETV) initialization procedures after removal and installation of the PCM
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
2003-05 Montero
AFFECTED SERVICE MANUALS
2003 Montero Service Manual, Pages 13Aa-27, 28
2004 Montero Service Manual, Pages 13A-1012 to 1014
2005 Montero Service Manual, Pages 13A-1039 to 1041
SERVICE MANUAL REVISIONS

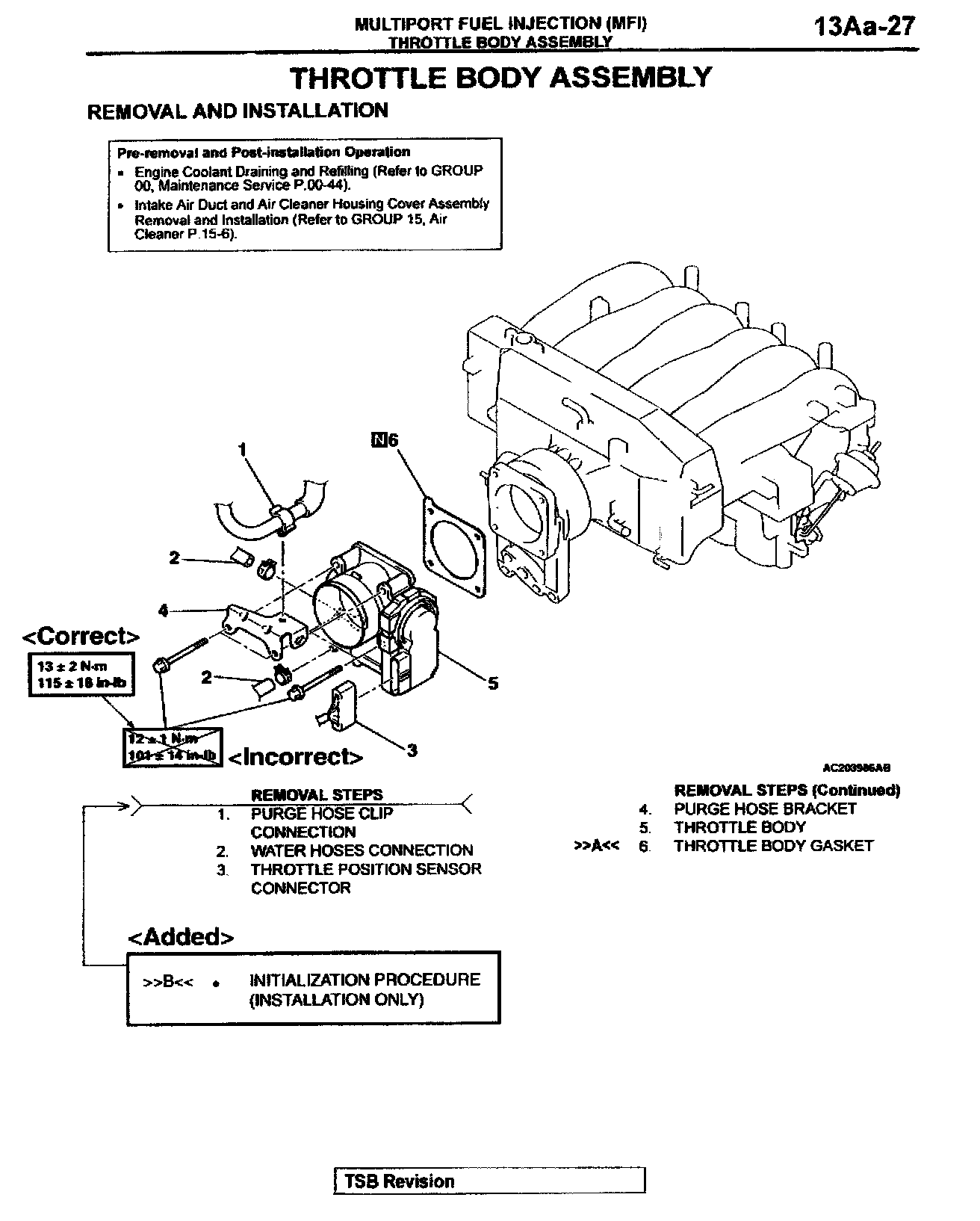

2003 Montero Service Manual Page 13Aa-27

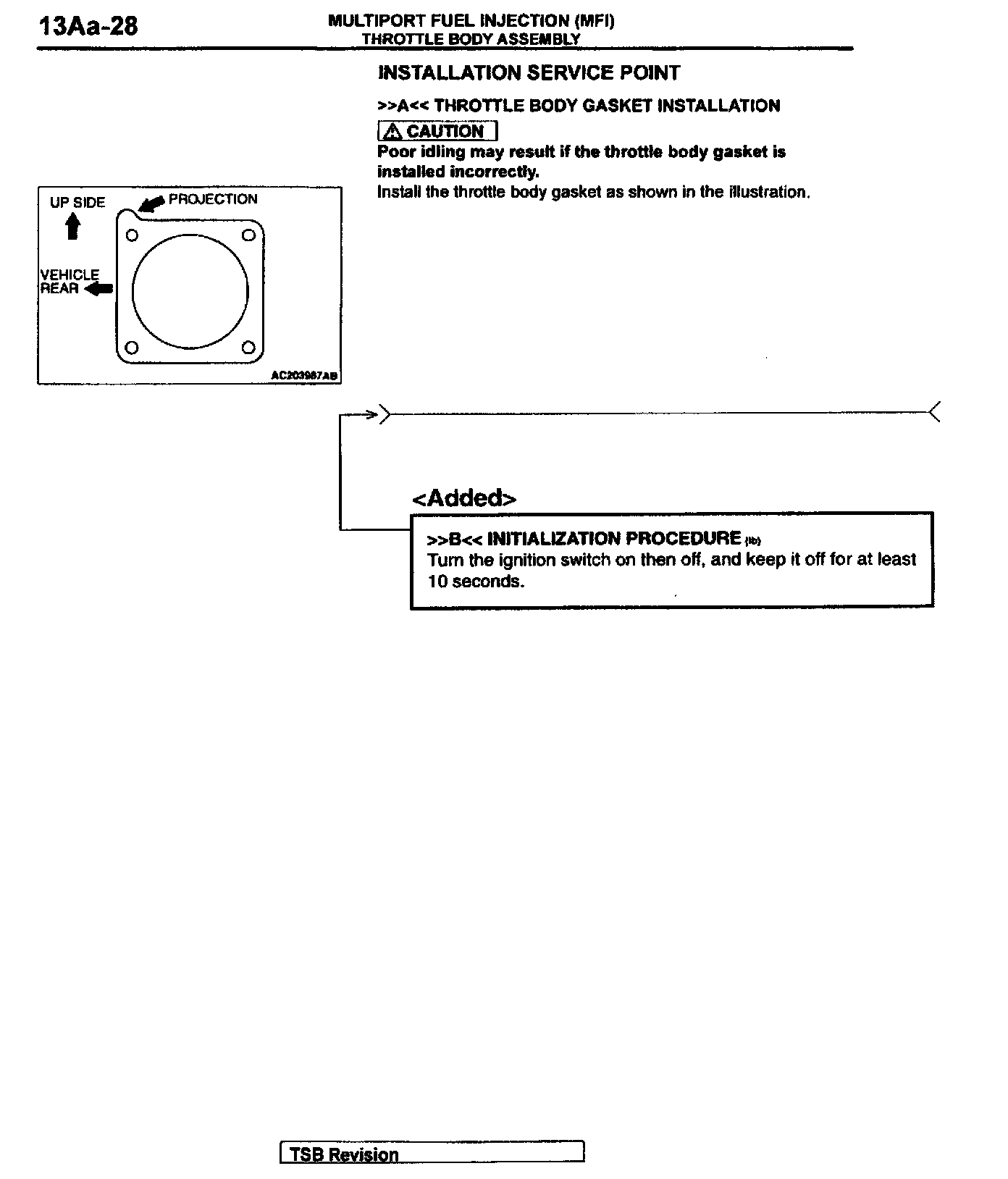

2003 Montero Service Manual, Page 13Aa-28

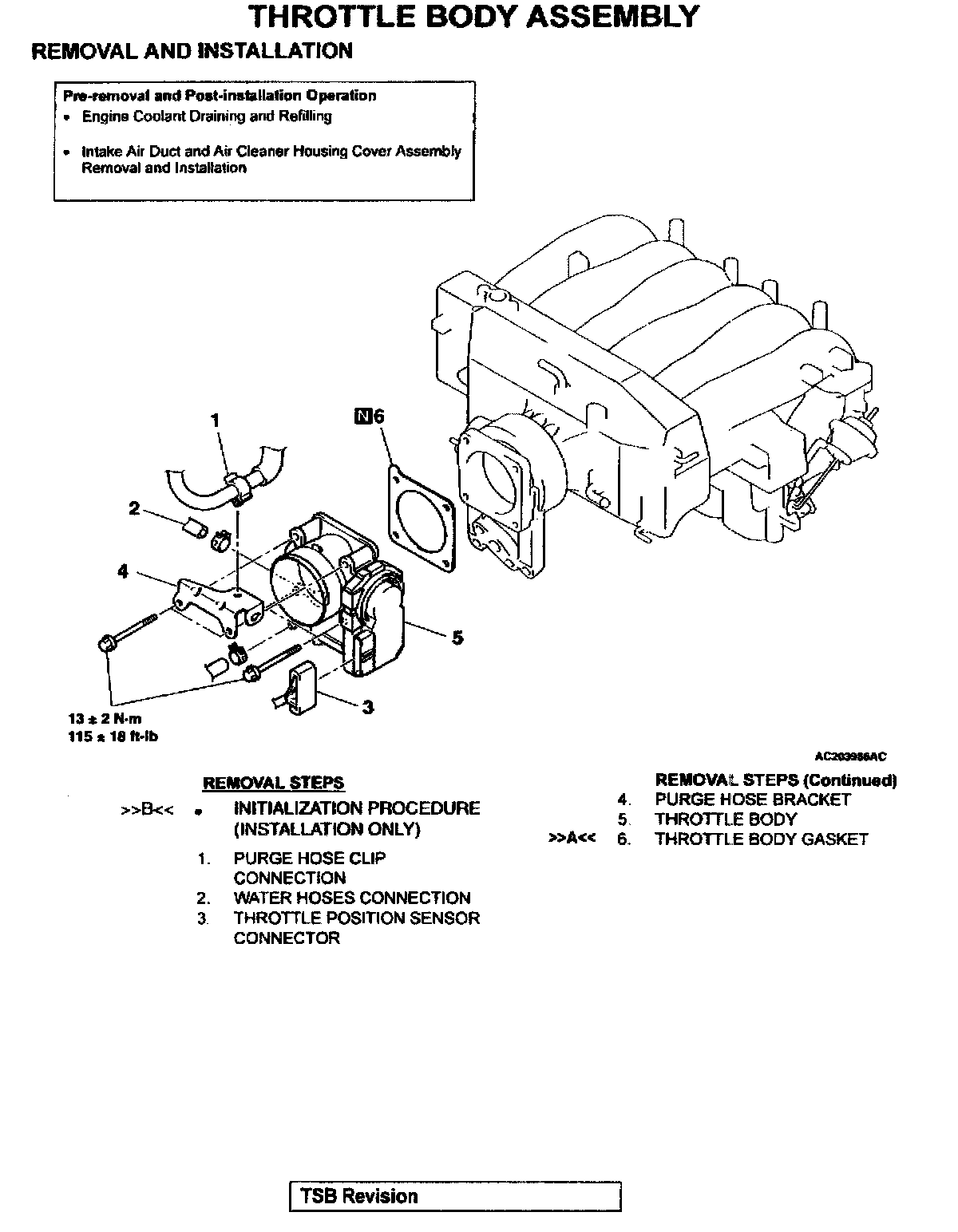

2004 Montero Service Manual, Page 13A-1012

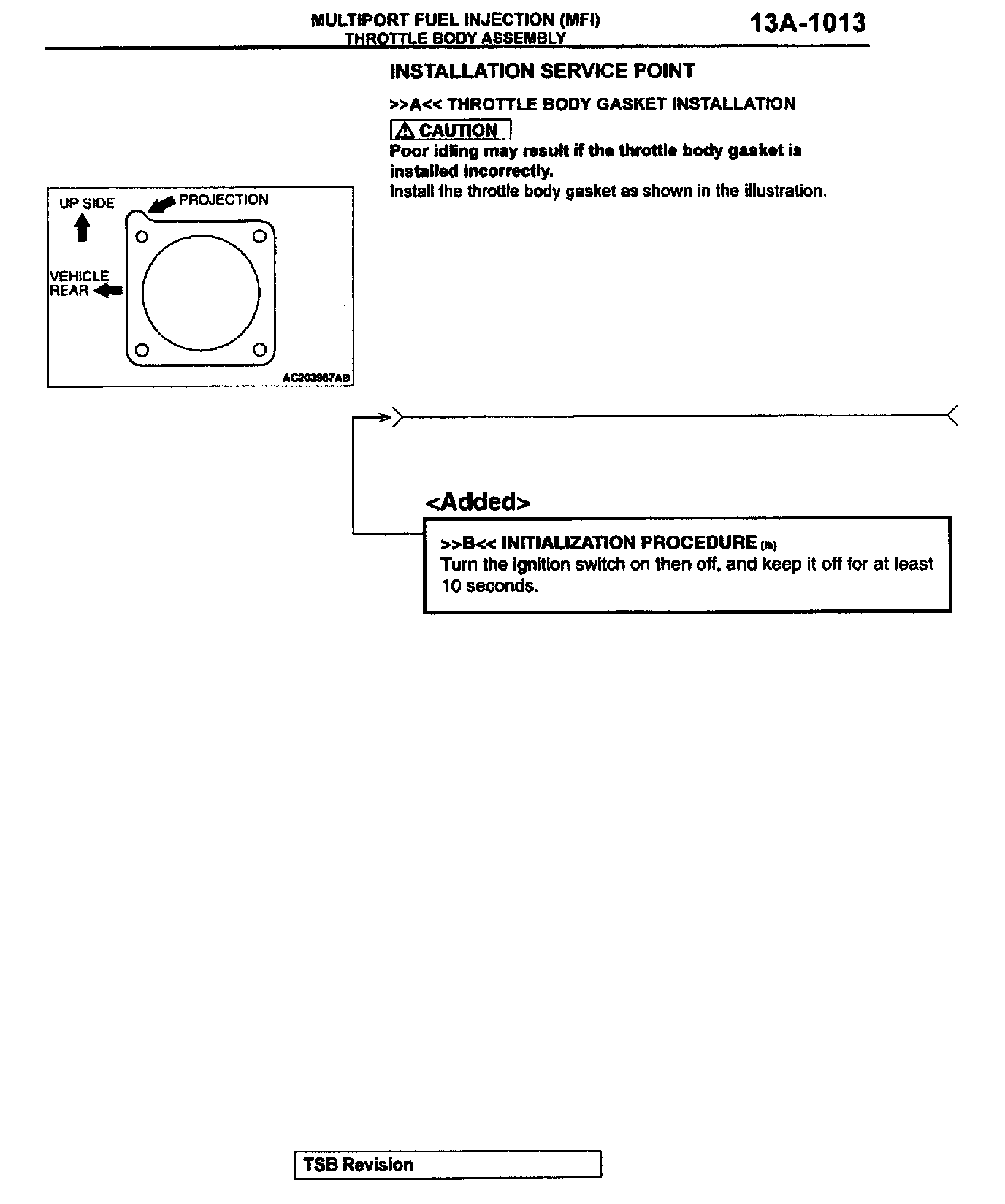

2004 Montero Service Manual, Page 13A-1013

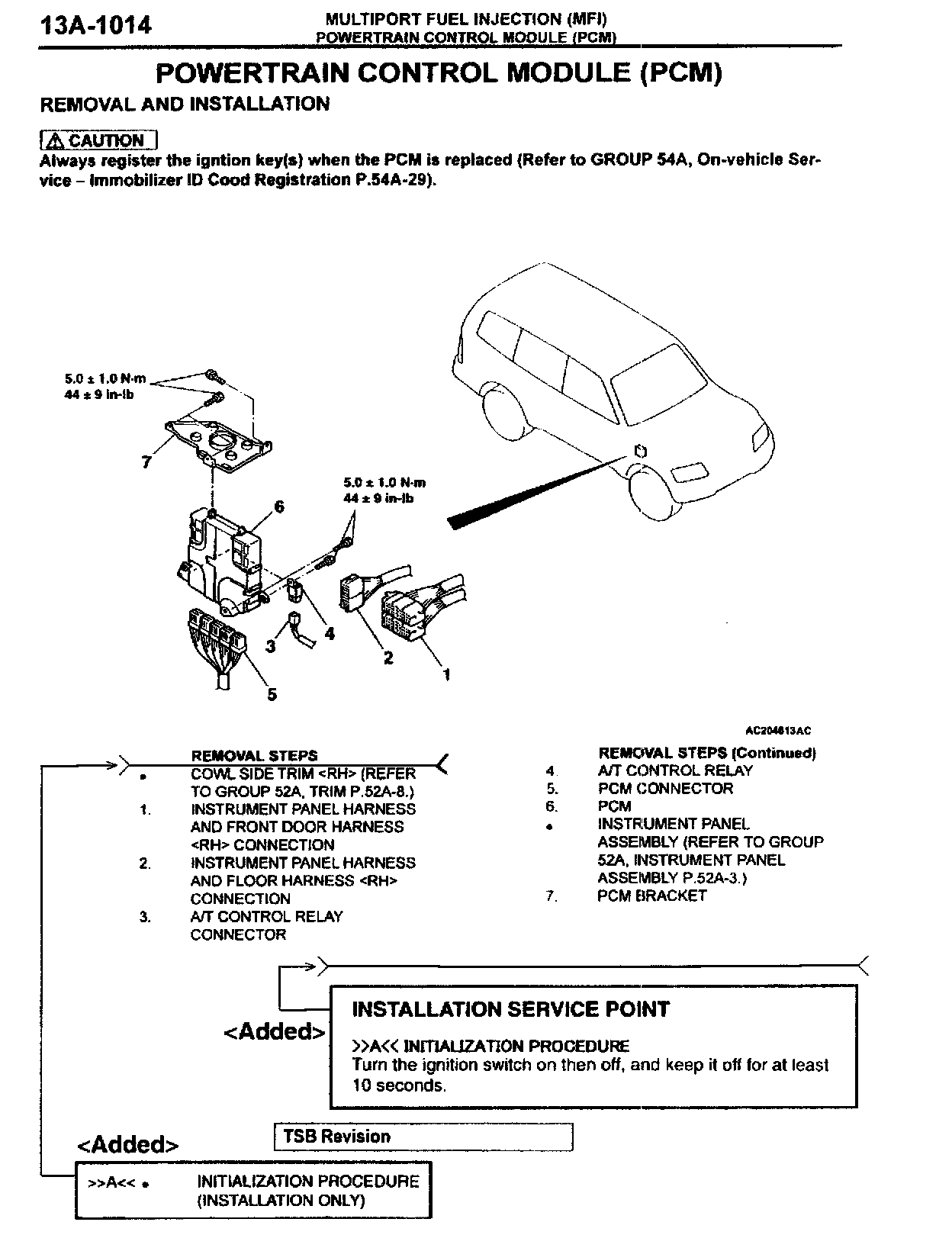

2004 Montero Service Manual, Page 13A-1014

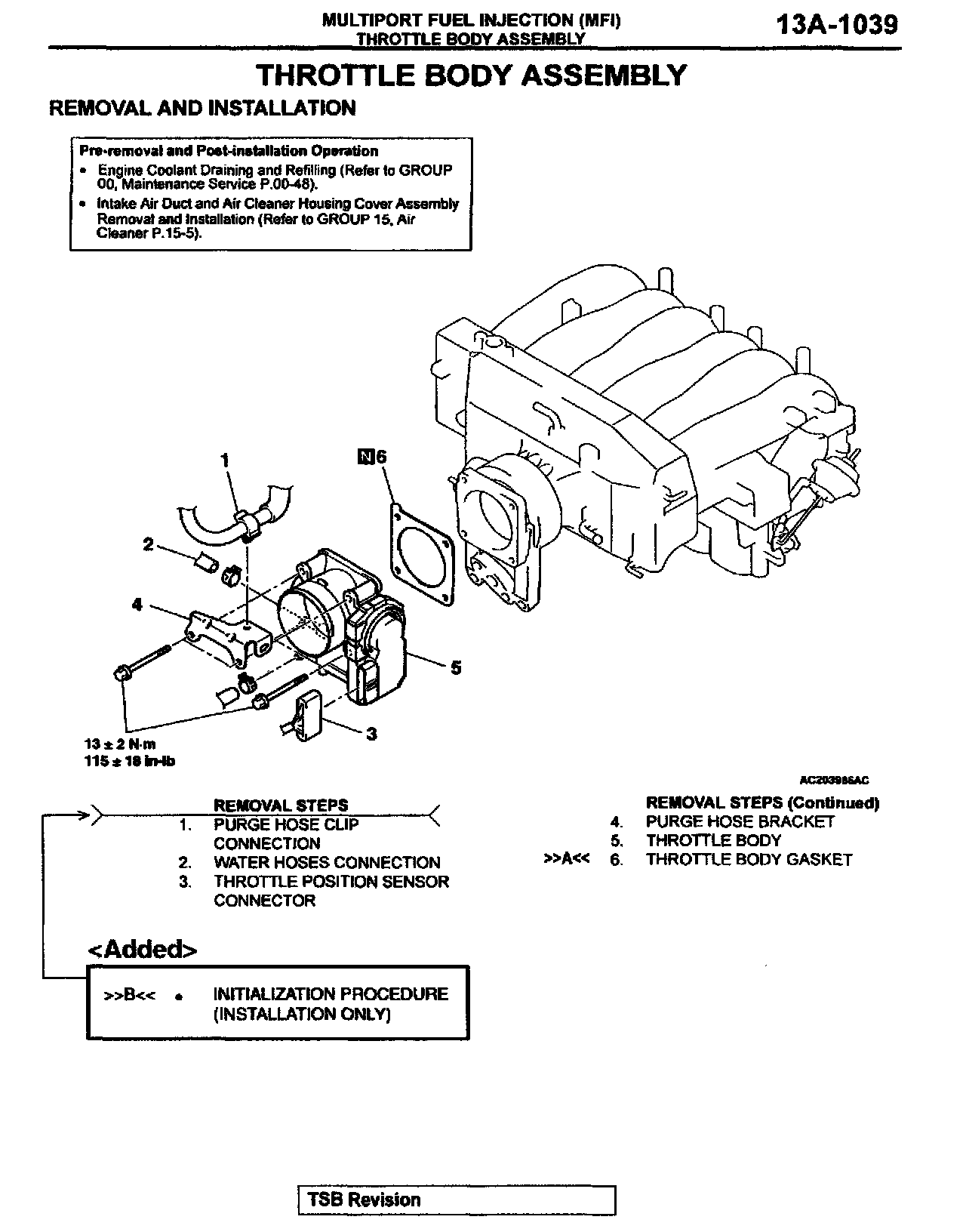

2005 Montero Service Manual, Page 13A-1039
2005 Montero Service Manual, Page 13A-1040

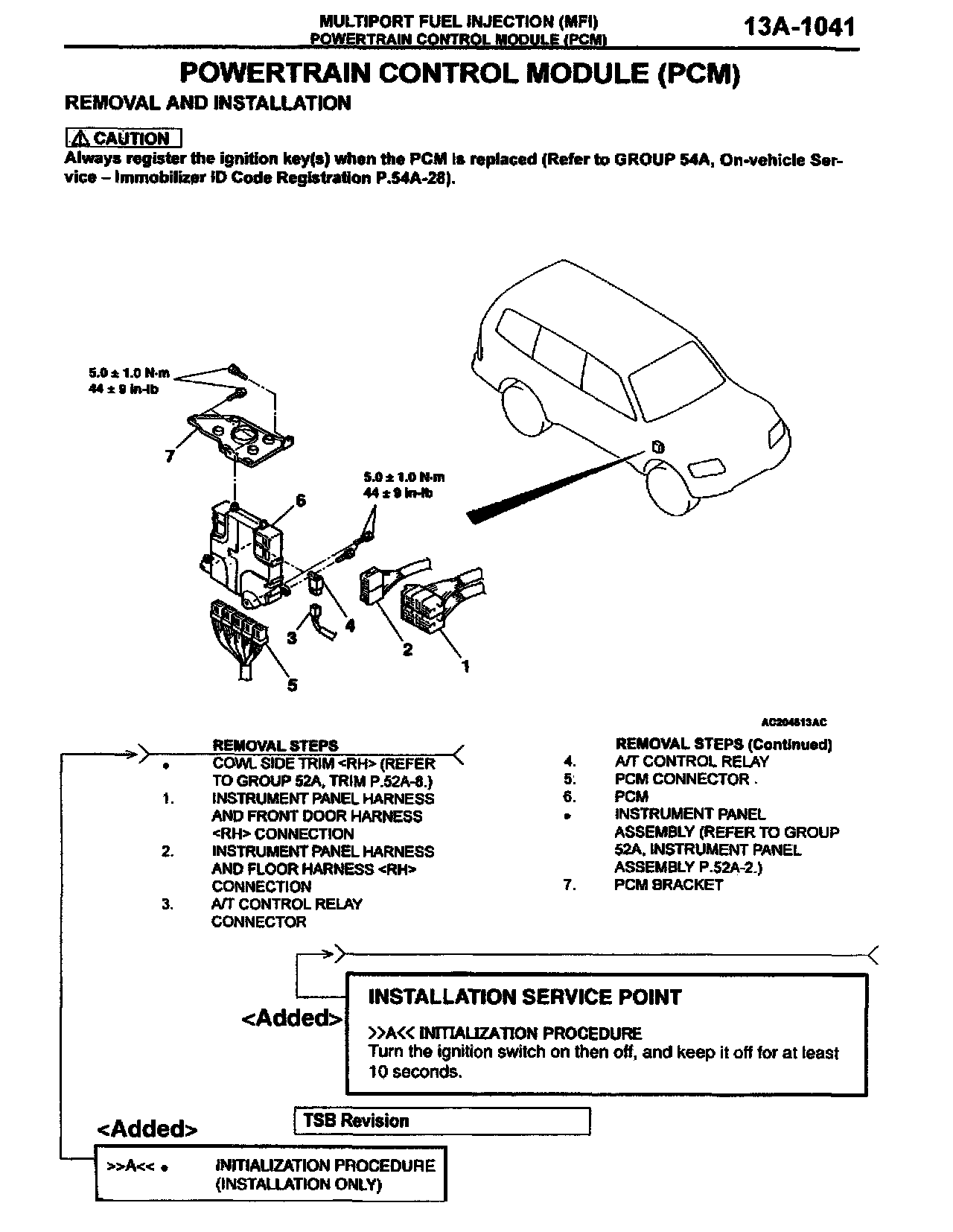

2005 Montero Service Manual, Page 13A-1041
