Evaporative Emissions System: Service and Repair

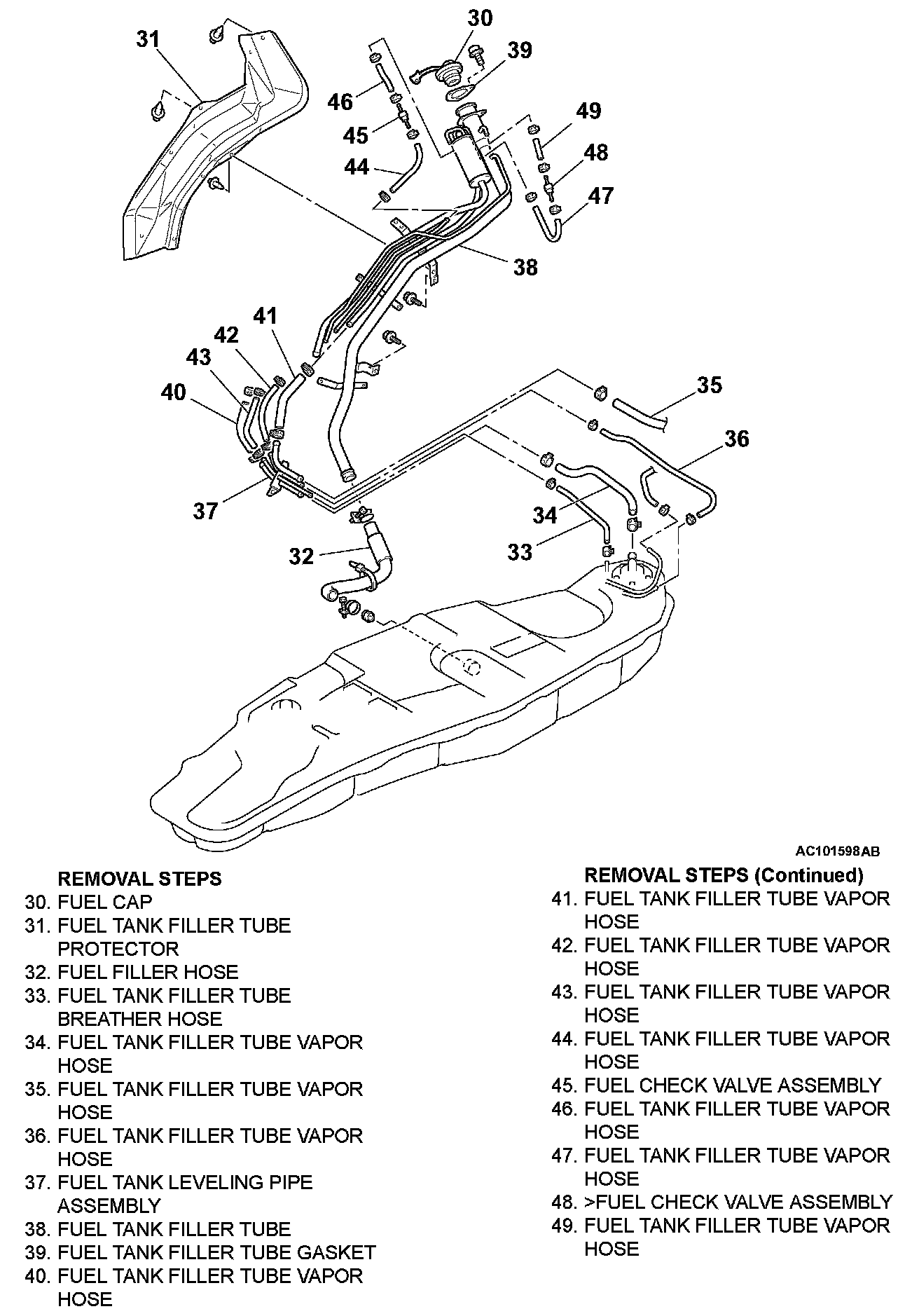

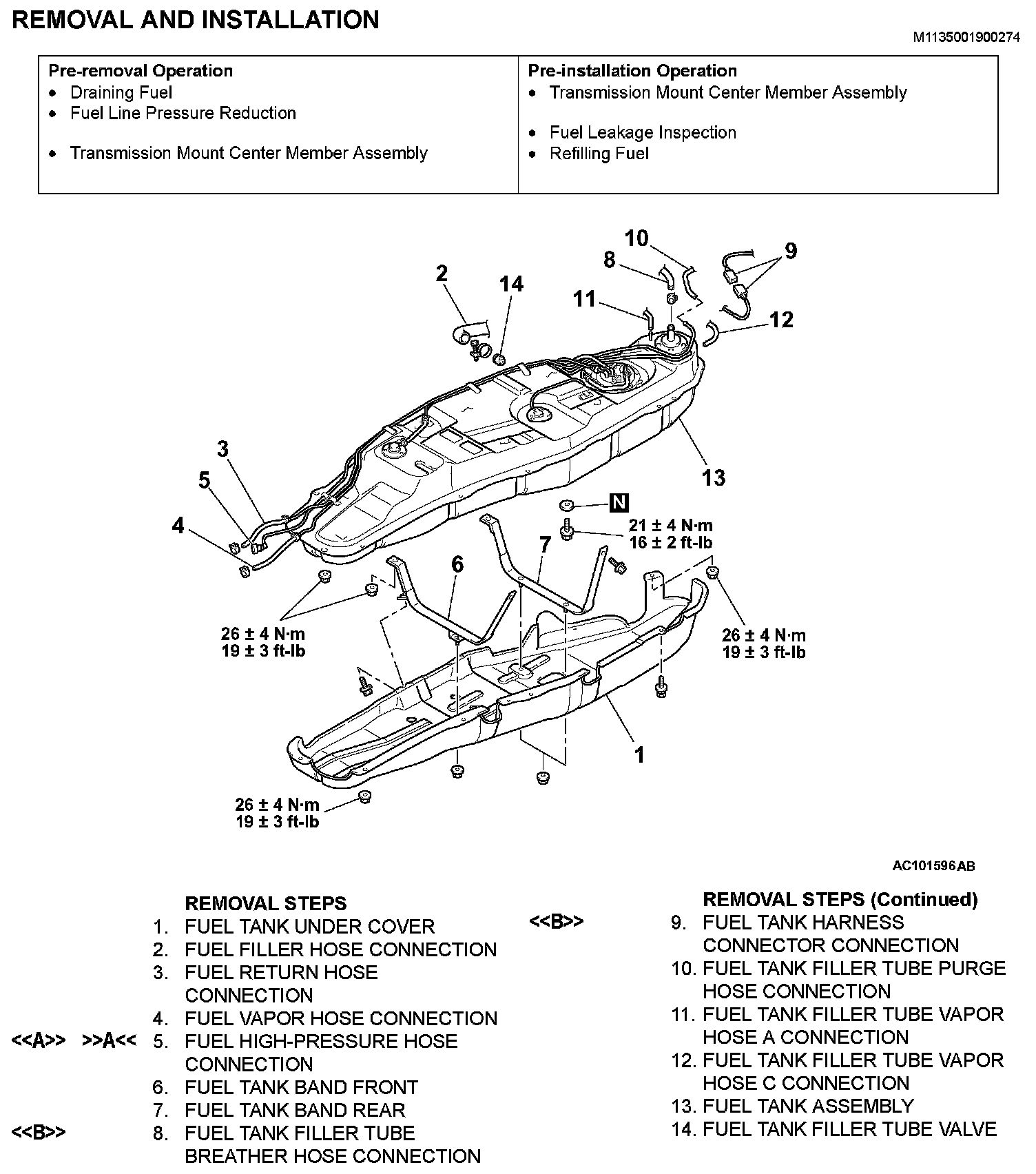

REMOVAL AND INSTALLATIONFuel Tank Part 1:
Fuel Tank Part 2:

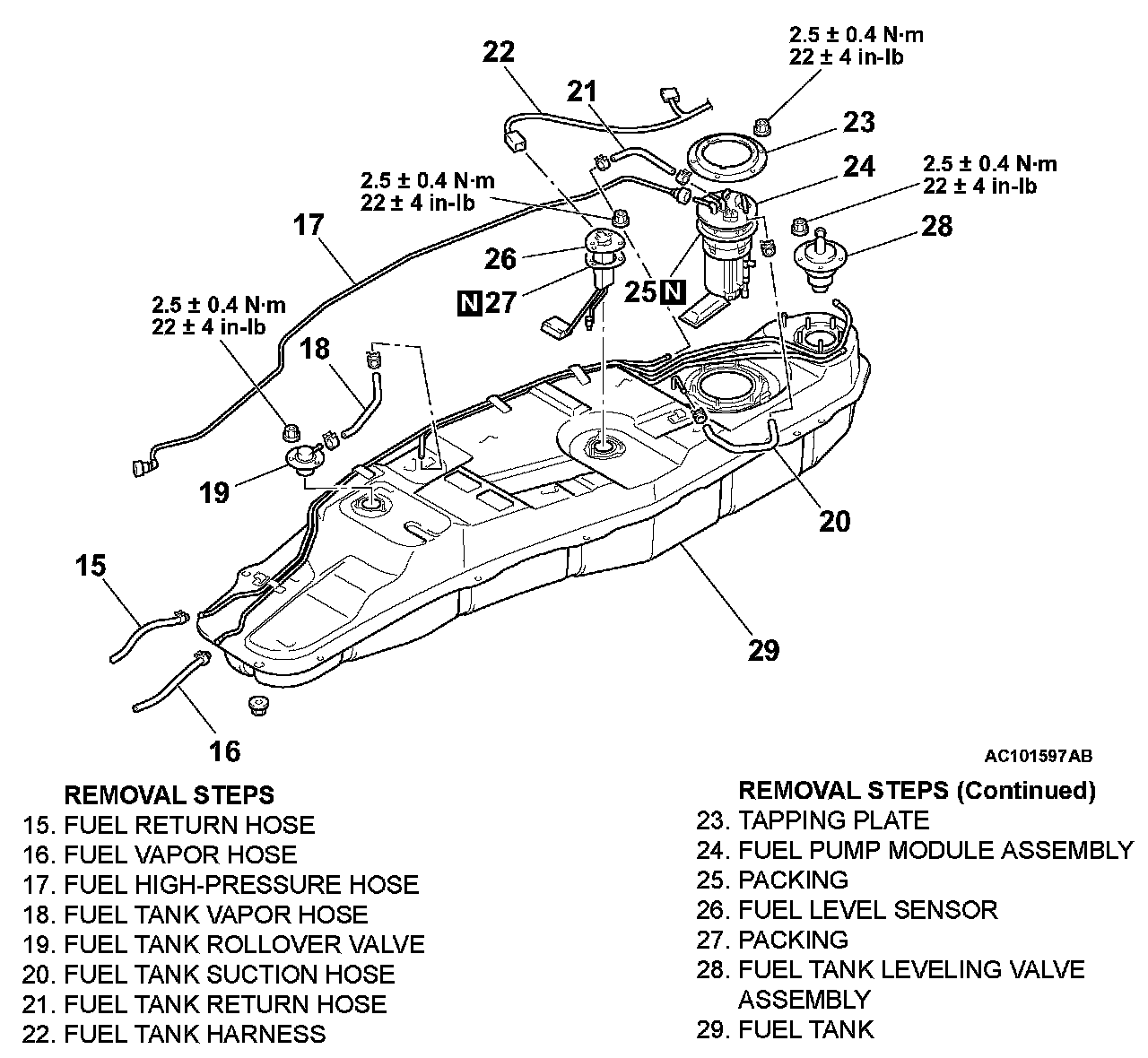

Fuel Tank Part 3:
Required Special Tool:
MB991348: Test Harness Set
REMOVAL SERVICE POINTS
<> FUEL HIGH-PRESSURE HOSE REMOVAL
CAUTION: As there will be some pressure remaining in the fuel pipe line, cover it with a shop towel to prevent fuel from spraying out.
Press the high-pressure fuel hose retainer to disengage the connector, and then remove the high-pressure fuel hose.
<> DISCONNECTION OF FUEL TANK BREATHER HOSE/DISCONNECTION OF FUEL TANK HARNESS CONNECTOR
Lower the fuel tank halfway to disconnect the fuel tank breather hose and the fuel tank harness connector.
INSTALLATION SERVICE POINT
>>A<< FUEL HIGH-PRESSURE HOSE INSTALLATION

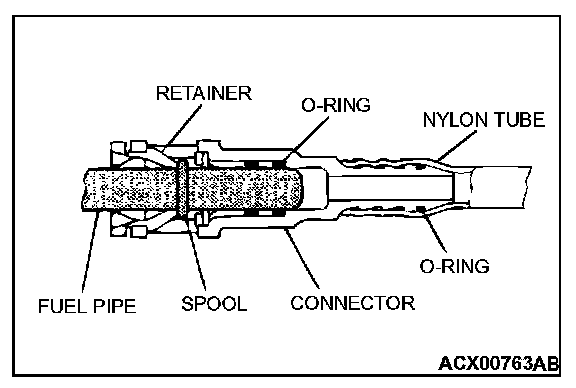

CAUTION: After connecting the quick action joint of the fuel high-pressure hose, pull the joint to disconnecting direction lightly to check that it is mounted securely. In addition, at this time confirm that there is a play of approx. 3 mm (0.12 inch) at the joint.
