Restraints and Safety Systems: Service Precautions

WARNING/CAUTION LABELS

Warning/Caution Labels:

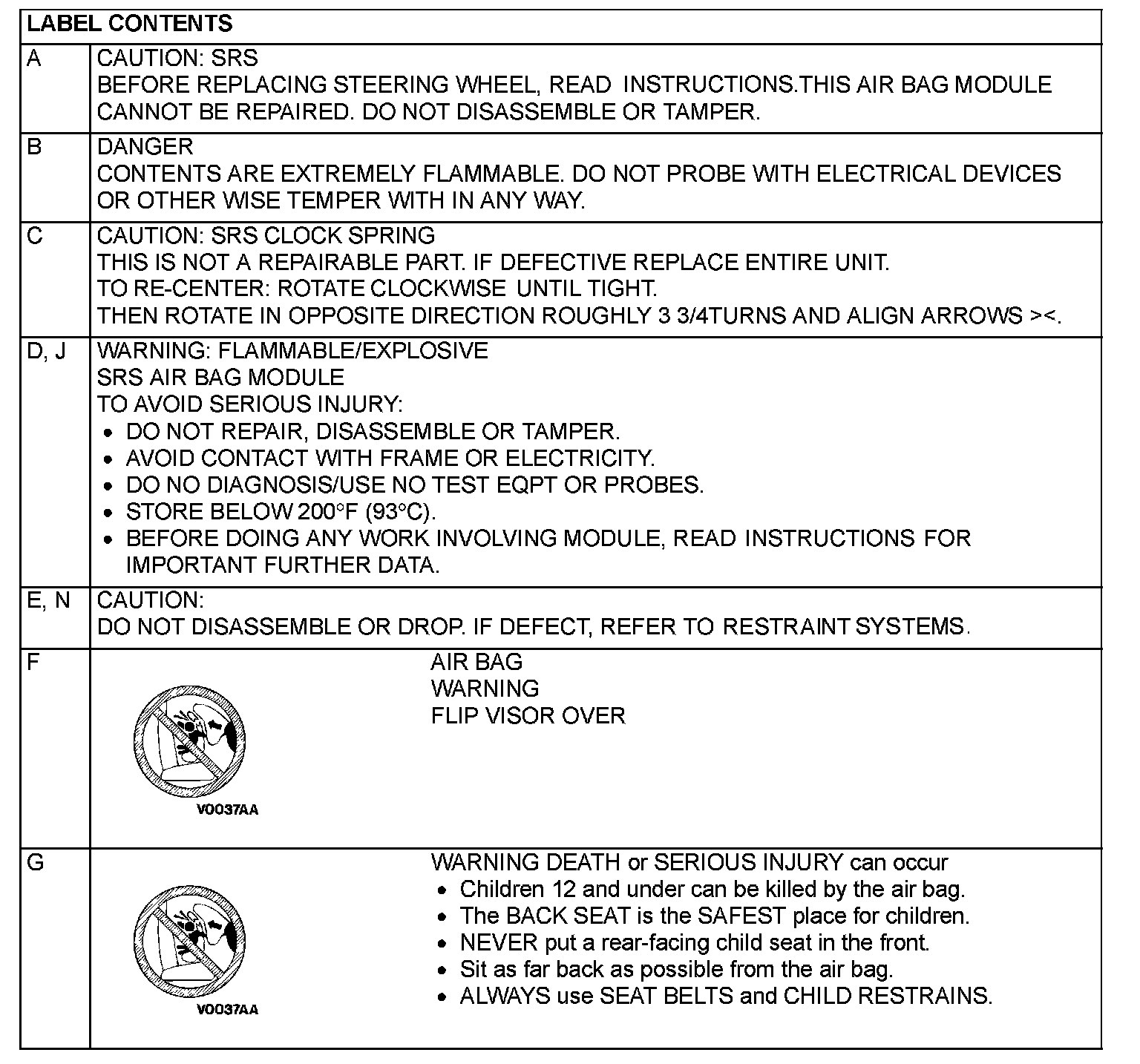

Label Contents Part 1:

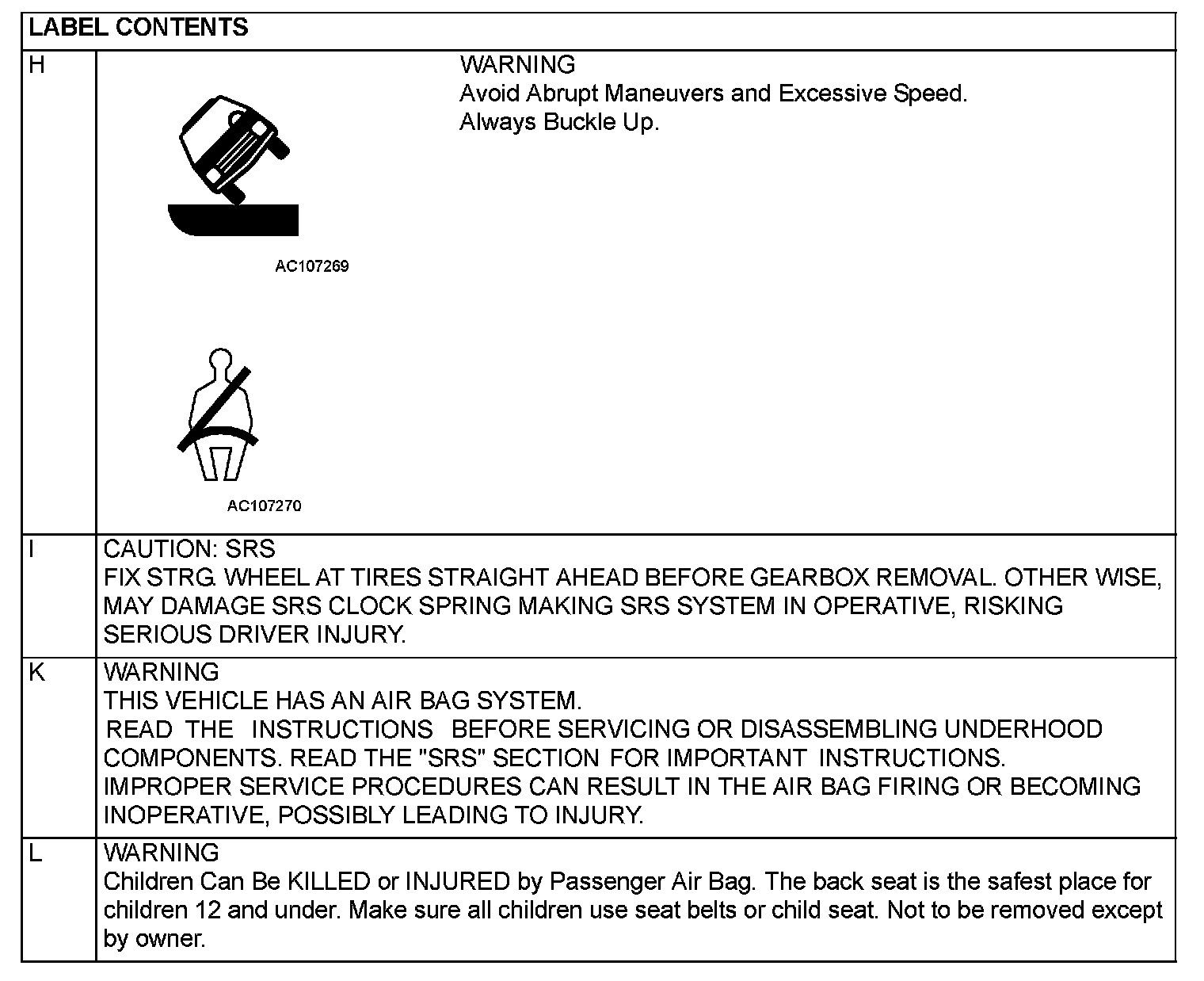

Label Contents Part 2:

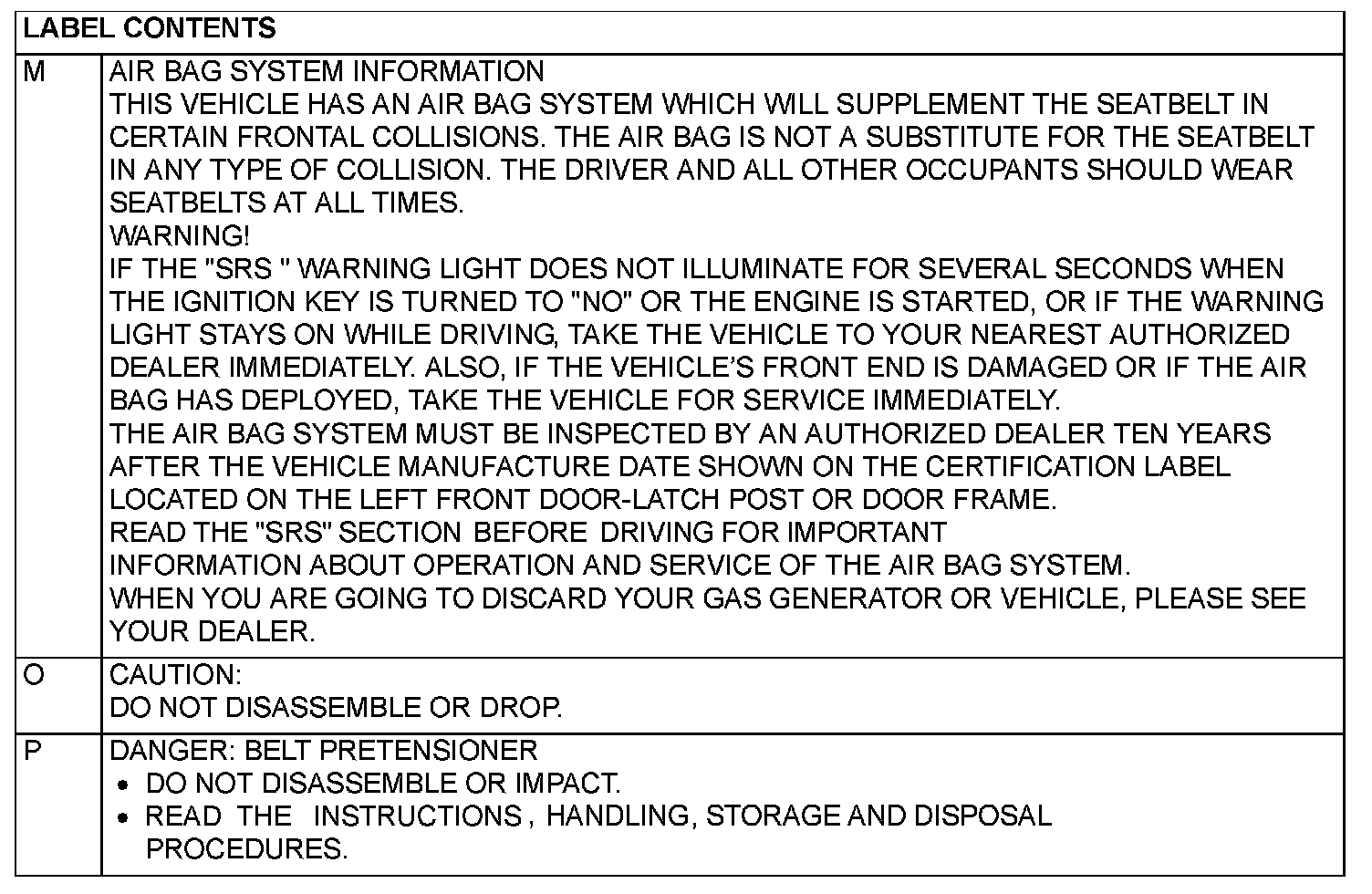

Label Contents Part 3:

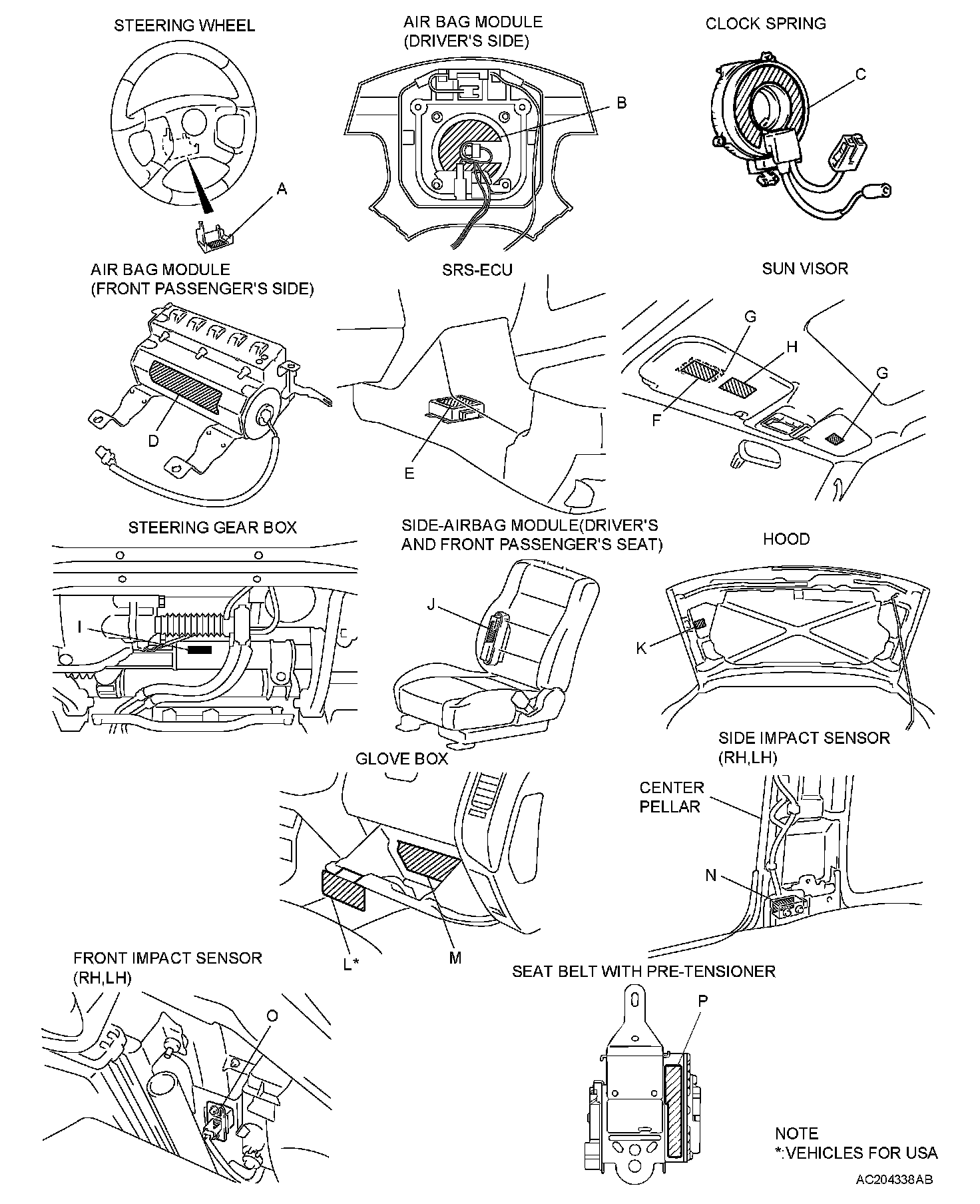

A number of caution labels related to the SRS are found in the vehicle, as shown in the illustration Follow label instructions when servicing SRS The label L is not to be removed except by owner If the other labels are dirty or damaged, replace them.
