Back Window Glass: Service and Repair

BACK DOOR WINDOW GLASS

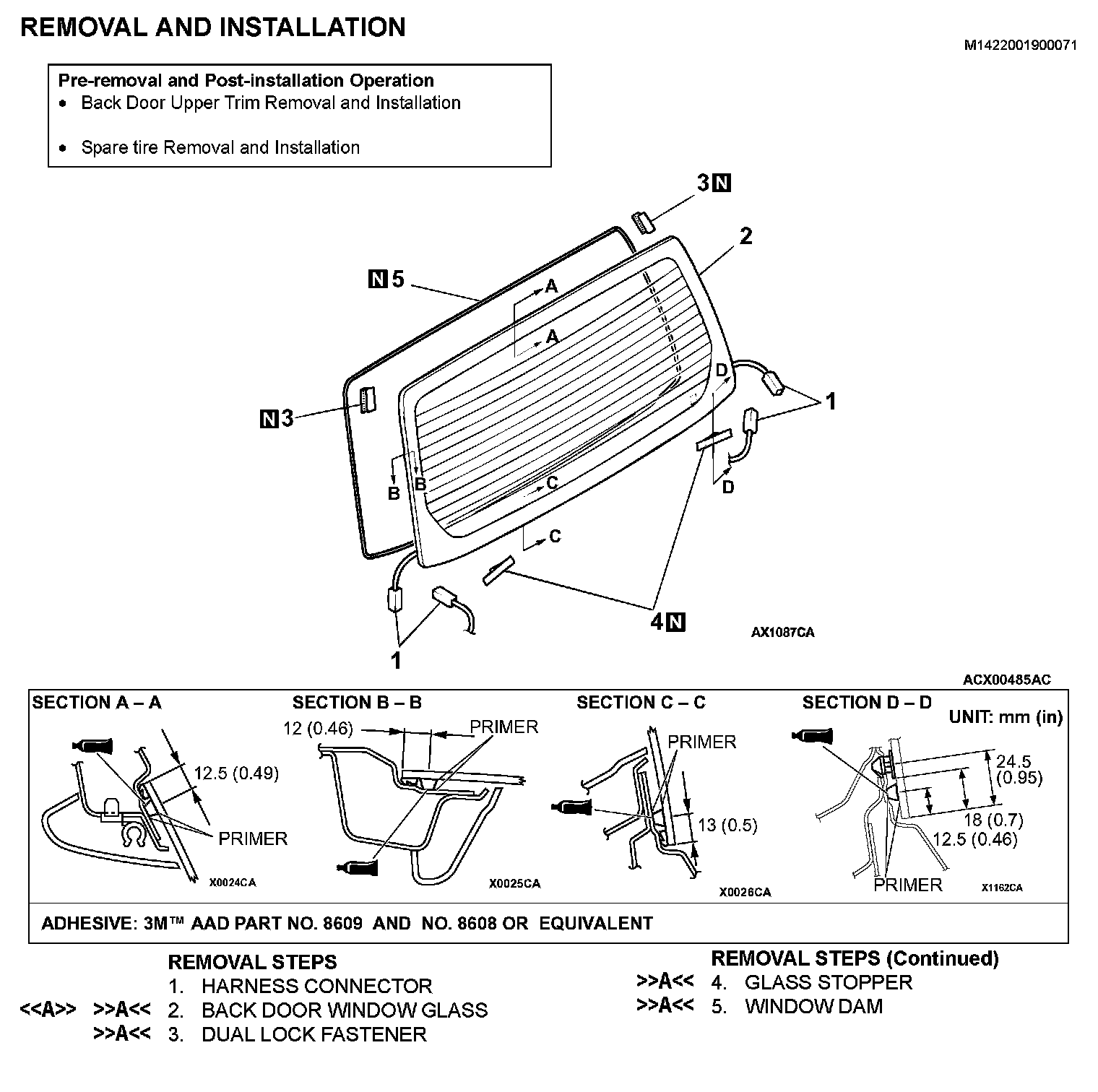

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

[[A]] BACK DOOR WINDOW GLASS REMOVAL

Remove the back door window glass using the same procedure as for the windshield.

INSTALLATION SERVICE POINT

]]A[[ WINDOW DAM/GLASS STOPPER/DUAL"LOCK"FASTENER/BACK DOOR WINDOW GLASS INSTALLATION




1. Use 3M TM AAD Part number 8906 or equivalent to degrease the inside and outside edges of the back door window glass and the surface of the body flange.

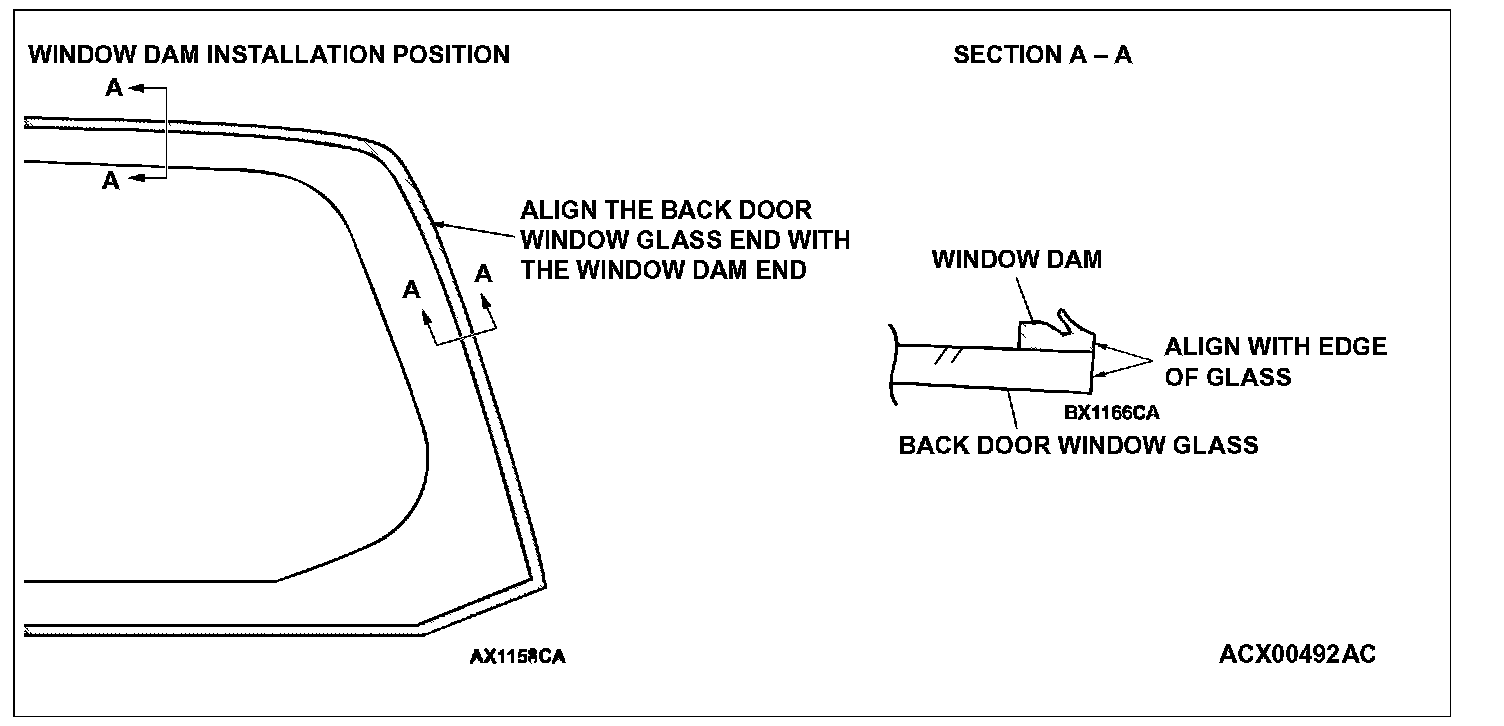

2. Mount the window dam.

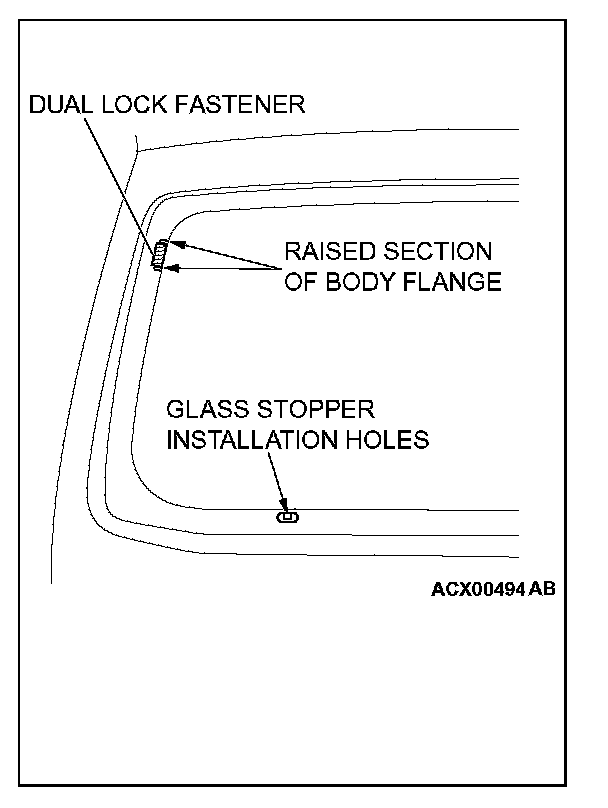

3. Attach the dual lock fastener at the specified position on the body flange.
4. Attach the dual lock fastener and the glass stopper on the back door window glass at the corresponding location to the mounting portion of the dual lock fastener and the glass stopper on the body flange.
5. Apply primer and adhesive.
6. Install the glass in the same way as for the windshield.
