Inside Rear View Mirror

INSIDE REAR VIEW MIRROR

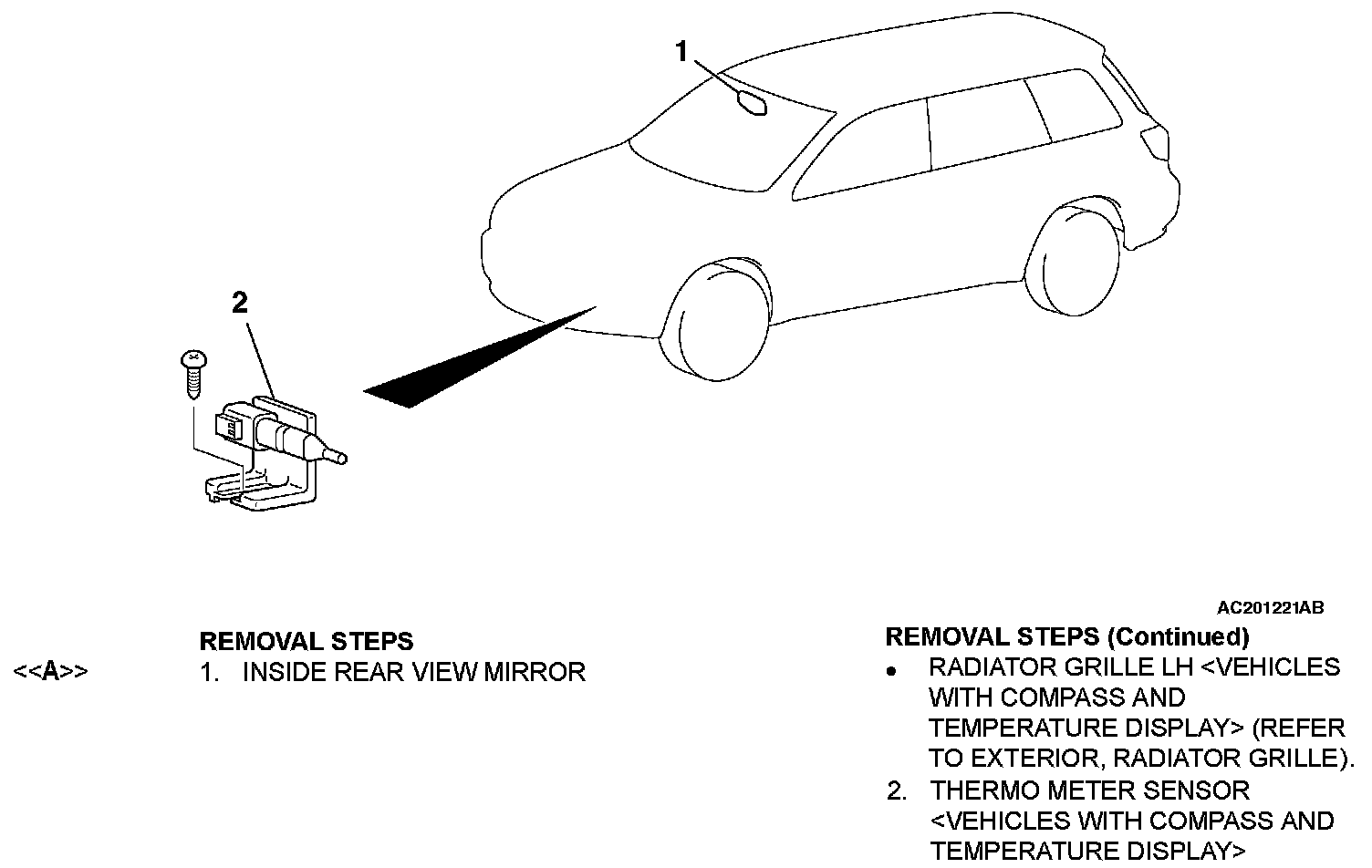

REMOVAL AND INSTALLATION

Removal Steps 1-2:






REMOVAL SERVICE POINTS

[[A]] INSIDE REAR VIEW MIRROR REMOVAL

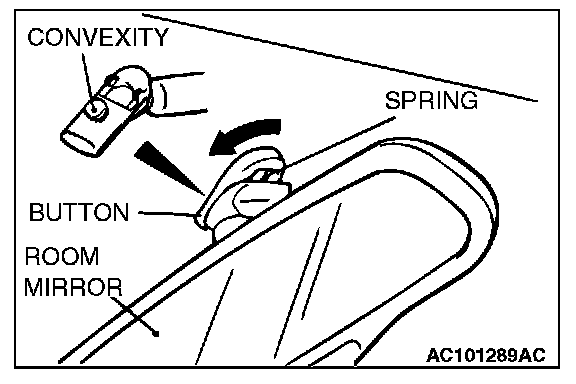

[Vehicles with compass and temperature display]






Pull out the mirror in the bottom direction after turning it 90 degrees in the direction of the arrow, as shown.

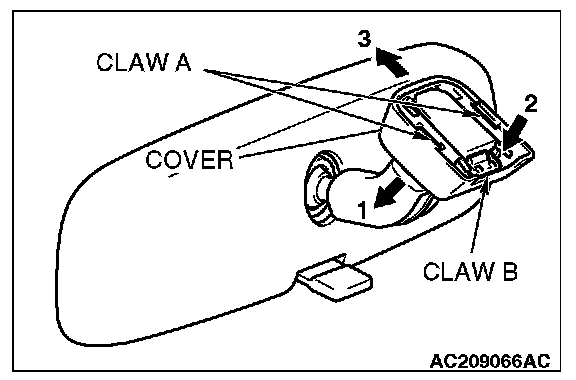

[Vehicles without compass and temperature display]






1. Disengage the claw A and lower the cover toward arrow 1 direction.
2. Push the claw B toward arrow 2 direction to unlock, and pull out the mirror toward arrow 3 direction.
