Outside Rear View Mirror

DOOR MIRROR

REMOVAL AND INSTALLATION

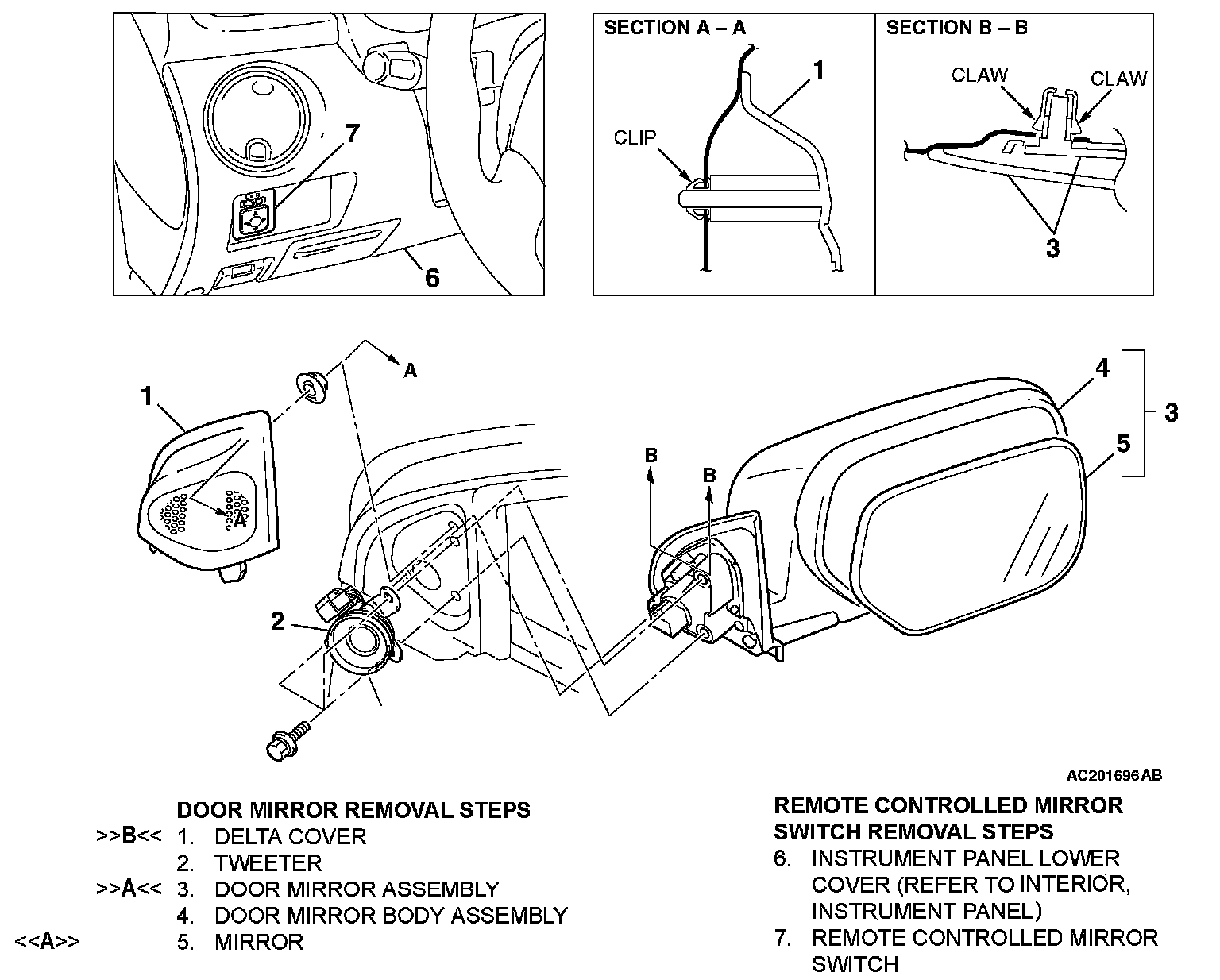

Removal Steps 1-7:

REMOVAL SERVICE POINT

[[A]] MIRROR REMOVAL






CAUTION: The claws of the mirror are prone to breakage when working in cold temperatures. Always warm up the mirror claws and their periphery to 20 °C (60 °F) or higher before handling.

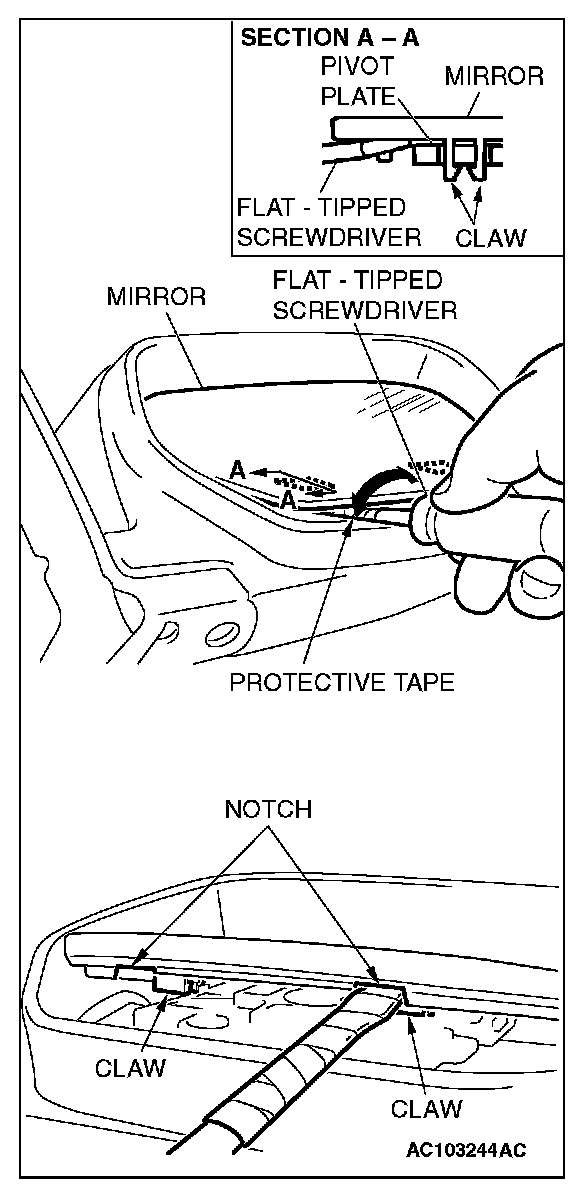

Slant the mirror upward with your hands. Then insert a flat-tipped screwdriver wrapped with protective tape between the pivot plate and mirror through the notch from behind the mirror. Now pry off the mirror claws and remove the mirror as shown.

INSTALLATION SERVICE POINT

]]A[[ DOOR MIRROR ASSEMBLY INSTALLATION

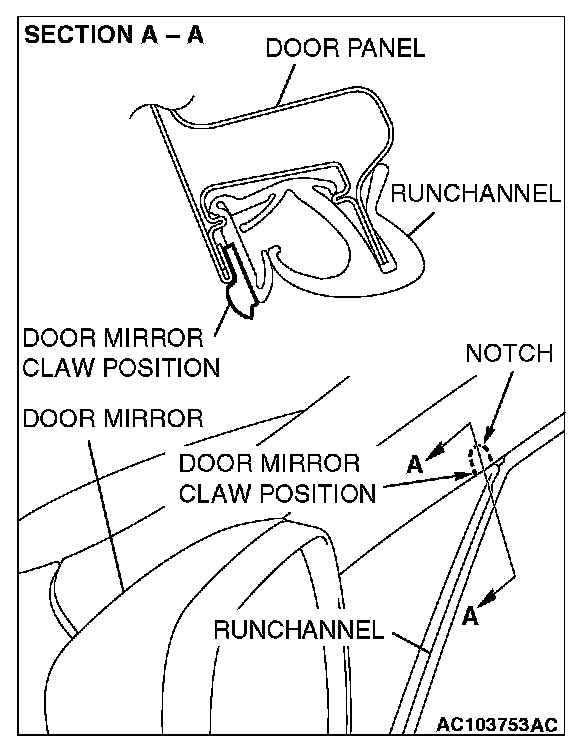

CAUTION: When assembling the door mirror, check to see that the claws of the door mirror are inserted into the notch of the front door runchannel.

]]B[[ DELTA COVER INSTALLATION






CAUTION: If the delta cover is placed with the clip on the door panel, the clip may be pushed into the door panel and fall off. Thus, special care is necessary.

Install the delta cover with the clip installed.
