Harmonic Balancer - Crankshaft Pulley
Harmonic Balancer - Crankshaft Pulley

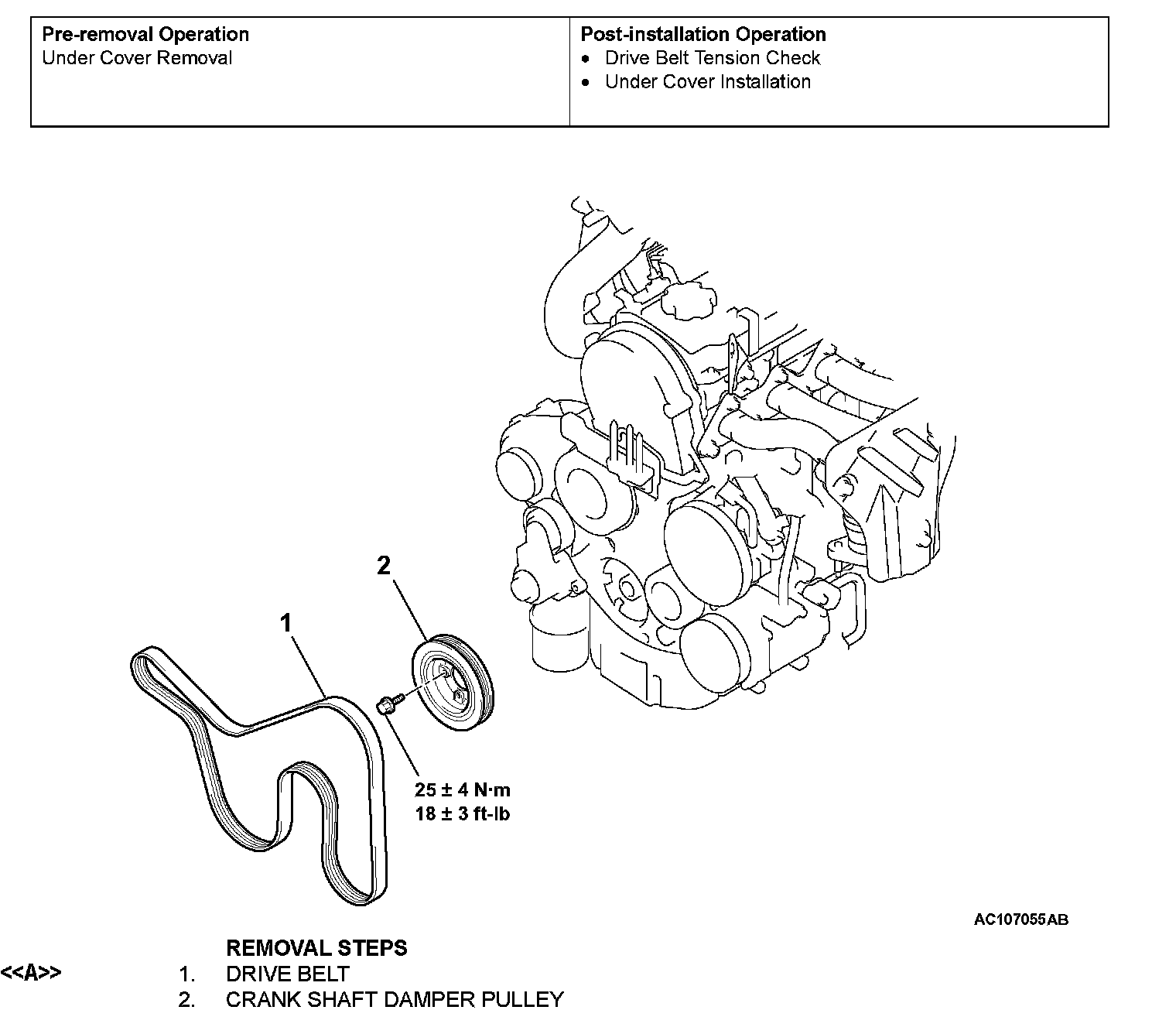

CRANKSHAFT PULLEY REPLACEMENT W/ RELATED COMPONENTS
