Fluid - Differential: Testing and Inspection

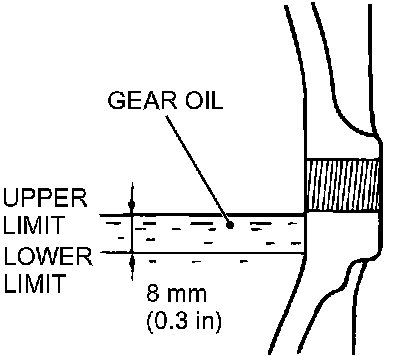

GEAR OIL LEVEL CHECK





Check that gear oil level is not 8 mm (0.3 inch) below the bottom of filler plug hole.
Specified gear oil: Hypoid gear oil API classification GL-5 or higher SAE viscosity Number 90, 80
