Electrical Diagrams

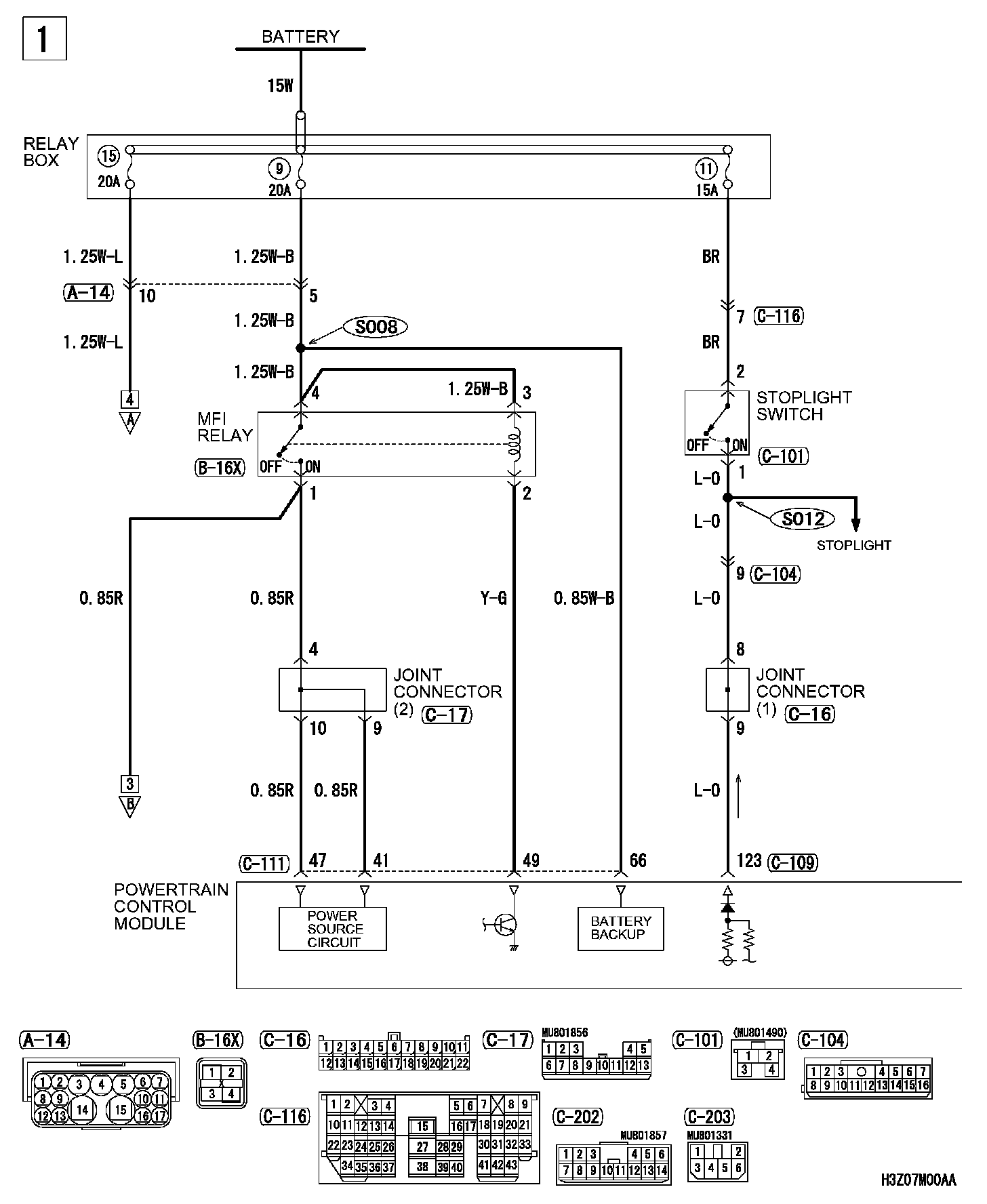

INVECS-II 4A/T Part 1:

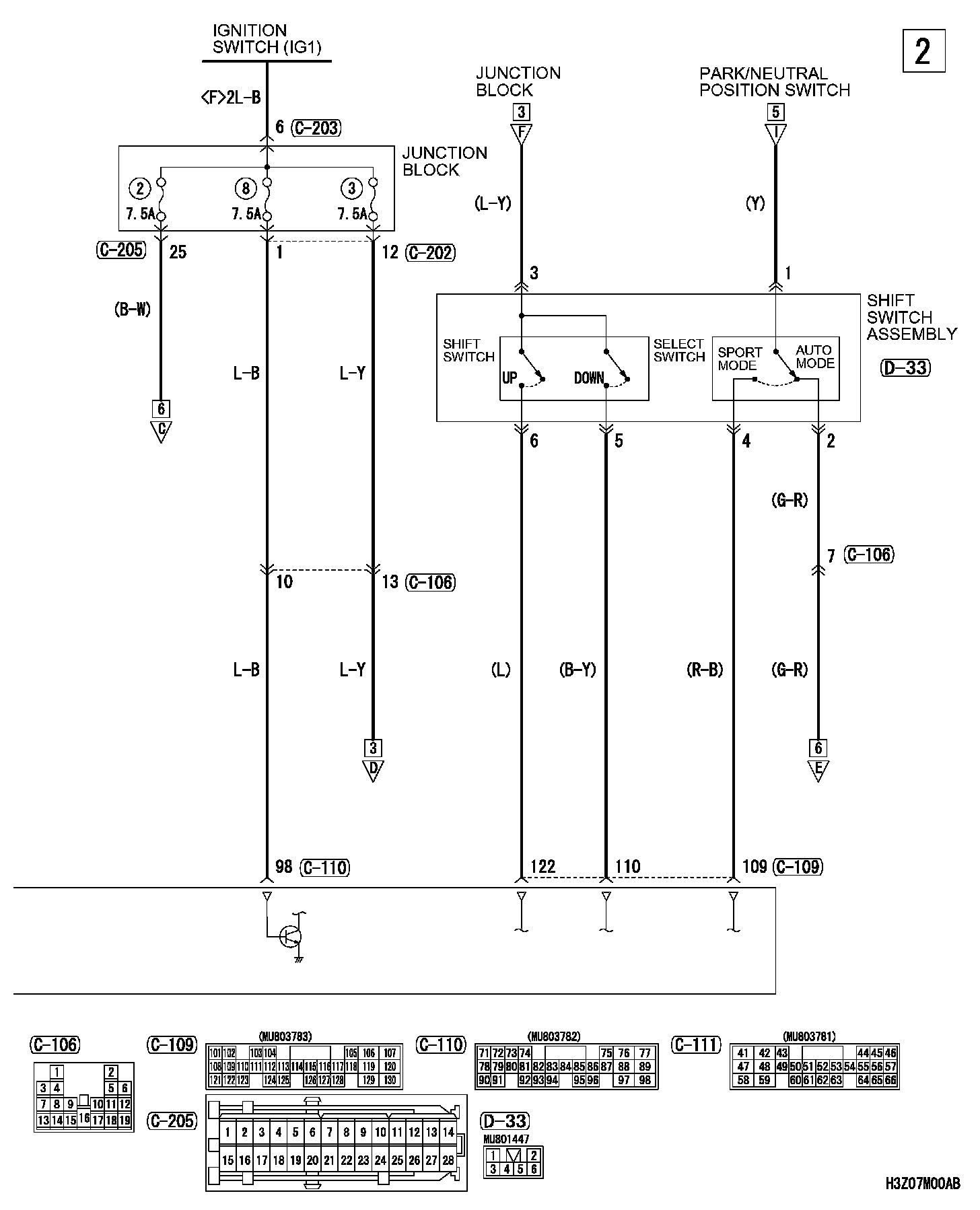

INVECS-II 4A/T Part 2:

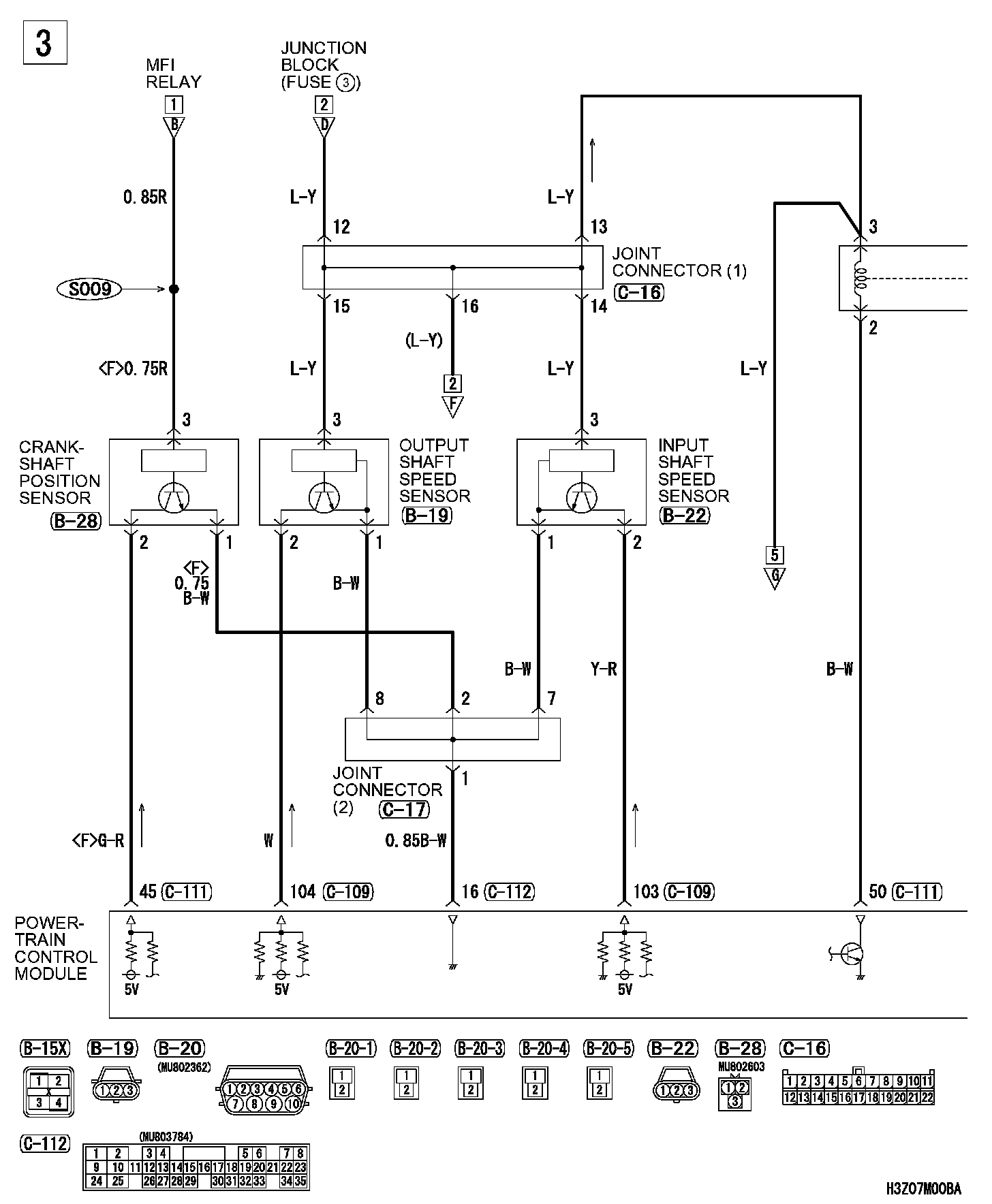

INVECS-II 4A/T Part 3:

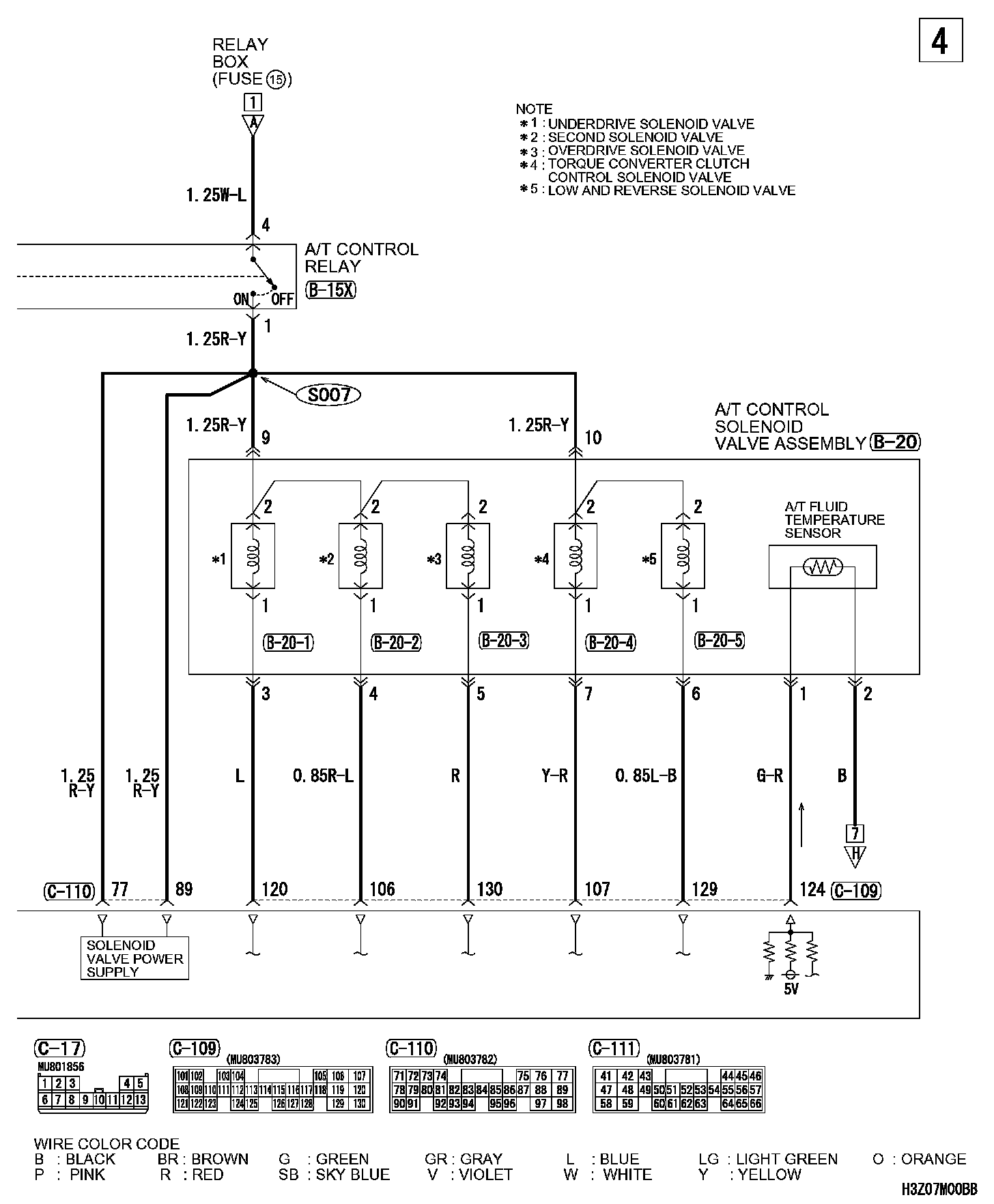

INVECS-II 4A/T Part 4:

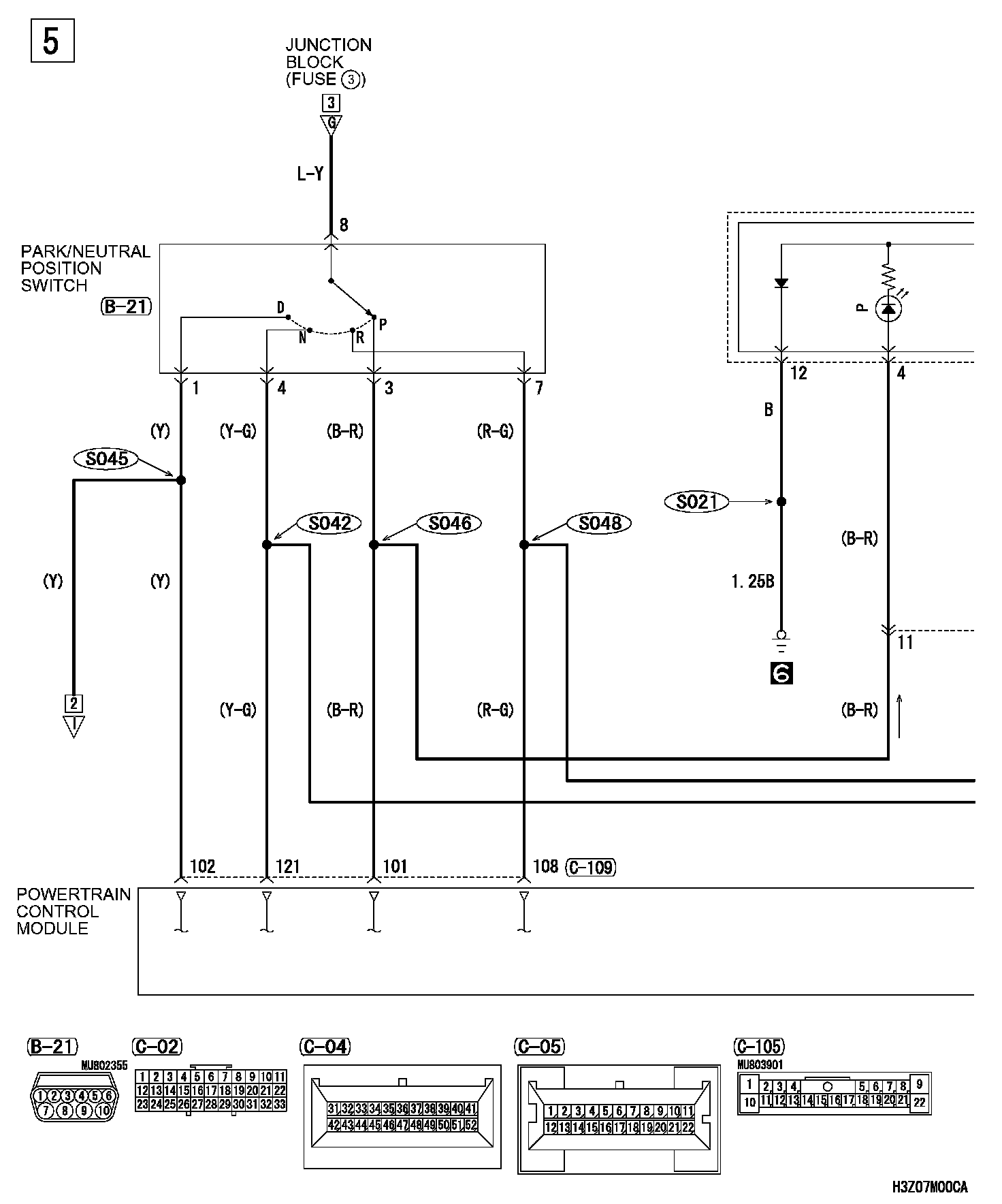

INVECS-II 4A/T Part 5:

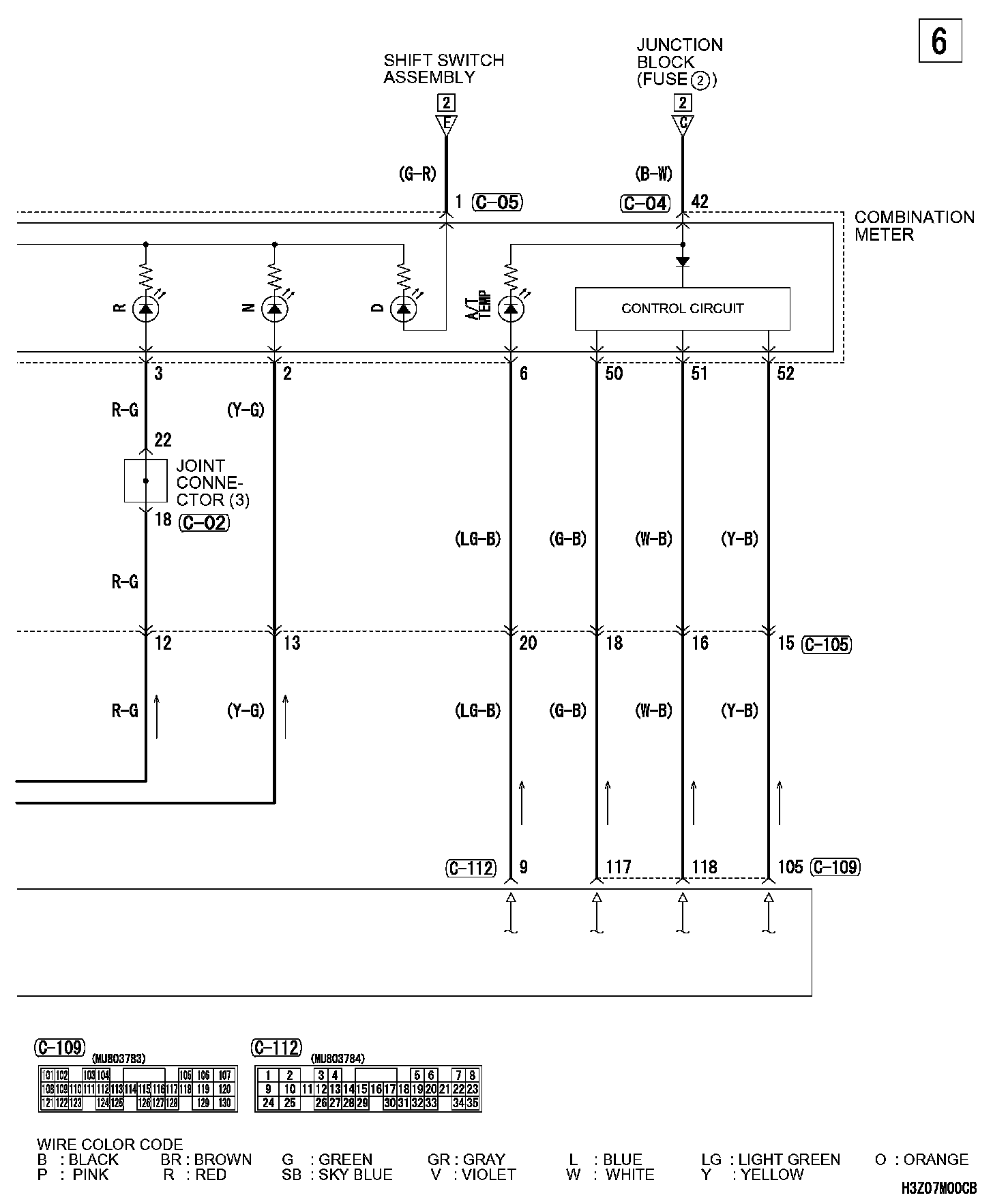

INVECS-II 4A/T Part 6:

INVECS-II 4A/T Part 7:

INVECS-II 4A/T Part 8:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
