Outlander AWD L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Drive/Propeller Shaft
>>
Fastener Tightening Specifications
Fastener Tightening Specifications
NOTE: This information has been updated by TSB 03-25-001

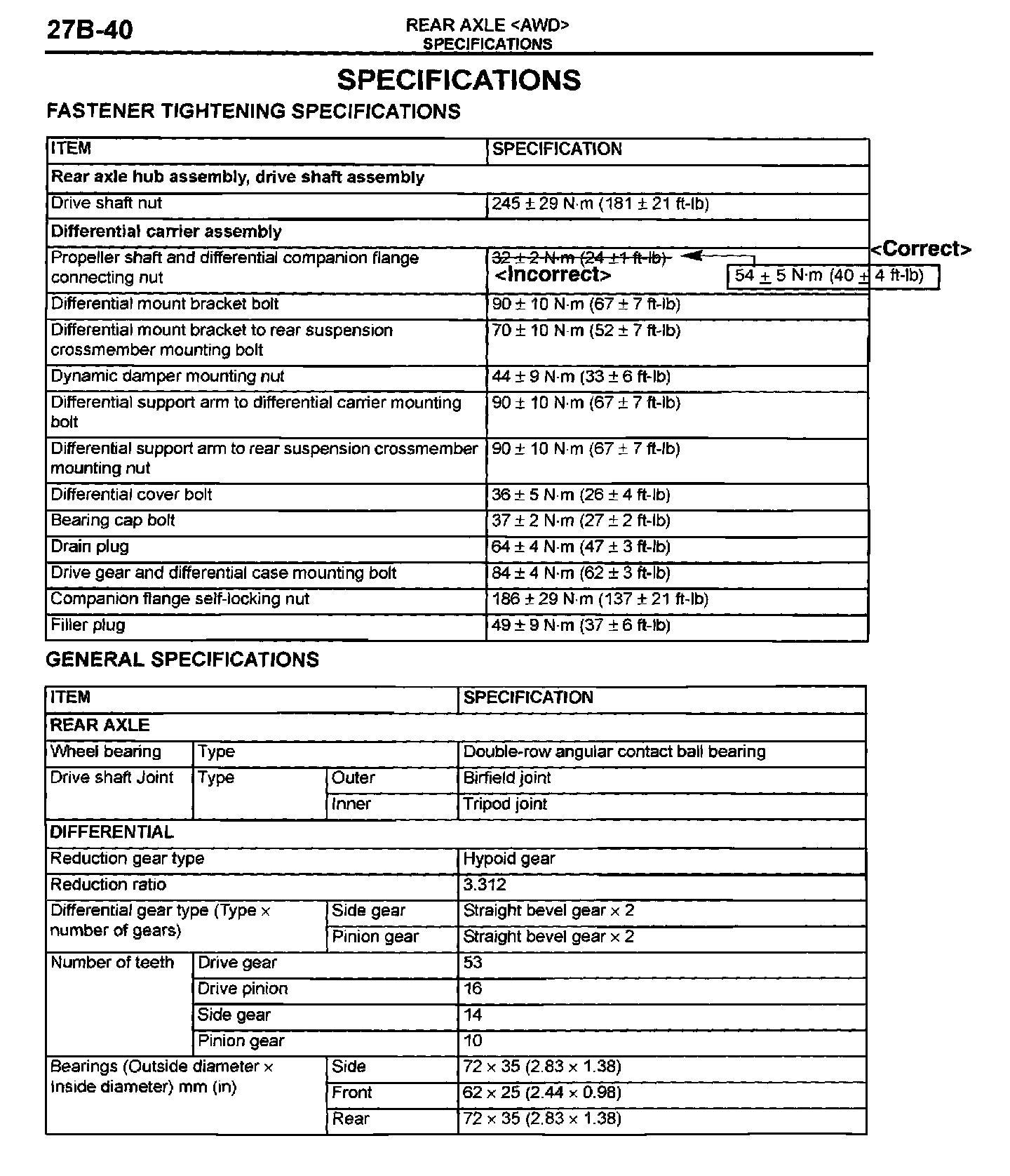

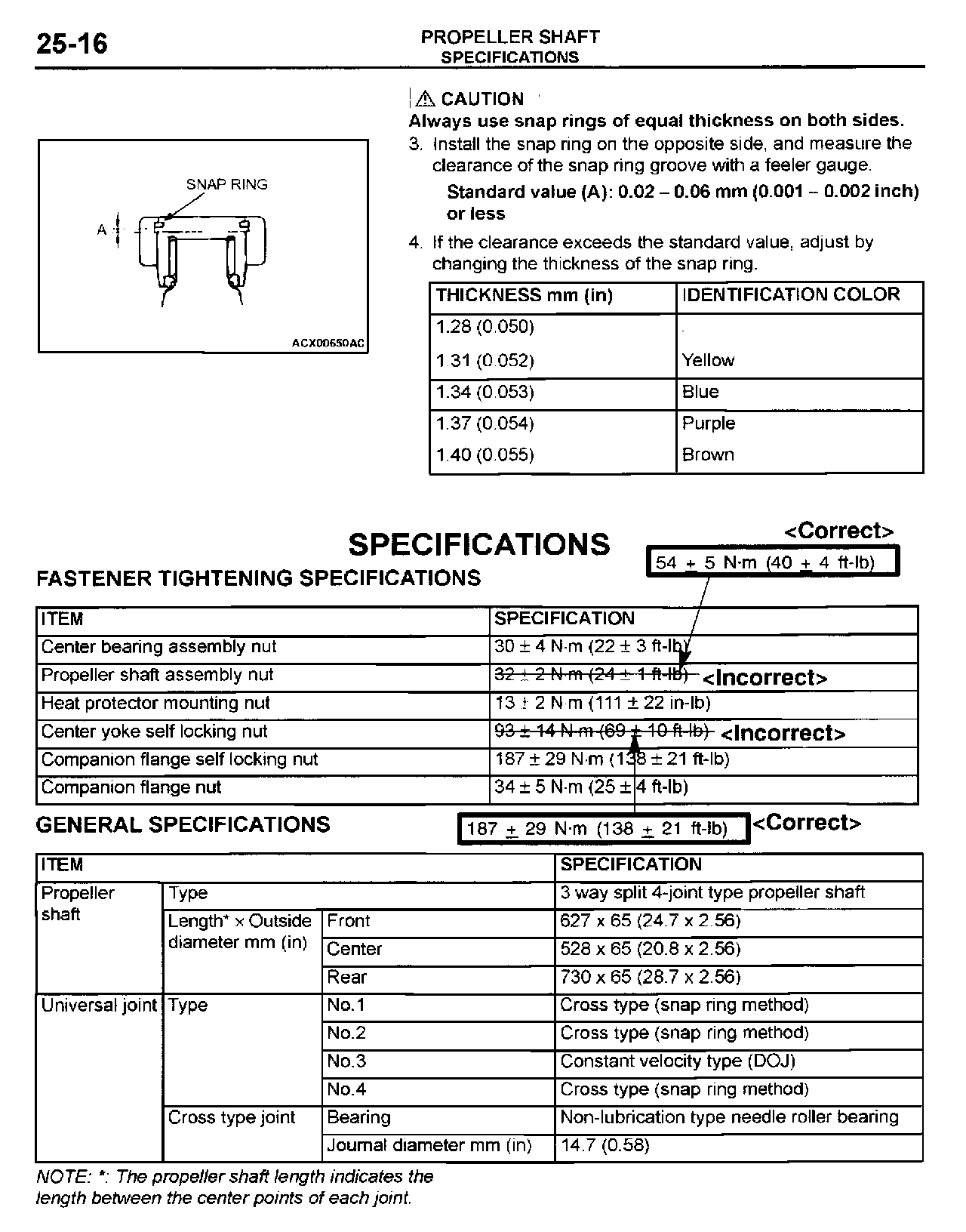

FASTENER TIGHTENING SPECIFICATIONS
UPDATED IMAGE
