ASSEMBLY
Required Special Tools:
^ MB990938: Bar
^ MB991115: Oil Seal Installer
^ MB990935: Installer Adapter
^ MB990932: Installer Adapter
^ MB990835: Drive Pinion Setting Gauge Set
^ MB990326: Preload Socket
^ MB990685: Torque Wrench
^ MB990728: Bearing Installer
^ MB990850: End Yoke Holder
^ MB990031: MB990699: Oil Seal Installer
^ MB990810: Side Bearing Puller

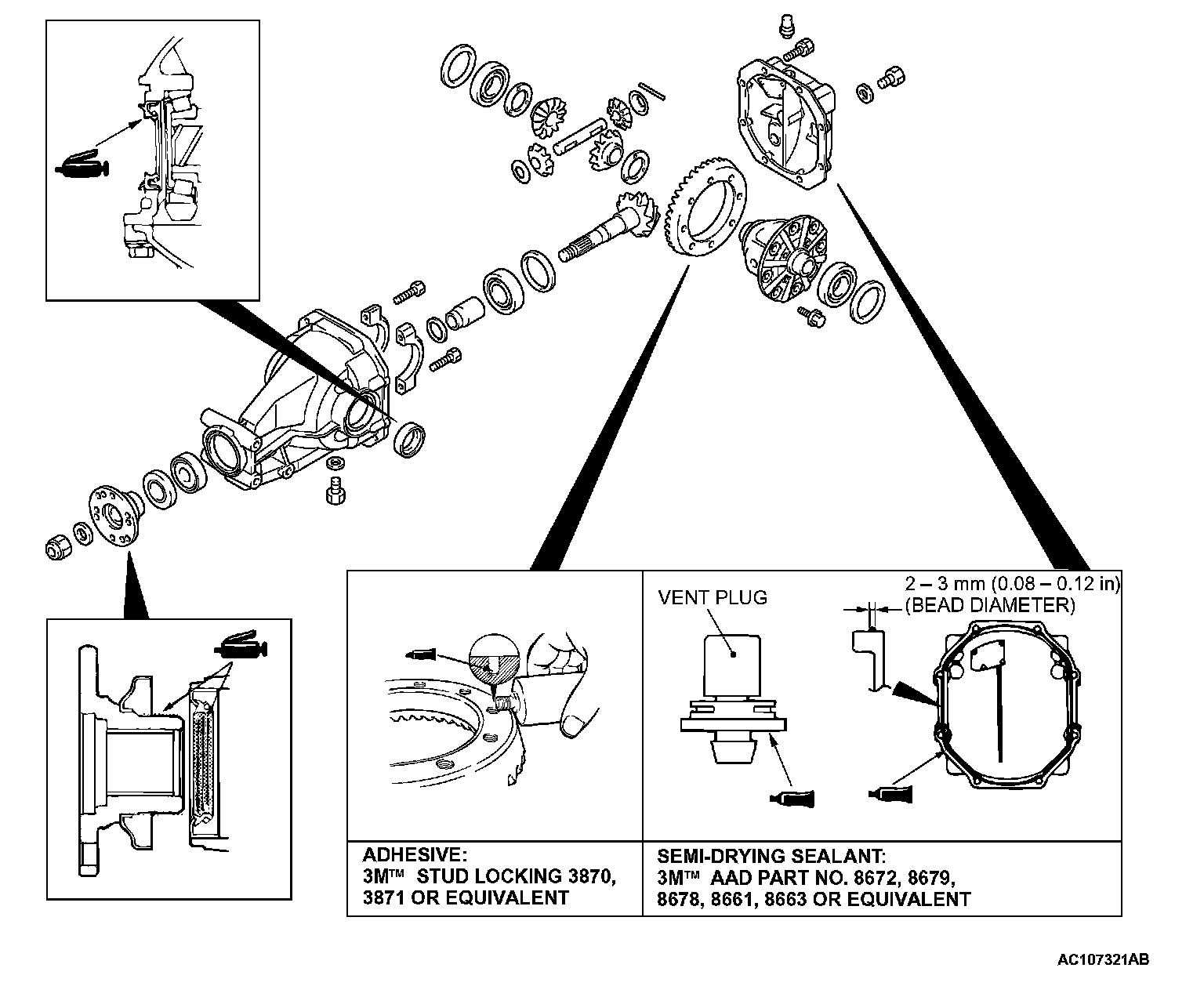

LUBRICATION AND ADHESIVE POINTS
ASSEMBLY SERVICE POINTS
>>A<< OIL SEAL PRESS-FITTING

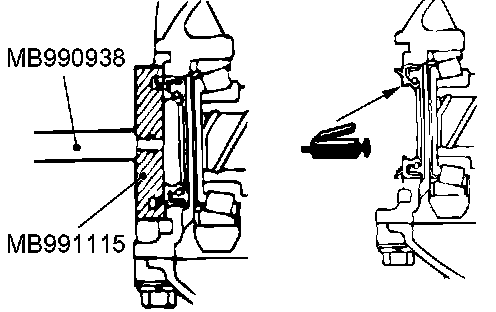

Use the special tools MB990938 and MB991115 to press-fit the oil seal.
>>B<< DRIVE PINION REAR BEARING OUTER RACE PRESS-FITTING
Use the special tools MB990938 and MB990935 to press-fit the drive pinion rear bearing outer race.
>>C<< DRIVE PINION FRONT BEARING OUTER RACE PRESS-FITTING

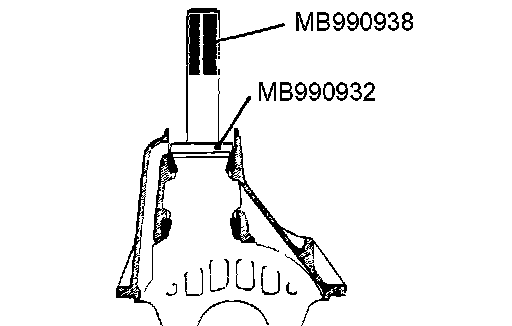

Use special tools MB990938 and MB990932 to press-fit the drive pinion front bearing outer race.
>>D<< DRIVE PINION HEIGHT ADJUSTMENT
Adjust the drive pinion height by the following procedures.
1. Apply multipurpose grease to the washer of special tool MB990836.

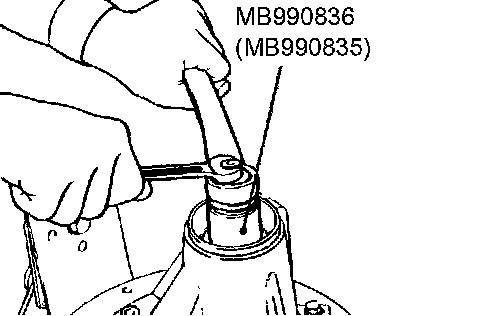

2. Install special tool MB990836, drive pinion front and rear bearing inner races to the differential carrier as shown in the illustration.
CAUTION: There should be no gear oil adhered to the bearing.
3. Tighten the nut of special tool MB990836 a little at a time, while measuring the turning torque of the drive pinion. Then confirm that the turning torque (without the drive pinion oil seal) is at the standard value.
Standard value
NOTE: Because the special tool cannot be turned one turn, turn it several times within the range that it can be turned; then, after fitting to the bearing, measure the turning torque.
4. Clean the side bearing seat of the differential carrier and bearing caps.
5. Place the special tool MB990392 in the side bearing seat of the differential carrier, and position the notch as shown in the illustration. Then install the bearing caps.

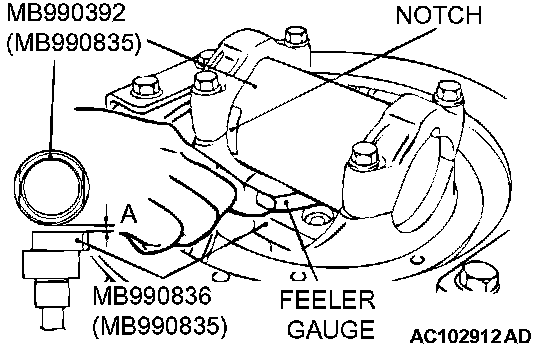

6. Use a feeler gauge to measure the clearance (A) between special tools MB990392 and MB990836.
7. Remove the bearing caps and the special tools MB990392 and MB990836.

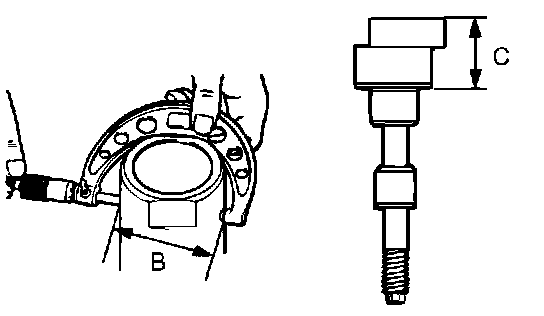

8. Use a micrometer to measure the shown dimensions (B, C) of special tools MB990392 and MB990836.

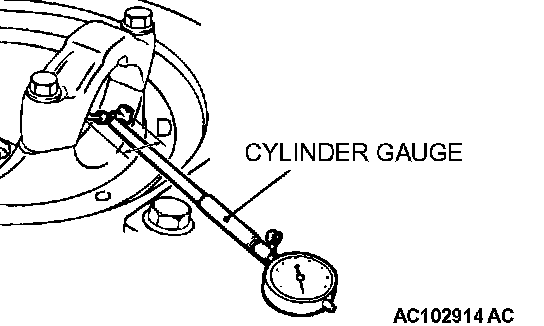

9. Install the bearing cap, and then use a cylinder gauge to measure the inside diameter (D) of the bearing cap.
10. Calculate thickness (F) of the required drive pinion rear shim by the following formula. Select a shim which most closely matches this thickness.
F = A + B + C - 1/2D- 86.00 mm (3.385 inches)

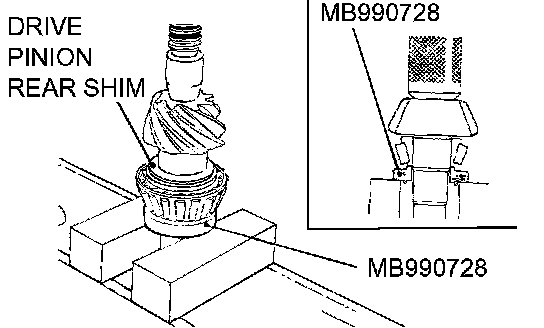

11. Fit the selected drive pinion rear shim(s) to the drive pinion, and press-fit the drive pinion rear bearing inner race by using the special tool MB990728.
>>E<< DRIVE PINION TURNING TORQUE ADJUSTMENT/ OIL SEAL INSTALLATION
Adjust the drive pinion turning torque by the following procedures:
1. Insert the drive pinion into the differential carrier, and then install the following parts in sequence from the carrier rear side: drive pinion spacer, drive pinion front shim, drive pinion front bearing inner race and companion flange.
NOTE: Do not install the oil seal.

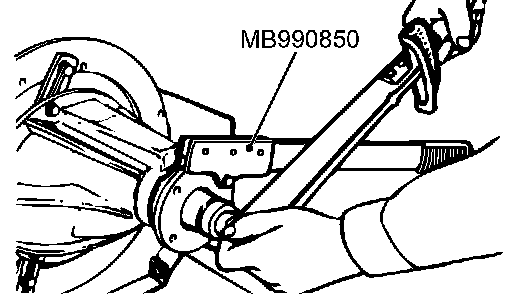

2. Tighten the companion flange self-locking nut to the specified torque while holding the companion flange with the special tool MB990850.
Tightening torque: 186 ± 29 Nm (137 ± 21 ft. lbs.)
CAUTION: There should be no gear oil adhered to the bearing.

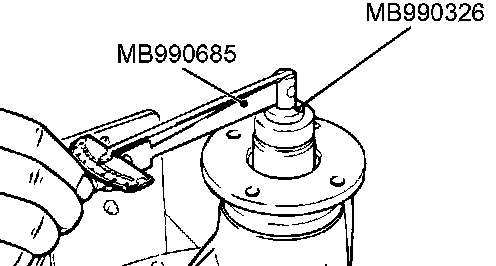

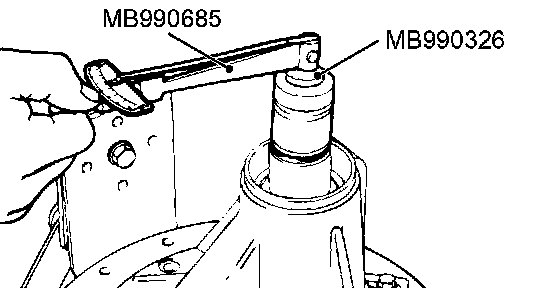

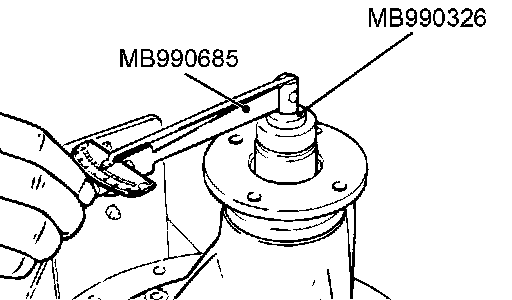

3. Use the special tools MB990685 and MB990326 to measure the drive pinion turning torque (without the drive pinion oil seal).

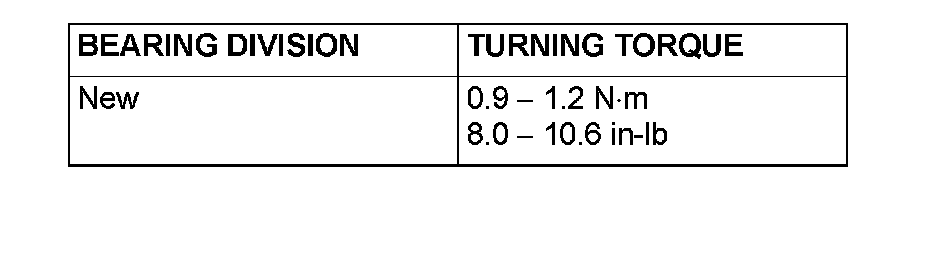

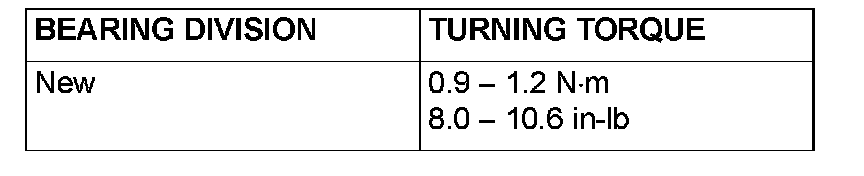

Standard value
4. If the drive pinion turning torque is not within the standard value, adjust the turning torque by replacing the drive pinion front shim(s) or the drive pinion spacer.

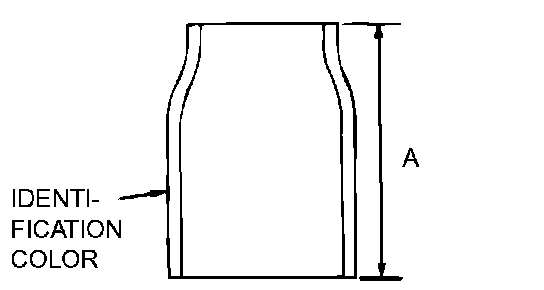

NOTE: When selecting the drive pinion front shims, if the number of shims is large, reduce the number of shims to a minimum by selecting the drive pinion spacers. Select the drive pinion spacer from the following two types.

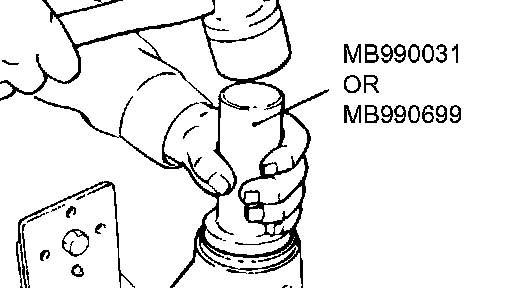

5. Remove the companion flange and drive pinion again. Then insert the drive pinion front bearing inner race into the differential carrier. Use special tool MB990031 or MB990699 to press-fit the drive pinion oil seal.

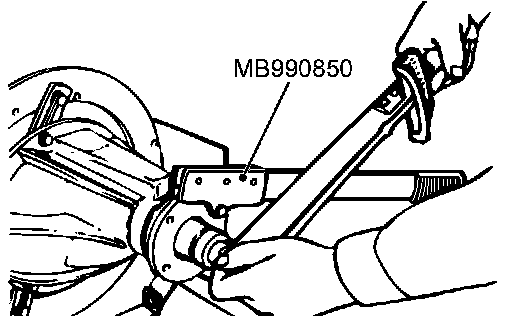

6. Install the drive pinion assembly and companion flange with the mating marks properly aligned. Tighten the companion flange self-locking nut to the specified torque while holding the companion flange with the special tool MB990850.
Tightening torque: 186 ± 29 Nm (137 ± 21 ft. lbs.)
7. Use the special tools MB990685 and MB990326 to measure the drive pinion turning torque (with drive pinion oil seal) to verify that the drive pinion turning torque complies with the standard value.
Standard value
8. If the turning torque is not within the standard value, check the tightening torque of the companion flange self-locking nut, and the installation of the oil seal.
>>F<< DIFFERENTIAL GEAR BACKLASH ADJUSTMENT
Adjust the differential gear backlash by the following procedure:

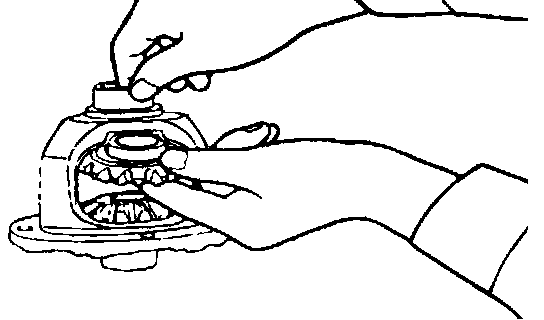

1. Assemble the side gears, side gear spacers, pinion gears, and pinion washers into the differential case.
2. Temporarily install the pinion shaft.
NOTE: Do not assemble the lock pin yet.

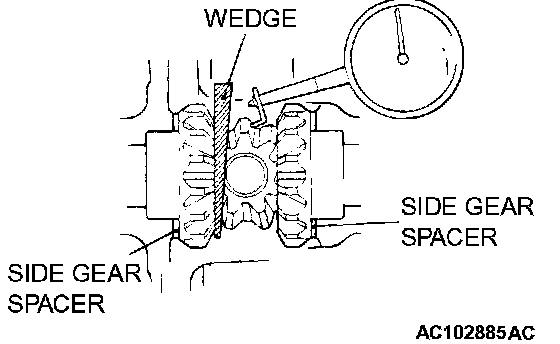

3. Insert a wedge between the side gear and the pinion shaft to lock the side gear.

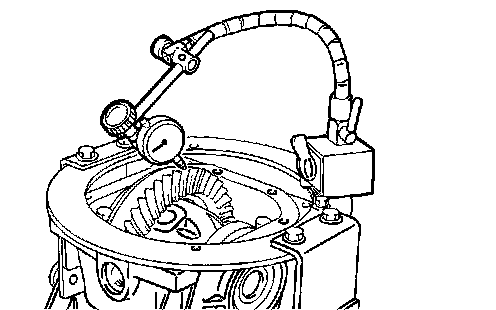

4. While locking the side gear with the wedge, measure the differential gear backlash with a dial indicator on the pinion gear. Measure by the same procedure for the other pinion gear.
Standard value: 0 - 0.076 mm (0 - 0.0030 inch)
Limit: 0.2 mm (0.01 inch)
5. If the backlash exceeds the limit value, adjust it by replacing the side gear spacers.
6. If adjustment is not possible, replace the side gears and pinion gears as a set.
Check that the backlash is within the limit value and that the differential gear turns smoothly.
>>G<< LOCK PIN INSTALLATION
1. Align the pinion shaft lock pin hole with the differential case lock pin hole, and drive in the lock pin.

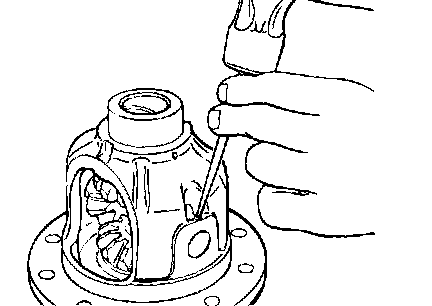

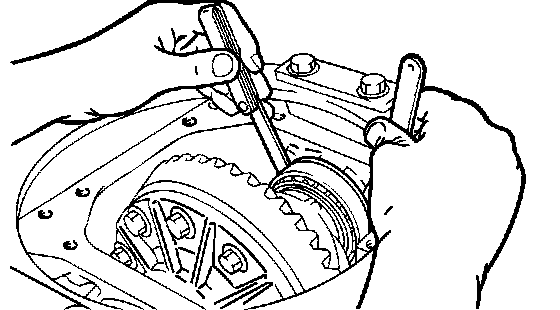

2. Stake the lock pin with a punch on both sides.
>>H<< DRIVE GEAR INSTALLATION
1. Clean the drive gear attaching bolts.

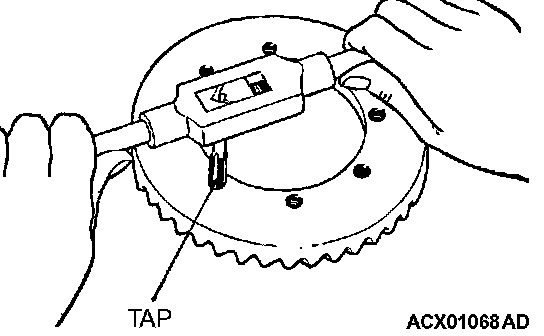

2. Remove the adhesive adhered to the threaded holes of the drive gear by turning the tap (M10 x 1.25). Clean the threaded holes by applying compressed air.

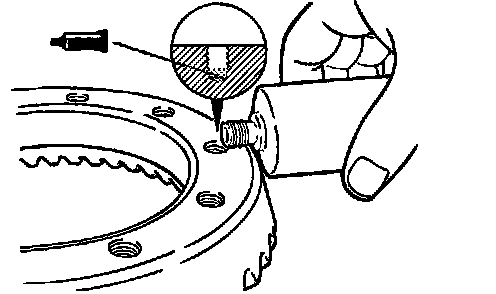

3. Apply 3M(TM) stud locking 3870, 3871 or equivalent to the threaded holes of the drive gear.
4. Install the drive gear onto the differential case with the mating marks properly aligned. Tighten the drive gear attaching bolts to the specified torque in a diagonal sequence.
Tightening torque: 84 ± 4 Nm (62 ± 3 ft. lbs.)
>>I<< DIFFERENTIAL SIDE BEARING INNER RACE INSTALLATION

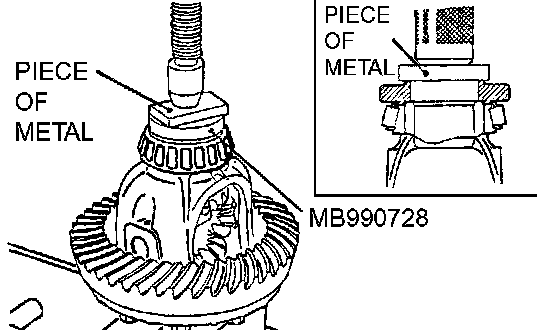

Use special tool MB990728 to press-fit the differential side bearing inner races into the differential case.
>>J<< BEARING CAP INSTALLATION/FINAL DRIVE GEAR BACKLASH ADJUSTMENT
Adjust the final drive gear backlash by the following procedure:
1. Assemble the differential case with the side bearing outer race to the differential carrier.
2. Press the differential case to one side to measure the clearance of the side bearing outer race and the differential carrier.
3. Select two pairs of side bearing spacers. Determine the thickness by adding 1/2 of the clearance to the preload 0.05 mm (0.002 inch).
4. Remove the side bearing by using the special tool MB99081 0.

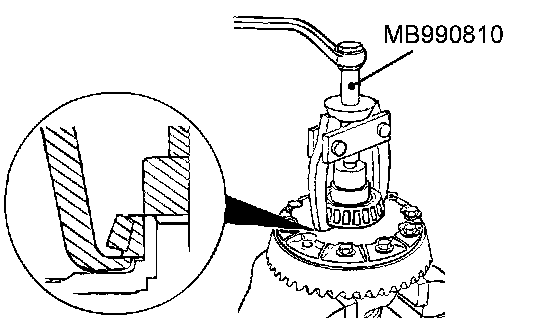

NOTE: Hook the claws of the special tool MB990810 with the side bearing inner race by using the notches (two areas) of the differential case side.
5. Assemble the selected side bearing spacers to each side.
6. Use the special tool MB990728 to press-fit the side bearing inner race into the differential case. After installing the outer race, assemble the differential case to the differential carrier.
7. Align the mating marks of differential carrier and the bearing cap with each other and tighten the bearing cap attaching bolts to the specified torque.
Tightening torque: 37 ± 2 Nm (27 ± 2 ft. lbs.)

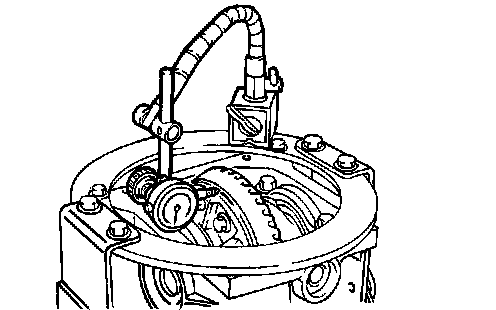

8. Measure the final drive gear backlash at four points or more on the circumference of the drive gear.
Standard value: 0.11 - 0.16 mm (0.004 - 0.006 inch)

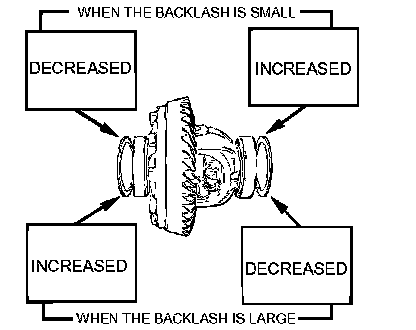

9. If the backlash is not within the standard value, move the side bearing spacer as shown in the illustration to adjust the backlash.
NOTE: The increment of side bearing spacer must be the same as the decreased amount.
10. Inspect the tooth condition at the final drive gear and replace if required.
11. Measure the drive gear runout.
Limit: 0.05 mm (0.002 inch)
12. If drive gear runout exceeds the limit, remove the differential case and then the drive gears, moving them to different positions and reinstall them.
13. If adjustment is not possible, replace the differential case or drive gear and drive pinion as a set.
