Windows: Description and Operation
POWER WINDOWSGENERAL DESCRIPTION CONCERNING THE POWER WINDOWS

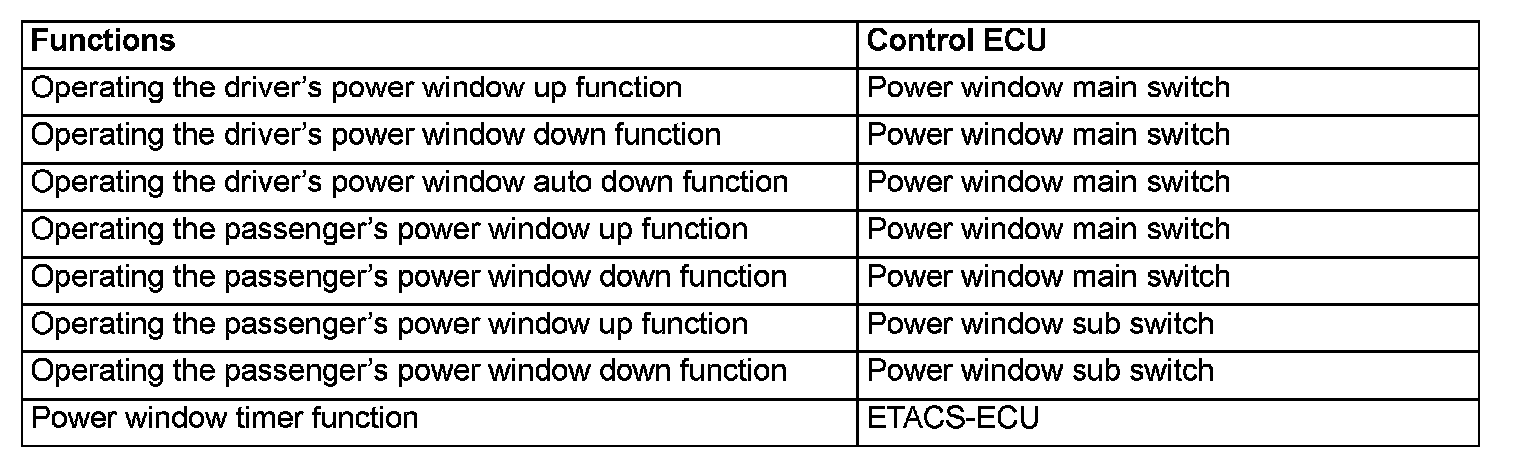

The ECUs affect the functions and control of the power windows.

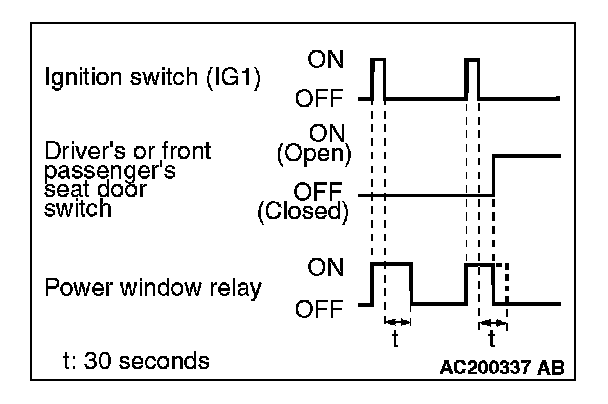

POWER WINDOW TIMER FUNCTION
When the ignition switch is turned to the "ON" position, the power window relay are turned ON. After the ignition switch is turned OFF, the system continues to turn ON the power window relay for about 30 seconds and to enable the opening and closing of the door window by the power window switch. When the driver's or front passenger's door is opened while the timer is in operation, the power window relay will be turned OFF.
