Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2003
>>
Outlander FWD L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Camshaft, Engine
Camshaft, Engine

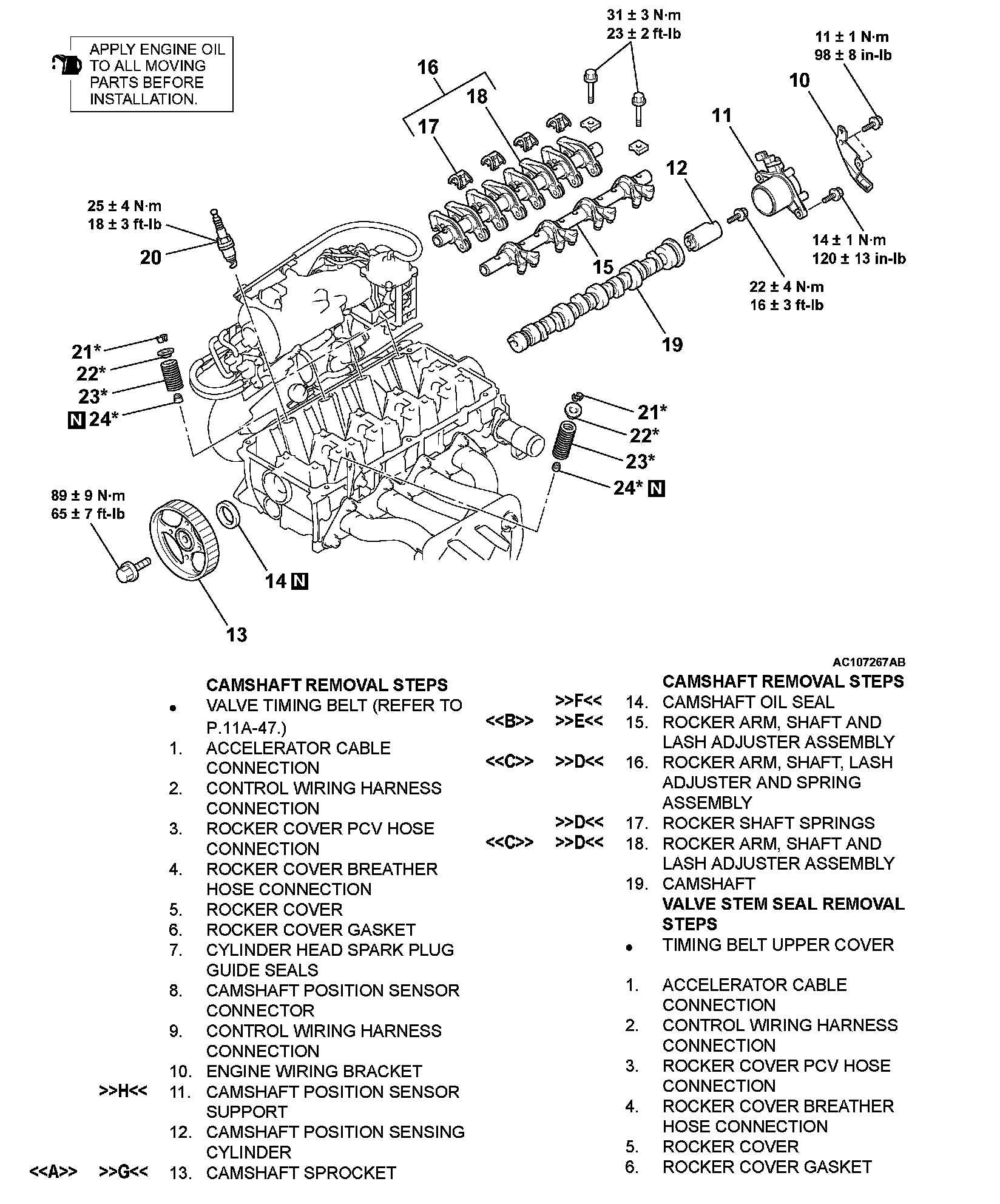

CAMSHAFT
AND VALVE STEM SEAL REPLACEMENT W/ RELATED COMPONENTS
