Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2003
>>
Outlander FWD L4-2.4L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>

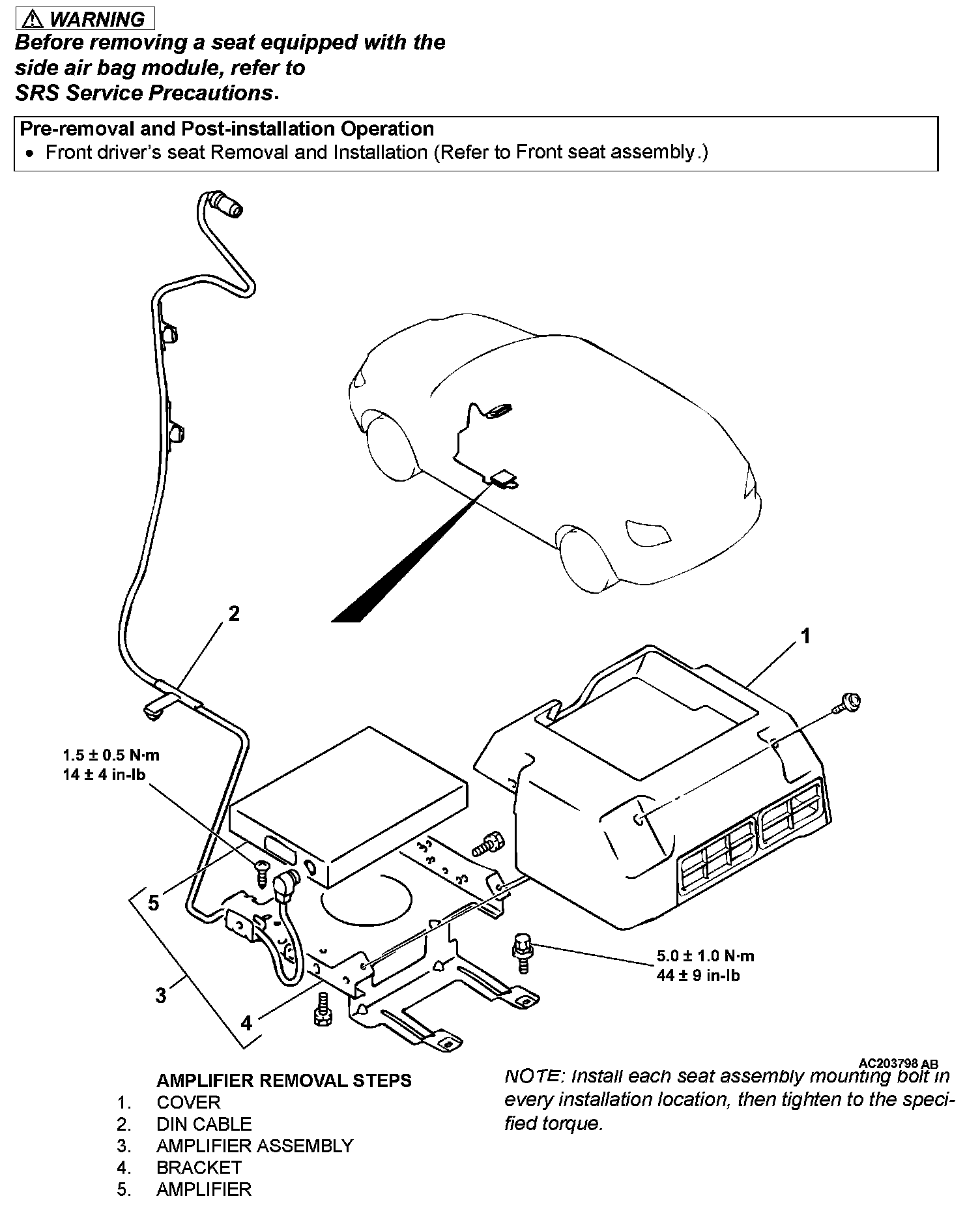

Amplifier, Sound System
Amplifier, Sound System
Amplifier:
ITEMS
SPECIFICATIONS
Amplifier
bracket mounting screw
1.5 ± 0.5 Nm (14 ± 4 in-lb)
Amplifier
bracket mounting bolt
5.0 ± 1.0 Nm (44 ± 9 in-lb)
