Automatic Transmission Control Component Layout

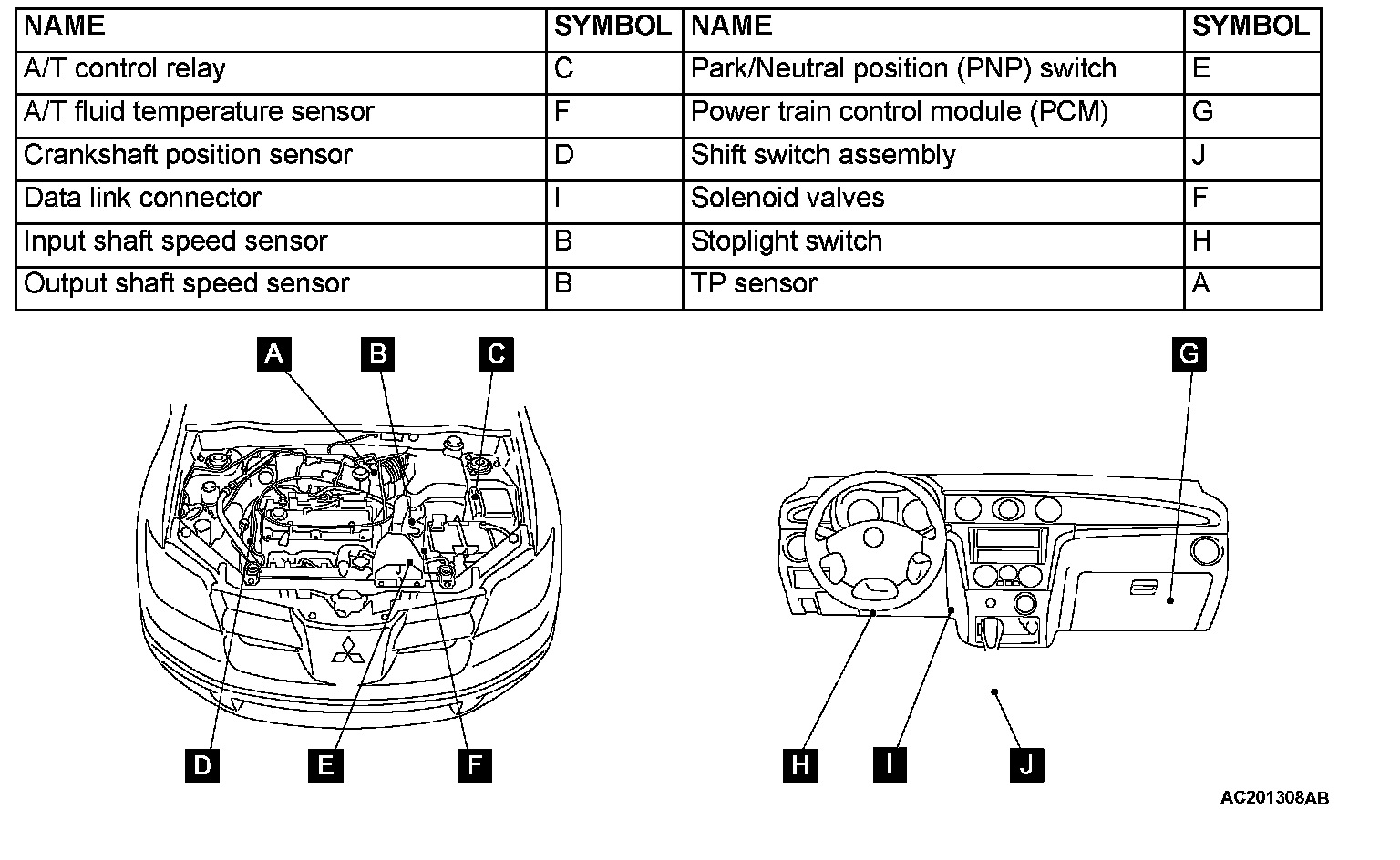

Part 1 Of 3:

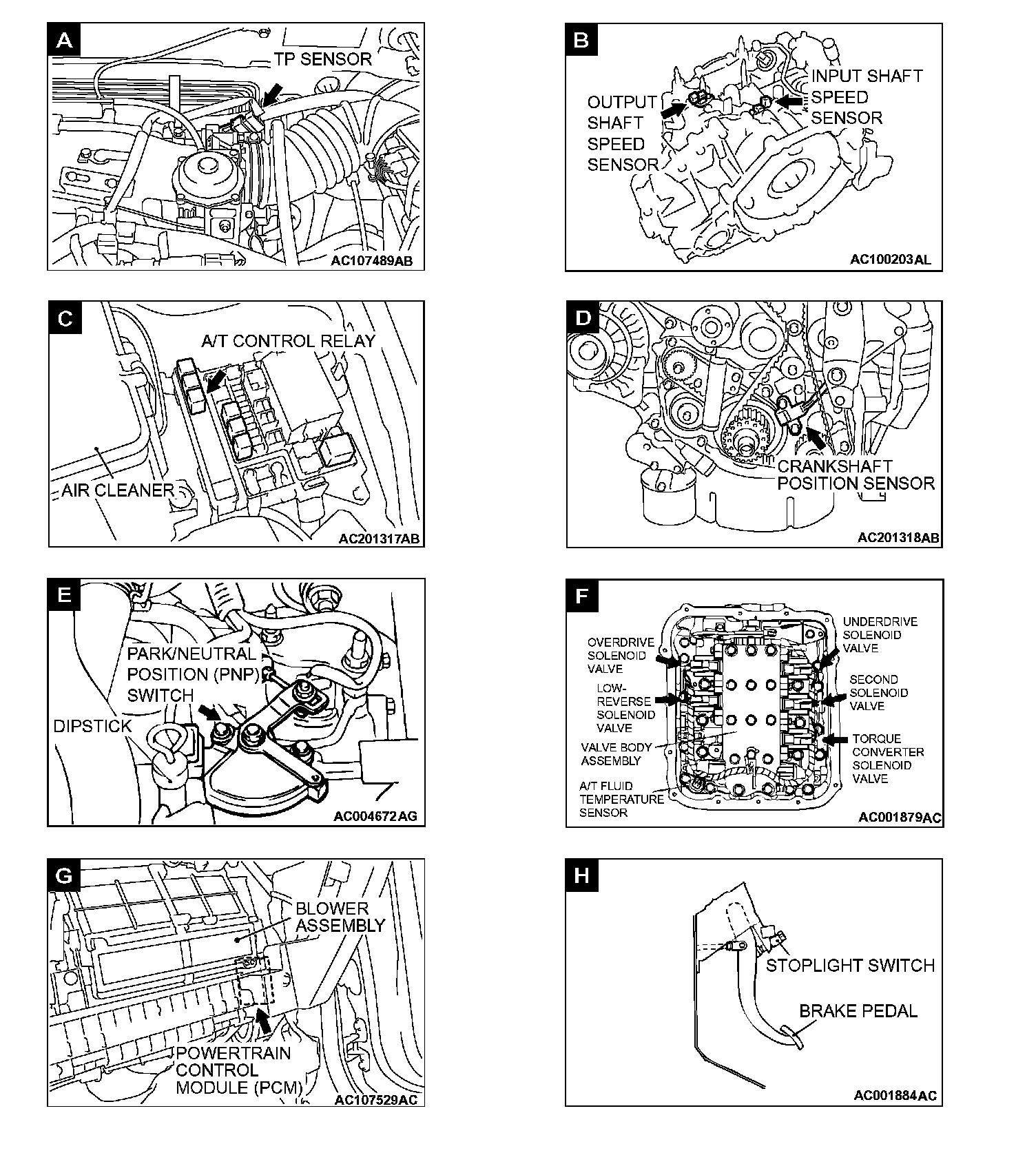

Part 2 Of 3:

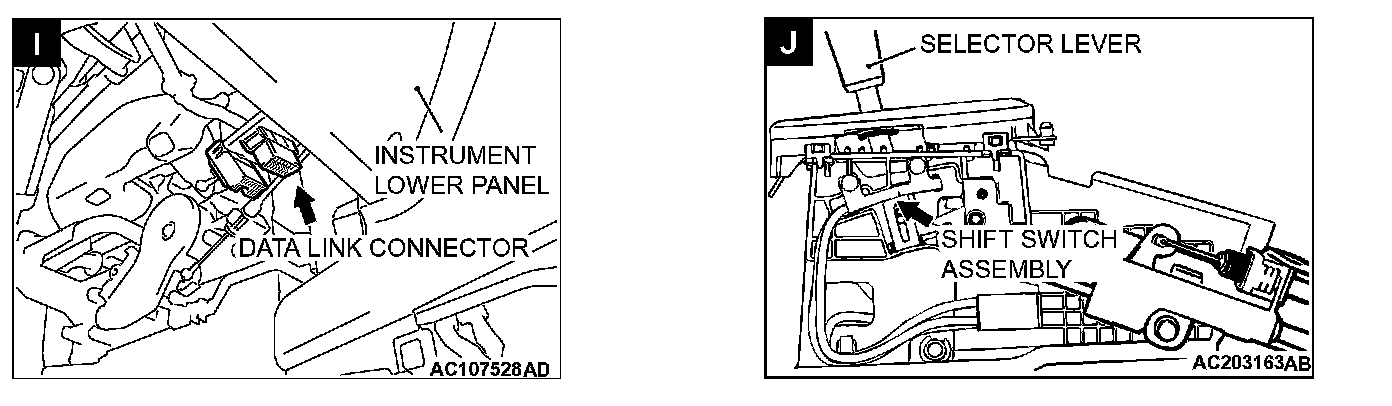

Part 3 Of 3:





A/T CONTROL COMPONENT LAYOUT
