Solar Sensor: Service and Repair

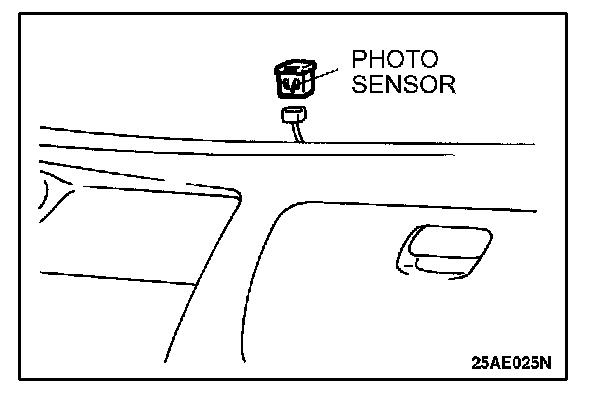

PHOTO SENSORREMOVAL AND INSTALLATION 1.
Remove the floor console panel assembly.
2.
Remove the ashtray
3.
Remove heater, ventilation and A/C front panel and disconnect all hoses and harness connections.
4.
Remove the clock.
5.
Remove the photo sensor.
