Fuel Tank Pressure Sensor: Service and Repair

FUEL GAUGE UNIT AND PUMP ASSEMBLY REPLACEMENT
1. Remove the rear seat cushion. (Refer to Rear Seat.)
2. Remove the protector.

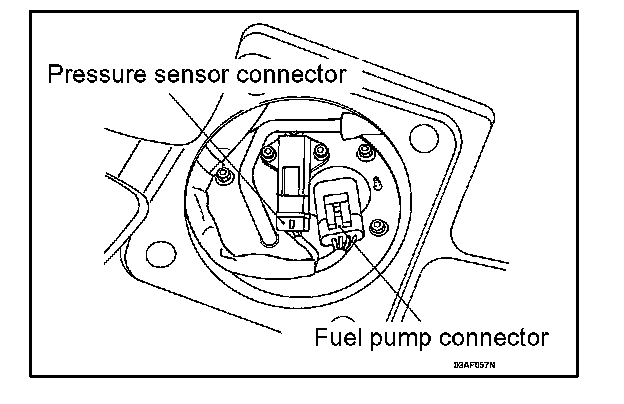

3. Disconnect the connectors from the fuel gauge unit and pump assembly, and then remove the fuel gauge unit.
4. When installing the fuel gauge unit and pump assembly, tilt the float at the end to the left and insert into the fuel tank.

NOTE: As there is a reservoir inside the fuel tank, if the fuel gauge unit and pump assembly is tilted to the right and inserted, the fuel gauge unit and pump assembly will touch the reservoir .

5. Align the packing positioning projections (locations indicated by arrows) with the holes in the fuel gauge unit and pump assembly.
