Fuel Tank Pressure Sensor: Testing and Inspection
FUEL TANK DIFFERENTIAL PRESSURE SENSOR CHECK 1.

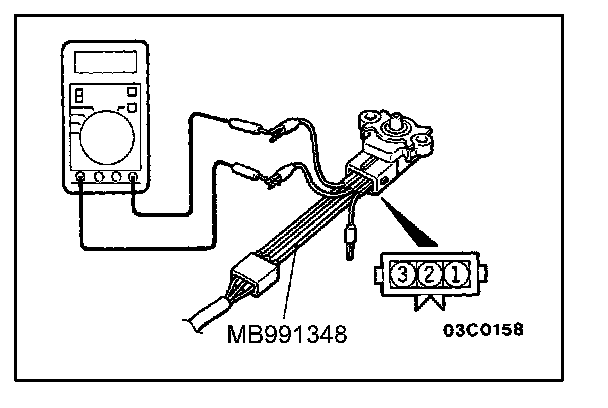

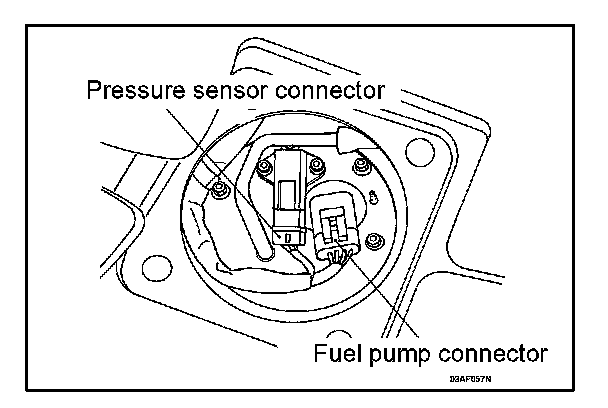

Disconnect the fuel tank differential pressure sensor connector and connect the special tool between the terminals of the disconnected connector.
2.
Turn the
ignition switch to ON and take readings of the following output voltage. Between terminals (1) and (2).
Standard value: 2.0 - 3.0 V
