Engine Controls - DTC P1610 Service Manual Addition

No.: TSB-06-13-003
DATE: February 28, 2006
MODEL: 2002-04 Diamante

SUBJECT:
DTC P1610 DIAGNOSIS PROCEDURES
-SERVICE MANUAL REVISION

TSB Revision: TSB-06-13-003

PURPOSE

Diagnosis procedures for Diagnostic Trouble Code (DTC) P1610, " Immobilizer System Malfunction," are missing in affected service manuals. This bulletin contains this information.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual pages.

AFFECTED VEHICLES

2002-2004 Diamante

AFFECTED SERVICE MANUALS

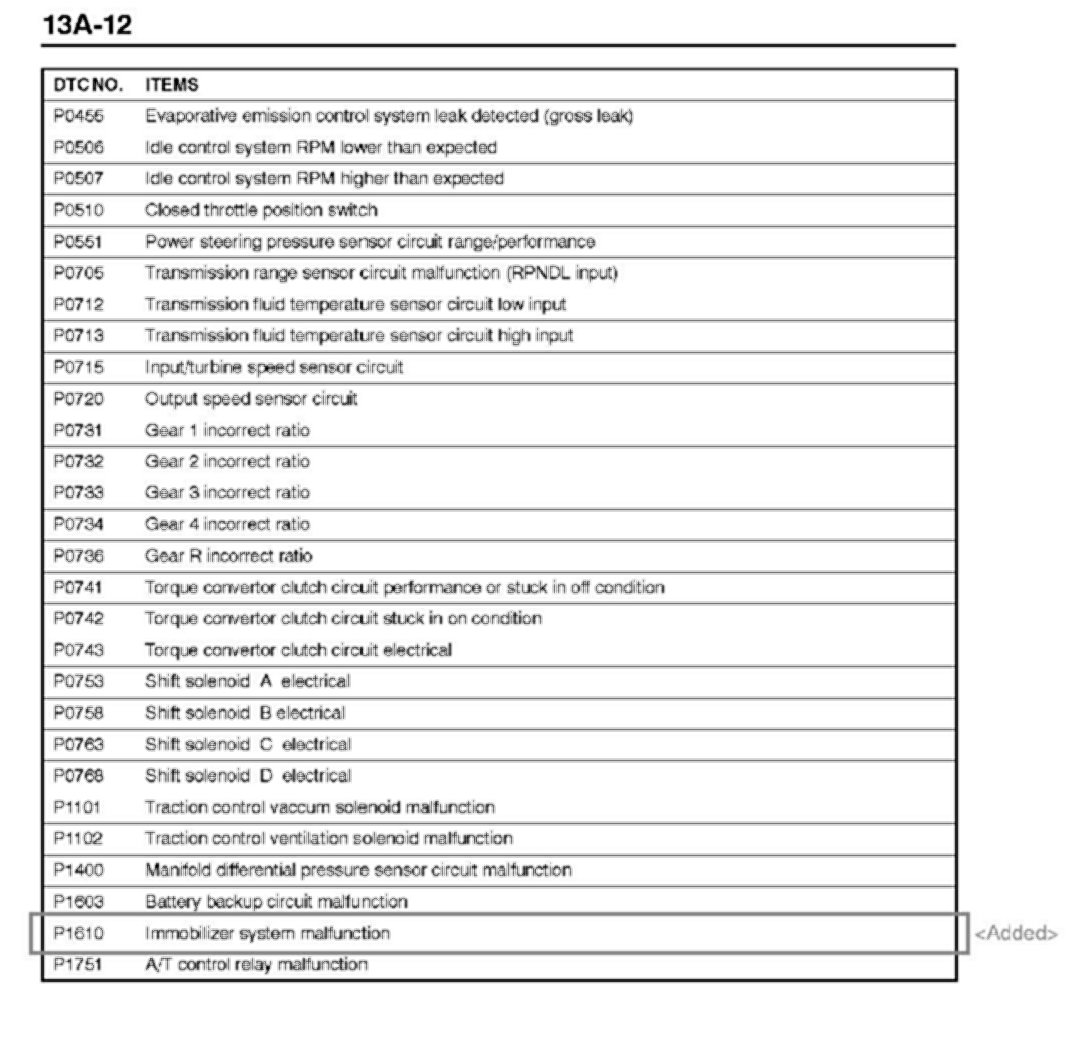

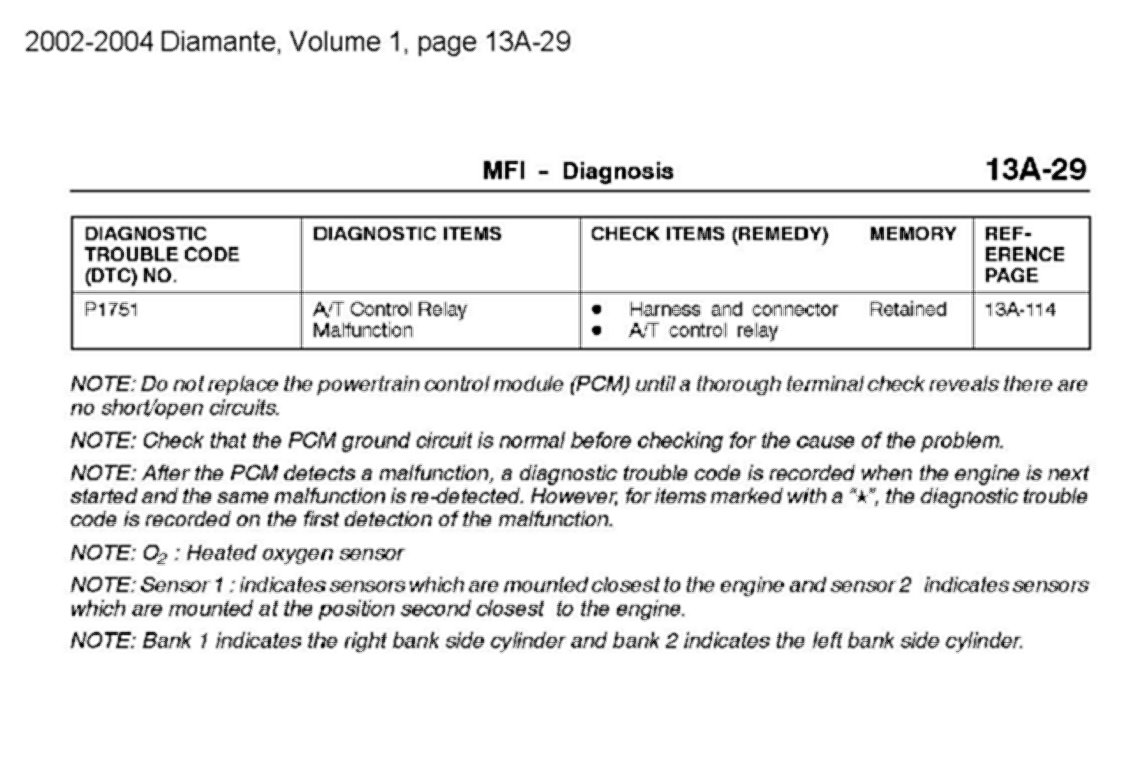

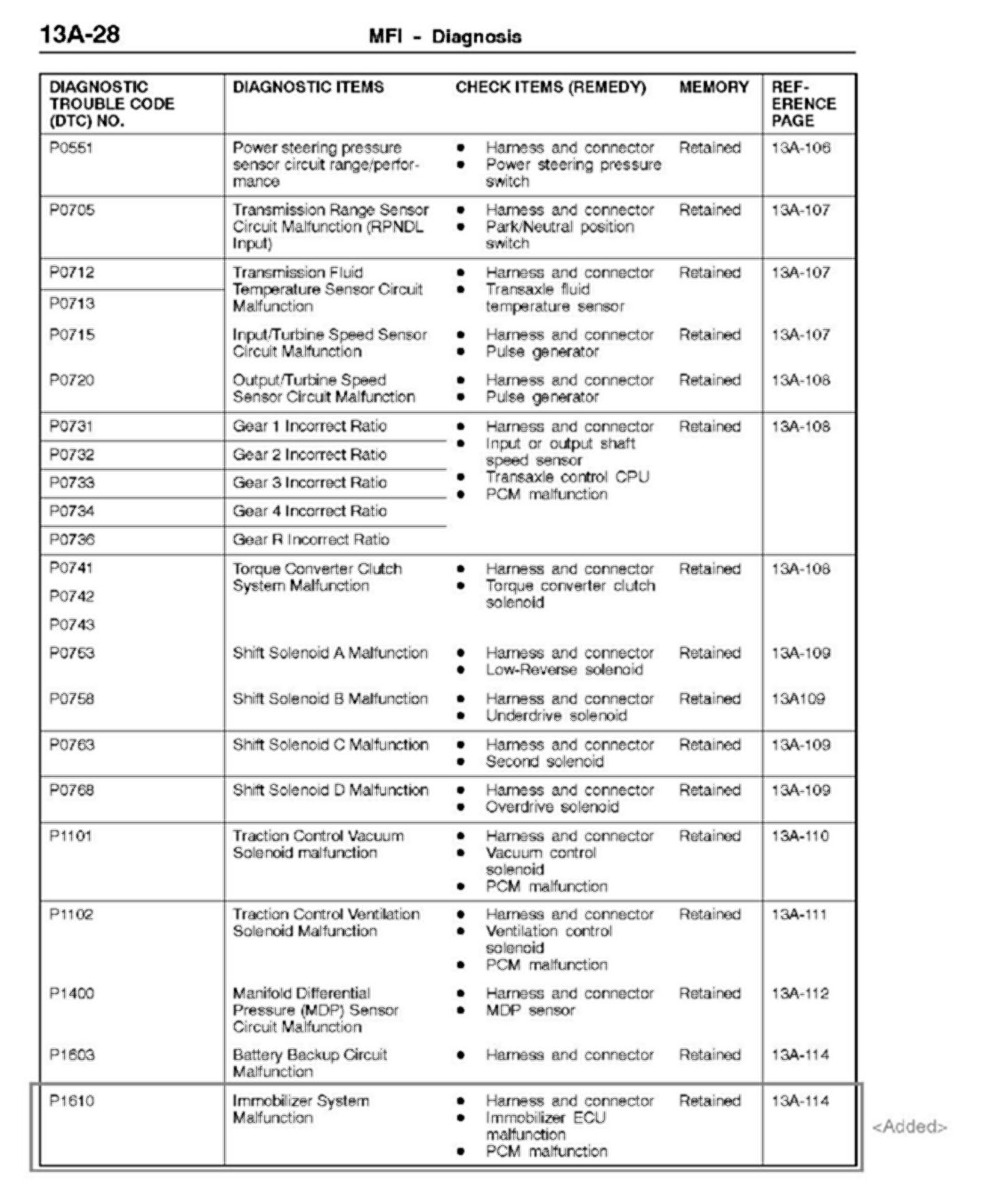

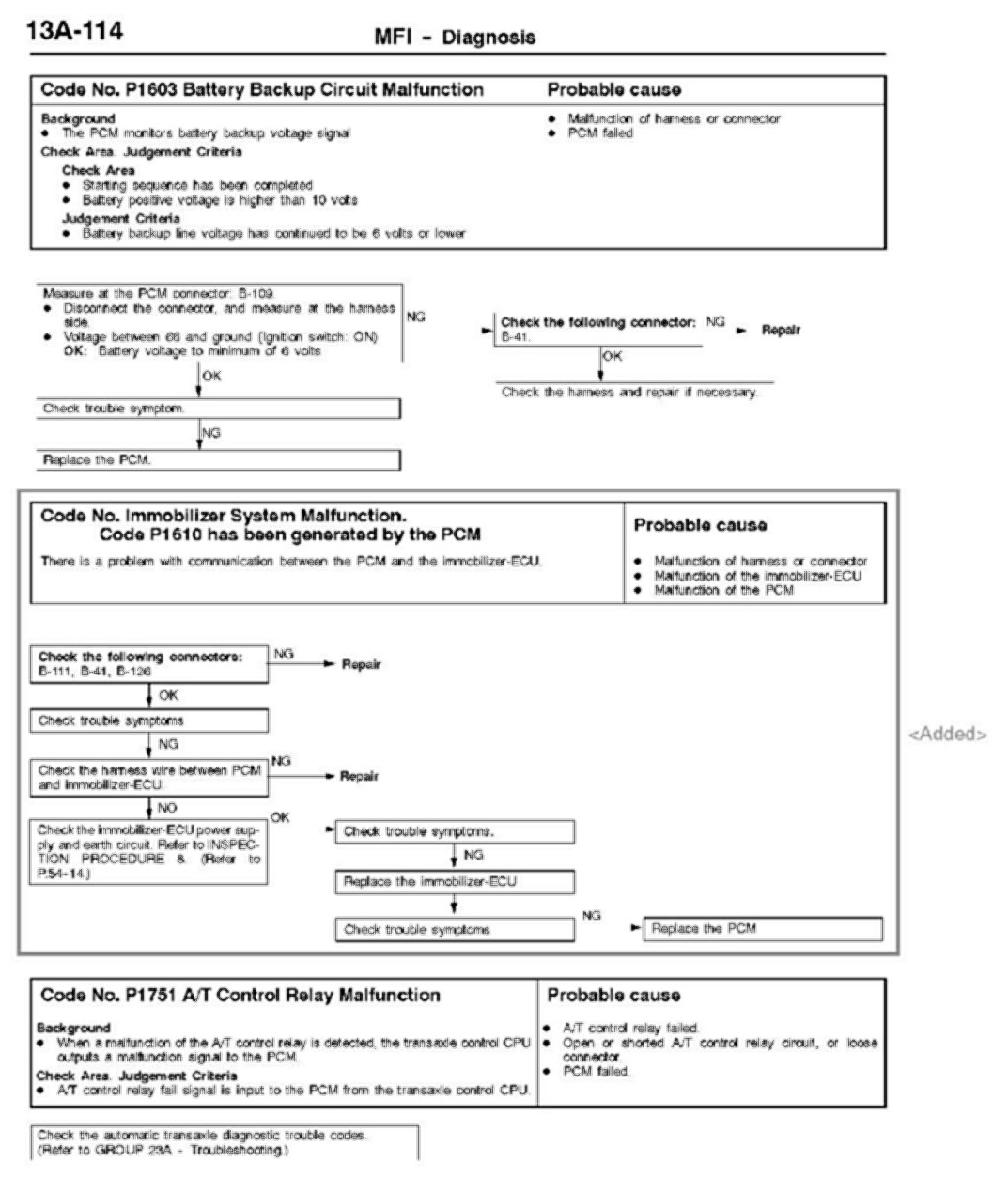

2002 Diamante, Volume 1, pages 13A-12, 13A-28, 13A-29, 13A-114





2003 Diamante, Volume 1, pages 13A-12, 13A-28, 13A-29, 13A-114








2004 Diamante, Volume 1, pages 13A-12, 13A-28, 13A-29, 13A-114
