Inspection Using Scan Tool Service Data and Actuator Testing

INSPECTION USING SCAN TOOL SERVICE DATA AND ACTUATOR TESTING

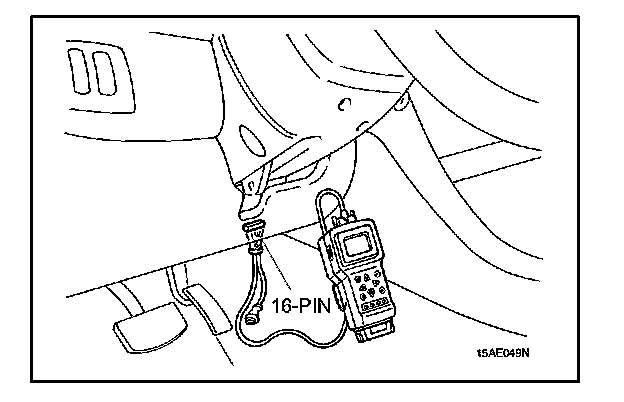

1. Carry out inspection by means of the data list and the actuator test function.
If there is an abnormality, check and repair the chassis harnesses and components.
2. After repairing, re-check using the scan tool and check to be sure that the abnormal input and output have returned to normal as a result of the repairs.
3. Erase the diagnostic trouble code memory.
4. Remove the scan tool.
5. Start the engine again and carry out a road test to confirm that the problem has disappeared.

NOTE: Refer to for Service Data.

NOTE: Refer to for Actuator Tests.
